1/2 in NPT Air Drying System Filter Regulator Combo - Effective

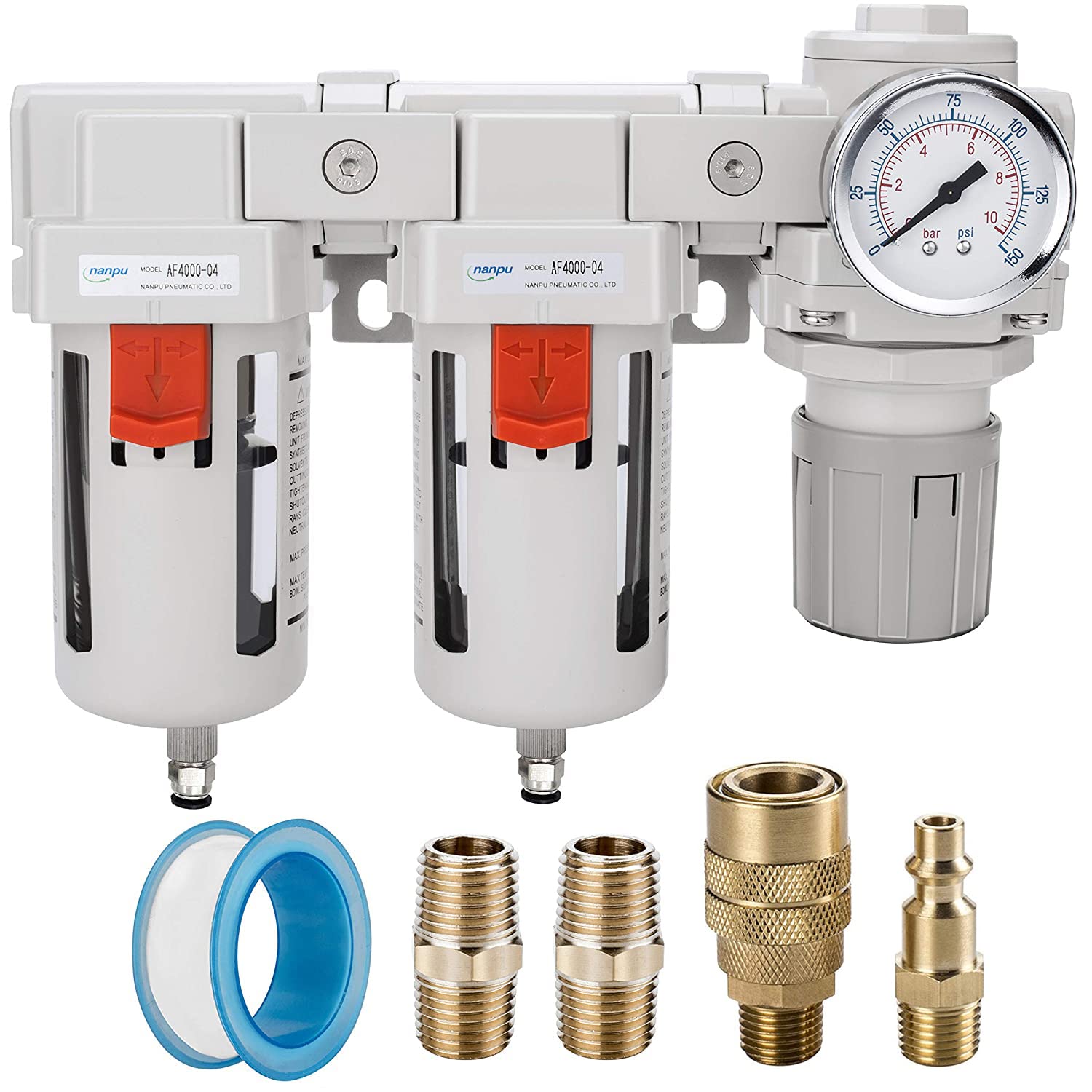

In this review the NANPU 1/2' NPT air drying system is evaluated for workshop and light industrial use; the bottom line is that it combines a dual-stage filtration and an integrated regulator to deliver noticeably cleaner, drier compressed air for handheld air tools and small shop lines. The unit's combination of a 5 micron brass particulate element and a 0.01 micron coalescing element is the single biggest reason to consider it, because it removes both visible particles and fine oil/water aerosols while offering a convenient piggyback, 1/2' NPT mounting form factor.

Key Features

• Dual filtration: A 5 micron particulate element and a 0.01 micron coalescing element remove dust, water droplets and oil mist for cleaner air to tools and equipment.
• Integrated regulator: The built-in pressure regulator lets users set and hold operating pressure from 0 to 125 psi for consistent tool performance.
• High flow capacity: The unit supports up to 105 SCFM at 90 psi, which is adequate for typical shop air tools and small compressor lines.
• Durable bowl and drain: Polycarbonate bowl with a metal guard and a semi-auto drain make routine moisture removal simple and visible.
• Complete installation kit: Ships with 1/2' NPT fittings, a pair of metal air coupler and plug, a 0-150 psi gauge with bracket and thread seal tape so it can be installed without extra parts.

Who It's For

This unit suits hobbyists, small automotive shops and light industrial users who need to protect air tools, spray guns and pneumatic equipment from water and particle contamination while keeping a regulated outlet pressure. The piggyback 1/2' NPT format and included fittings make it useful for inline installations on shop manifolds or at the point of use.

It is not intended for heavy industrial mains where extremely high continuous flow or stainless construction is required, and customers who must avoid any possibility of leakage at all costs should budget for a commercial-grade FRL with higher-end seals and metal bowls.

Pros & Cons

Pros

• Effective two-stage filtration captures both bulk particulates and very fine aerosols for cleaner tool air.
• Integrated regulator and included gauge simplify setup and maintain consistent outlet pressure.
• Good value and complete hardware package means fast installation without sourcing extra parts.

Cons

• Some customers report occasional leakage, particularly around fittings or the gauge, so careful assembly and thread seal are important.
• Build quality feedback is mixed; a few users experienced premature failure under heavy use.

Specifications

Connection	1/2' NPT piggyback
Particulate element	5 micron brass
Coalescing element	0.01 micron
Operating pressure	0-125 psi (max supply 145 psi)
Flow rate	105 SCFM at 90 psi (approx 3000 L/min)
Temperature range	41-140F (5-60C)
Included accessories	Semi-auto drain, polycarbonate bowl with metal guard, 0-150 gauge, coupler & plug kit, 2 x 1/2' NPT fittings, thread seal tape

Our Verdict

The NANPU 1/2' NPT air drying system is a practical, cost-conscious option for hobbyists and small shops that need better air quality and pressure control without buying a large FRL assembly. It delivers strong filtration performance and easy installation, but buyers should assemble fittings carefully and be aware that heavy commercial use may reveal durability limits.

Frequently Asked Questions

Will this unit remove oil from compressed air?
The coalescing element rated at 0.01 micron reduces oil aerosols and fine water droplets but may not replace specialized oil removal systems for very sensitive applications.

Is the included gauge adjustable and readable?
Yes, the 0-150 gauge and bracket are included and work with the built-in regulator to set outlet pressure between 0 and 125 psi.

Does it include fittings to mount directly to a compressor line?
Yes, the package includes two 1/2' NPT fittings, couplers, plug kit and thread seal tape for direct installation.
