1/2ft NPT Air Drying System - Double Filter Regulator Combo

In this review the NANPU DFR-04 1/2' NPT Air Drying System is evaluated as a straightforward, budget-friendly filtration and regulation module for light shop and garage compressed air setups. The single biggest reason to buy is its combination of a double 5 micron brass filter and an integrated regulator that delivers good contaminant removal and steady output pressure for air tools without a complex installation. It ships with the fittings and accessories needed to get running and is aimed at users who want a compact, ready-to-install filter/regulator without spending on industrial-grade components.

Key Features

• 1/2' NPT piggyback design: combines filter and regulator in one compact unit so installation uses less space and fewer pipe runs.
• Double 5 micron brass filter element: provides finer particulate capture and a longer service life than basic paper elements, reducing how often the element needs replacement.
• Wide operating range: supports supply pressure to 145 psi and operating pressure up to 125 psi, so it suits common shop air pressures and most hand air tools.
• High flow capability: rated 105 SCFM at 90 psi, allowing multiple small tools to be used without excessive pressure drop in typical hobby and light commercial setups.

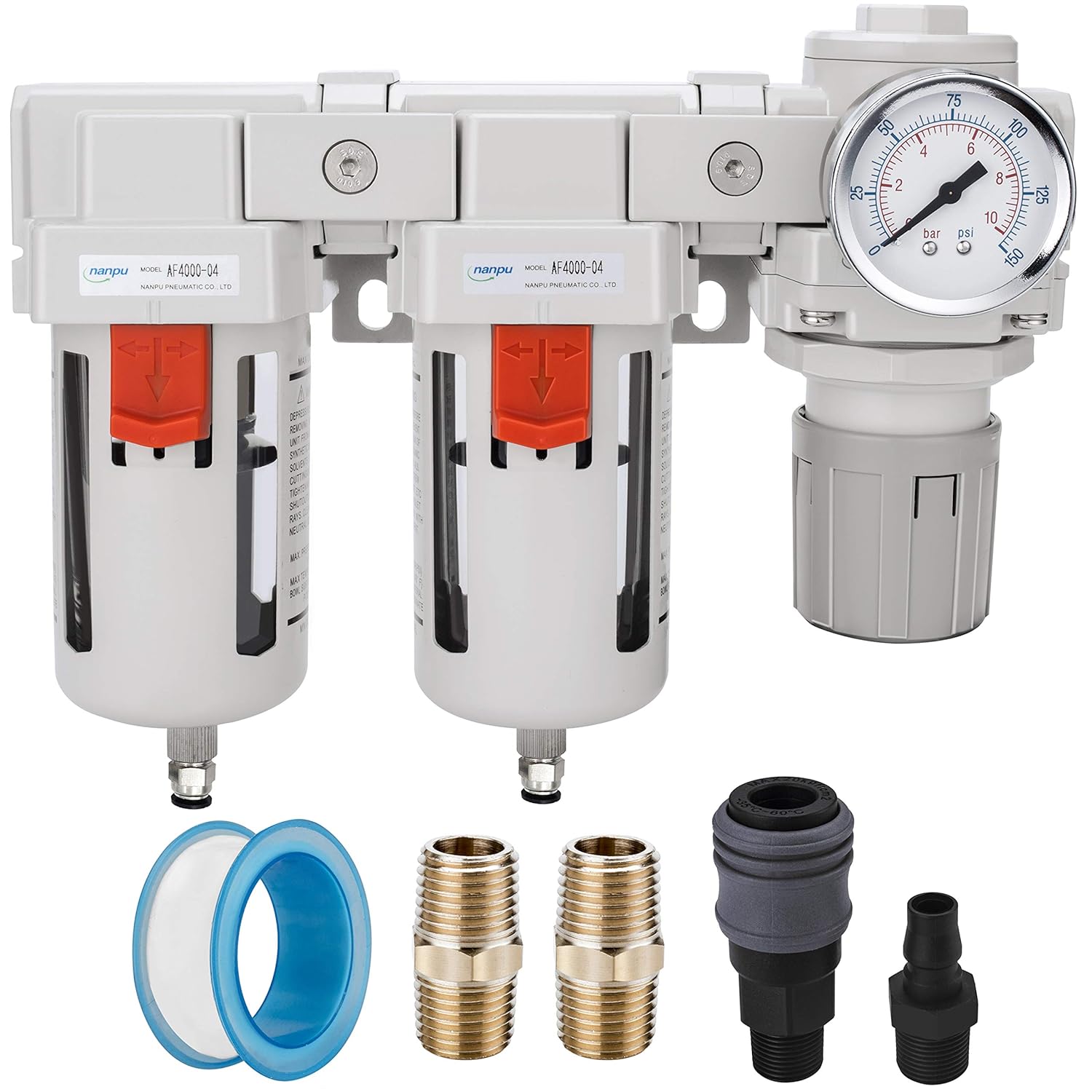

• Included accessories: arrives with a semi-auto drain, polycarbonate bowl with metal guard, gauge and bracket, coupler and plug kit, fittings and thread tape for a near-complete install.

Who It's For

This unit is a good match for hobbyists, small shops, and DIYers who run air ratchets, blow guns, spray guns, or other light pneumatic tools and want a single compact assembly to filter and regulate their air. The included couplers, fittings and guard make it easy to mount and start using right away.

It is less suited to heavy industrial environments where stainless steel construction, higher temperature tolerance, or absolute zero-leak performance are required. Buyers who must avoid any possibility of leakage around gauges or who need pressurized lubrication should consider industrial-grade FRLs instead.

Pros & Cons

Pros

• Good particulate filtration and longer element life thanks to the double brass 5 micron element.
• Integrated regulator with clear gauge simplifies setup and saves panel space.
• High flow rating supports multiple light tools without major pressure drop.
• Comes with drain, poly bowl guard, fittings, couplers and tape for quick installation.

Cons

• Some users report occasional leakage, notably around the pressure gauge, so careful sealing and testing are recommended after installation.
• Build quality feedback is mixed; it is fine for light duty but may not match heavier industrial FRLs.

Specifications

Connection Size	1/2' NPT
Filter Element	Double 5 micron brass
Max Supply Pressure	145 psi
Operating Pressure	0-125 psi
Flow Rate	105 SCFM (approx 3000 L/min) @ 90 psi
Temperature Range	41-140F (5-60C)
Included Accessories	Semi-auto drain, polycarbonate bowl with metal guard, 0-150 gauge & bracket, coupler & plug kit, 2 x 1/2' NPT fittings, thread seal tape

Our Verdict

The NANPU DFR-04 is a practical, cost-effective filter-regulator combo that suits hobbyists and small shops needing decent filtration and reliable pressure control without fuss. It offers strong value for the price with good flow and a reusable brass element, but buyers should check fittings and the gauge for leaks on arrival and avoid heavy industrial duty where tougher construction is needed.

Frequently Asked Questions

Does it include fittings to install right away?
Yes, the unit includes two 1/2' NPT fittings, a pair of coupler and plug kit, gauge and bracket, and thread seal tape for installation.

Is the filter element reusable?
The double brass 5 micron element is durable and designed for longer life and reuse compared with disposable paper elements.

Will it handle multiple air tools at once?
With a flow rating of about 105 SCFM at 90 psi, it can support multiple small tools in light shop use, but very heavy simultaneous demand may require a larger FRL.
