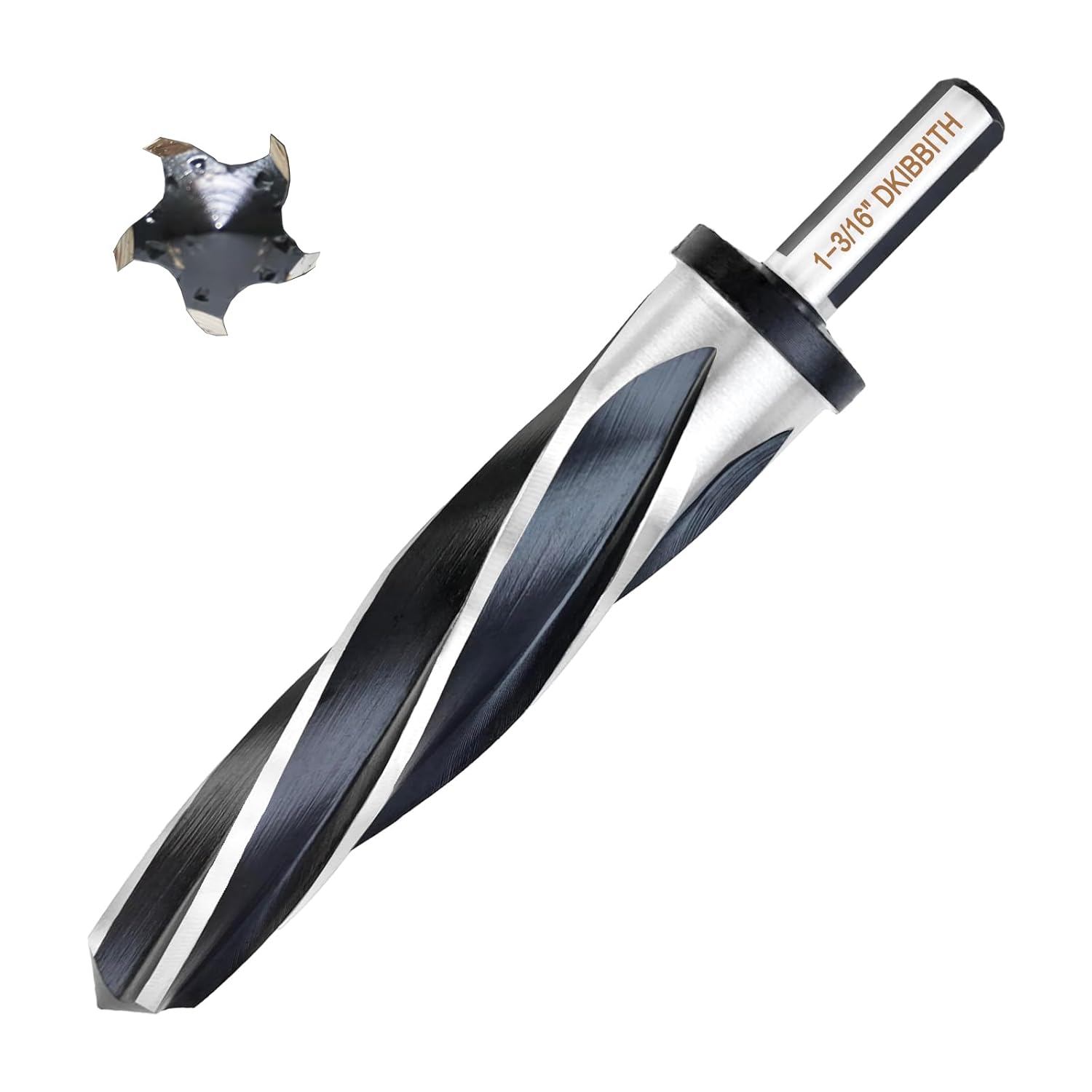

1-3/16ft Bridge Construction Reamer Drill Bit - Precise Hole Alignment

In this review the 1-3/16' bridge construction reamer is evaluated for tradespeople and DIYers who need to align or enlarge predrilled holes before installing bolts or rivets. The bottom line: it is a purpose-built tool that delivers precise diameter control and efficient chip evacuation thanks to its five spiral flutes and M2 high-speed steel construction, making it worth considering when accuracy and fit matter more than long-term edge retention.

Key Features

• Size and purpose: The 1-3/16' diameter is sized to align or enlarge predrilled holes so bolts and rivets seat evenly without wobble.
• Material: Built from M2 high-speed steel for toughness, the bit handles a range of metals and plastics while resisting heat during reaming tasks.
• Flute design: Five long tapped right-hand spiral flutes clear chips efficiently to maintain cutting action and reduce clogging in deeper holes.
• Shank and grip: The 1/2' round shank with three sides gives a secure chuck grip and reduces slippage during use in portable drills or pneumatic tools.
• Safe stop and taper: The tapered point and built-in safe stop help the bit enter imperfect holes steadily and prevent over-reaming.
• Versatility: Suitable for steel, alloy, aluminum, brass, copper, iron, PVC and other plastics for both metalworking and woodworking tasks.

Who It's For

This reamer suits bridge construction crews, steel erectors, mechanics working on trailers and trucks, and serious DIYers who frequently need to true up holes for fasteners. Users who value a clean, repeatable fit when installing conduit, bolts or rivets will appreciate the focused design and the 1-3/16' final size.

It is less suitable for those who expect a permanently razor-sharp cutting edge out of the box or for high-volume industrial production where carbide tooling and frequent re-sharpening cycles are required; some buyers reported the edge dulls faster than hardened carbide alternatives.

Pros & Cons

Pros

• Robust M2 HSS body offers good toughness for mixed-material reaming tasks.
• Five spiral flutes and fine grinding promote cleaner chips and steadier cuts in deep holes.
• Safe stop and tapered point improve accuracy entering imperfect predrilled holes.
• 1/2' three-side shank reduces slippage in standard chucks.

Cons

• Some users report the bit arrives not razor-sharp and may require sharpening for optimal life.
• Durability can be limited under heavy, continuous use compared with carbide reamers.

Specifications

Diameter	1-3/16' (30mm)
Material	M2 high-speed steel
Shank	1/2' round shank with 3-sides
Flutes	Five long tapped right-hand spiral flutes
Point	Tapered point with safe stop
Applications	Steel, alloy, aluminum, brass, copper, iron, plastic, PVC

Our Verdict

The 1-3/16' bridge construction reamer is a focused, value-oriented tool for trades and DIYers who need a precise hole alignment solution and effective chip clearance. It performs well for intermittent use on a wide range of materials, but those needing maximum edge life under heavy production loads should consider premium carbide options or plan to re-sharpen periodically. Overall it offers sensible capability at a practical price for field and workshop work.

Frequently Asked Questions

Can this reamer be used in an electric portable drill?
Yes; secure the 1/2' shank in the chuck and maintain steady pressure, reducing speed near final size for a smooth finish.

What materials can it ream?
It works on steel, alloy, aluminum, brass, copper, iron and plastics such as PVC, making it versatile for metalworking and woodworking tasks.

Does it arrive ready-to-use sharp?
Most units are functional out of the box, but some customers report edges that could benefit from light sharpening for longer life.
