1/30 HP 132 GPH 20 ft Lift Transparent Condensate Pump - Quiet Drain

In this review of the 1/30 HP 132 GPH 20 ft Lift Transparent Condensate Pump the bottom line is simple: this is a practical condensate removal solution for homeowners and small commercial sites that need quiet, visible, and reliable drainage from HVAC equipment. The reviewer found the pump useful where a compact unit with a safety switch and audible alarm is required, and appreciated the transparent tank for easy maintenance. It is not a professional-grade heavy duty unit, but it delivers good performance for common condensate problems.

Key Features

• Safety switch and alarm: An included safety switch wire lets the pump signal an HVAC system to shut down if overflow is likely and the built-in alarm alerts you when attention is needed.
• 20 ft max head: The pump can lift condensate up to 20 ft, making it suitable for typical basement or rooftop discharge runs from furnaces, boilers, and dehumidifiers.
• 132 GPH maximum flow: With a rated displacement of up to 132 gallons per hour at 0 ft height, it handles continuous drainage for many residential and light commercial systems.
• Durable motor design: Ceramic shafts, soft-start motor behavior, overheat protection, and a tail exhaust layout aim to reduce wear and extend service life.

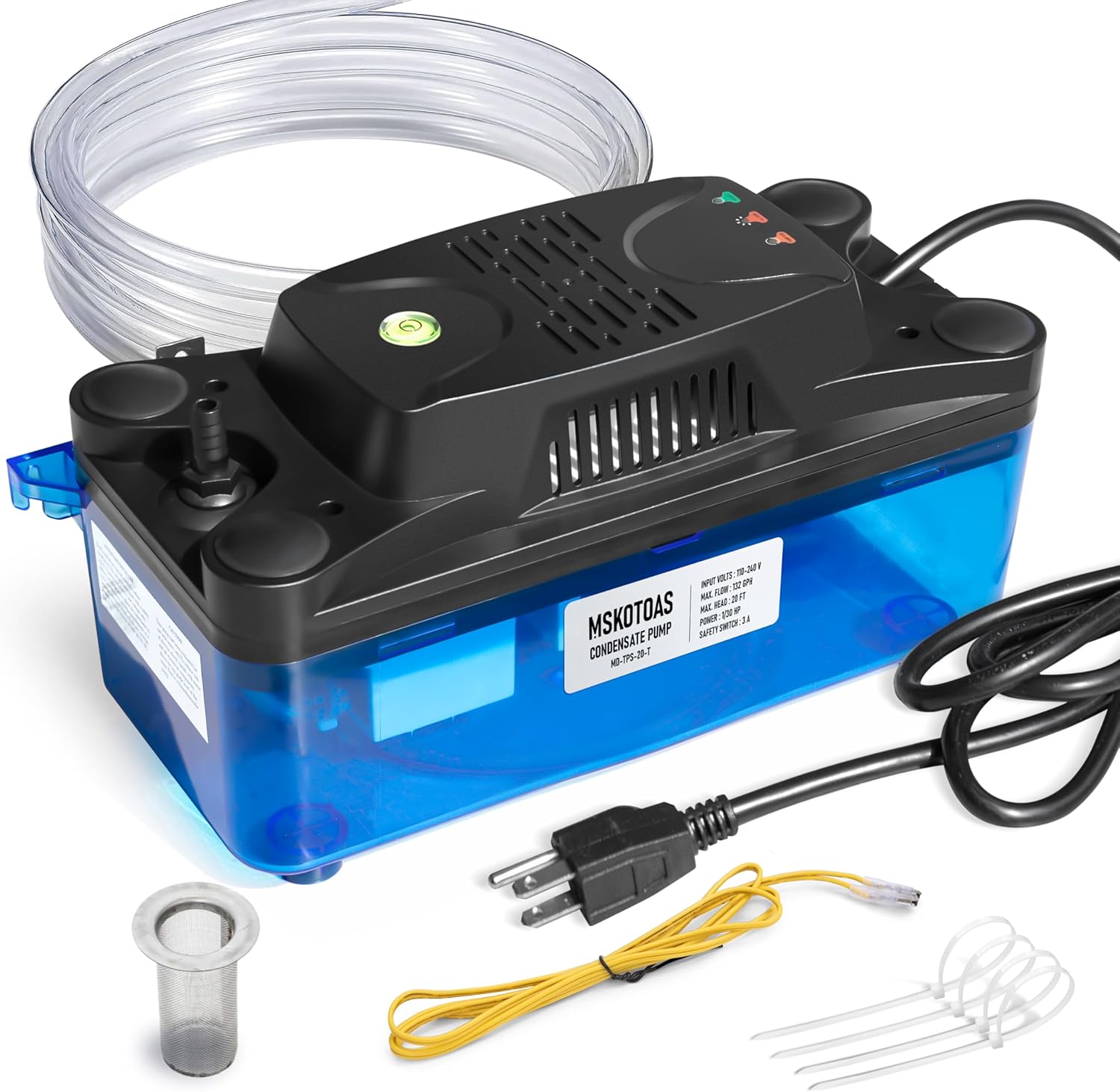

• Complete accessories: The box includes a 20 ft hose, four zip ties, a metal filter, and a safety switch wire so installation usually requires no extra parts.
• Transparent reservoir and quiet operation: The 0.6 gallon clear tank lets you visually inspect for debris while operating below 30 dB for low noise impact.

Who It's For

This pump is best for homeowners, small contractors, or maintenance staff who need a compact condensate pump for furnaces, boilers, dehumidifiers, ice makers, or small HVAC equipment and appreciate easy installation and a visible tank for quick checks. The included safety switch and alarm are useful where overflow could cause property damage or where an automatic shutdown interlock is desired.

Those needing high-capacity industrial pumping, very long continuous duty cycles, or specialist chemical resistance should look elsewhere; the unit is targeted at typical residential and light commercial applications rather than heavy industrial use.

Pros & Cons

Pros

• Quiet operation under 30 dB makes it unobtrusive in living or mechanical spaces.
• Transparent 0.6 gallon tank simplifies maintenance by letting you see dirt accumulation.
• Complete install kit with 20 ft tubing and safety switch wire reduces extra purchases.
• Built-in safety switch and audible alarm provide an extra layer of overflow protection.

Cons

• Some customers report mixed impressions of overall build quality, so expect variable long-term durability.
• 132 GPH is a strong flow at zero lift but output decreases with lift height, so very large systems may require a higher-capacity pump.

Specifications

Power	1/30 HP
Maximum flow	132 GPH (at 0 ft)
Maximum lift	20 ft
Reservoir	0.6 gallon transparent tank
Outlet	2/5 in O.D. barbed outlet with built-in check valve (fits 7/16 in to 2/5 in I.D. tubing)
Accessories	20 ft hose, 4 zip ties, metal filter, safety switch wire
Operation noise	Below 30 dB

Our Verdict

The 1/30 HP 132 GPH 20 ft Lift Transparent Condensate Pump is a sensible, cost-aware choice for residential and light commercial condensate drainage needs, offering useful safety features and easy visual maintenance. Its built-in alarm and safety switch plus included tubing make it good value for users who want straightforward installation and quiet operation, though buyers seeking rugged industrial capacity should consider higher-rated models.

Frequently Asked Questions

Can this pump be used with a dehumidifier?
Yes, it is suitable for dehumidifiers and similar appliances and includes multiple 1.1 in inlets for connections.

Does the unit include the discharge hose?
Yes, a 20 ft hose is included in the box along with zip ties and a metal filter.

What happens if the pump overflows?
The safety switch can signal an HVAC system to shut down and the built-in audible alarm will alert you to overflow risk.
