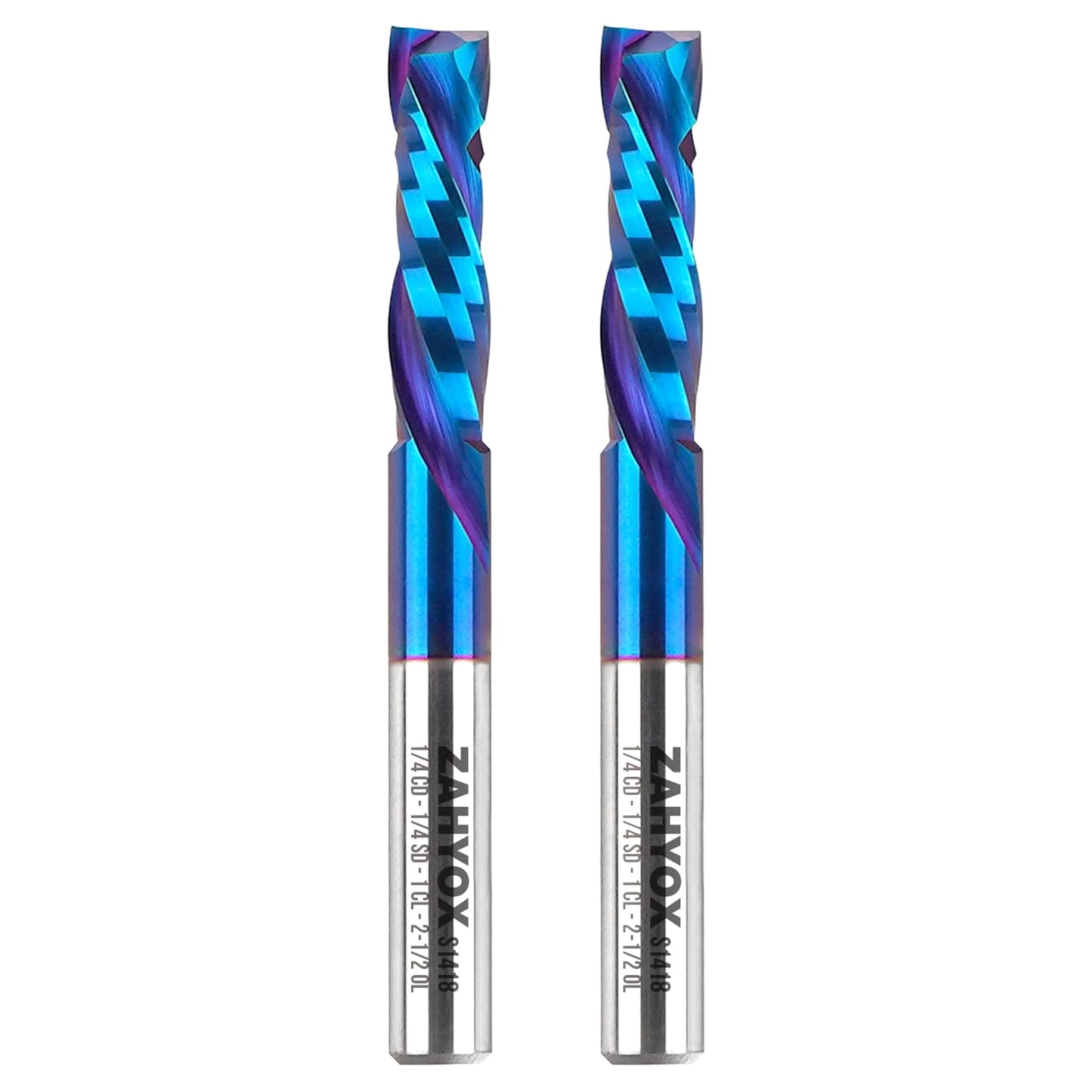

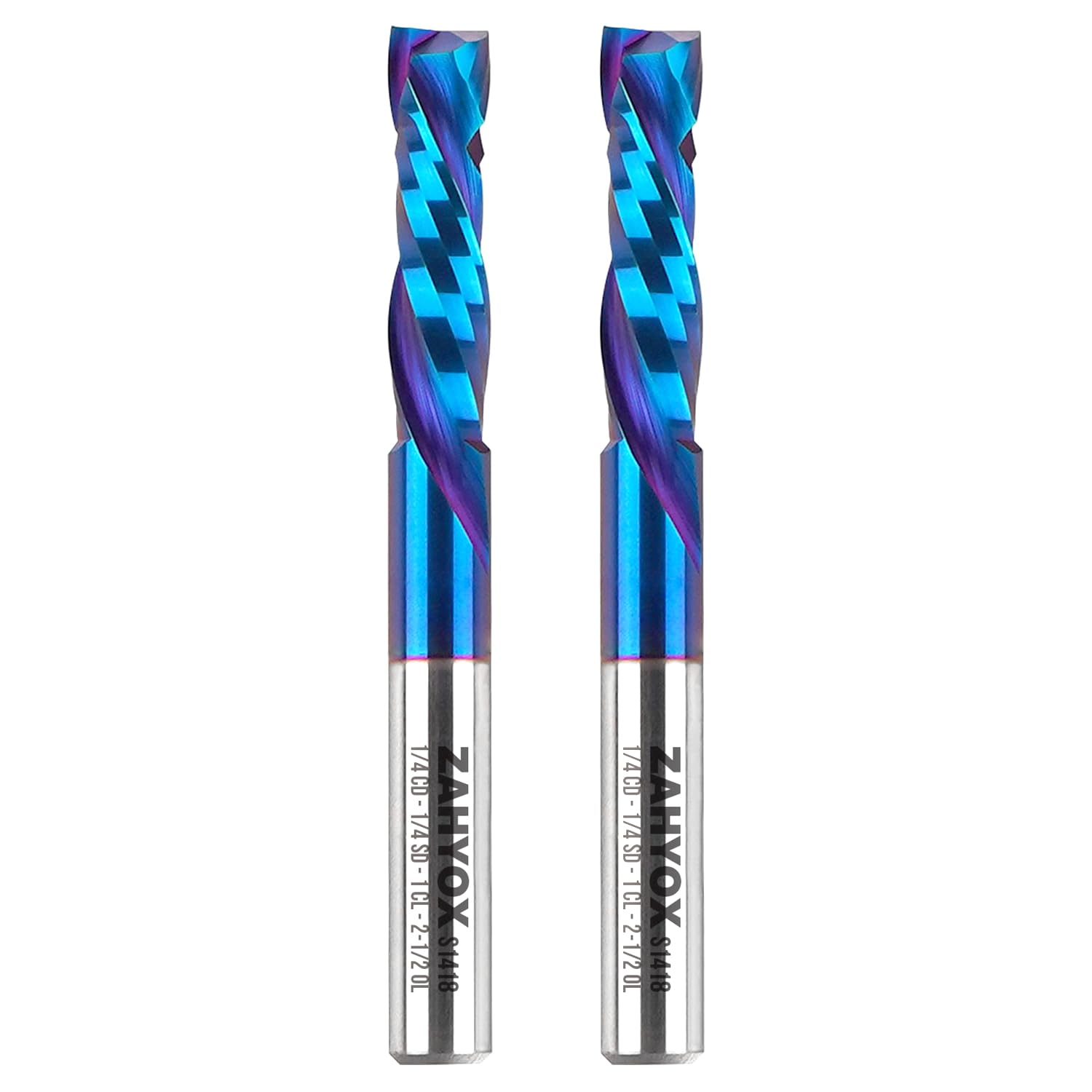

1/4 Inch Shank Compression Spiral Router Bit 2 Pack - Nano Coated

In this review of the 1/4 Inch Shank Compression Spiral Router Bit 2 Pack the bottom line is simple: it is aimed at woodworkers and CNC operators who need clean, tear-free cuts and long bit life. The review found the set especially suited for cutting hardwood, plywood and MDF where a compression spiral keeps both top and bottom edges clean. The two-pack, solid carbide construction and Nano Composite coating are the single biggest reasons to buy, delivering edge retention and consistent performance across long runs.

Key Features

• 2 Pack, 1/4 in shank: Having two identical bits on hand reduces downtime and lets a backup be ready when one bit needs sharpening or replacement.
• Compression spiral: The up-and-down flute geometry minimizes tear out on both faces of laminated or veneered panels for cleaner edges.
• Nano coated X-Series: The PVD Nano Composite coating increases hardness and lowers friction, helping the bit hold its edge longer during extended cuts.
• Solid carbide build: Made from WC-CO alloy, the carbide body provides rigidity and consistent cutting performance across different machines and materials.
• 1 in cutting length: One inch of cutting length balances reach with stability, making it suitable for most panel and edge work on CNC machines and routers.
• Tested geometry: The design was iterated and tested to strike a practical balance between tool life and cutting speed for wood applications.

Who It's For

This set is best for hobbyists, cabinetmakers and small shop CNC operators who frequently mill plywood, MDF, veneered panels and hardwood edges and want tidy top and bottom finishes without sanding. The two-flute compression design is particularly useful for laminated sheet goods where preventing blowout is a priority.

Those who should look elsewhere include users needing very long cutting lengths or specialty profiles; the 1 in cutting length and straight compression geometry are not intended for deep plunge work or complex shaping where longer or shaped cutters are required.

Pros & Cons

Pros

• Clean, low tear-out cuts on laminated panels thanks to the compression spiral.
• Longer tool life and smoother feeds due to the high-hardness Nano Composite coating.
• Consistent performance from solid carbide construction and factory-controlled production.
• Value of a two-pack reduces interruptions and cost per cut for regular users.

Cons

• Cutting length is limited to 1 in, so it is not suited for deep routing or full-depth plunges beyond that depth.
• As a straight compression bit, it is not intended for specialized shaping or profiling tasks.

Specifications

Cutting diameter	1/4 in
Shank	1/4 in
Cutting length (CL)	1 in
Overall length (OVL)	2-1/2 in
Flutes	2
Geometry	Compression (up and down) spiral
Coating / Material	Nano Composite Ti-Al-Si-N coating on WC-CO alloy

Our Verdict

The 1/4 Inch Shank Compression Spiral Router Bit 2 Pack is a practical choice for woodworkers and small CNC shops focused on panel work and edge finishing; the compression geometry and nano coating deliver cleaner cuts and extended tool life, making the set good value for routine woodcutting tasks.

Frequently Asked Questions

Will this bit prevent tear out on plywood?
Yes, the compression spiral is designed to compress fibers at the cut entry and exit to reduce tear out on plywood and laminated panels.

Is the coating durable for extended runs?
The Nano Composite PVD coating increases hardness and lowers friction, which helps the bit maintain edge life during longer production runs.

Can I use this for deep plunge cuts?
Not ideal; the bit has a 1 in cutting length and is best for through cuts and panel trimming rather than deep plunge milling.
