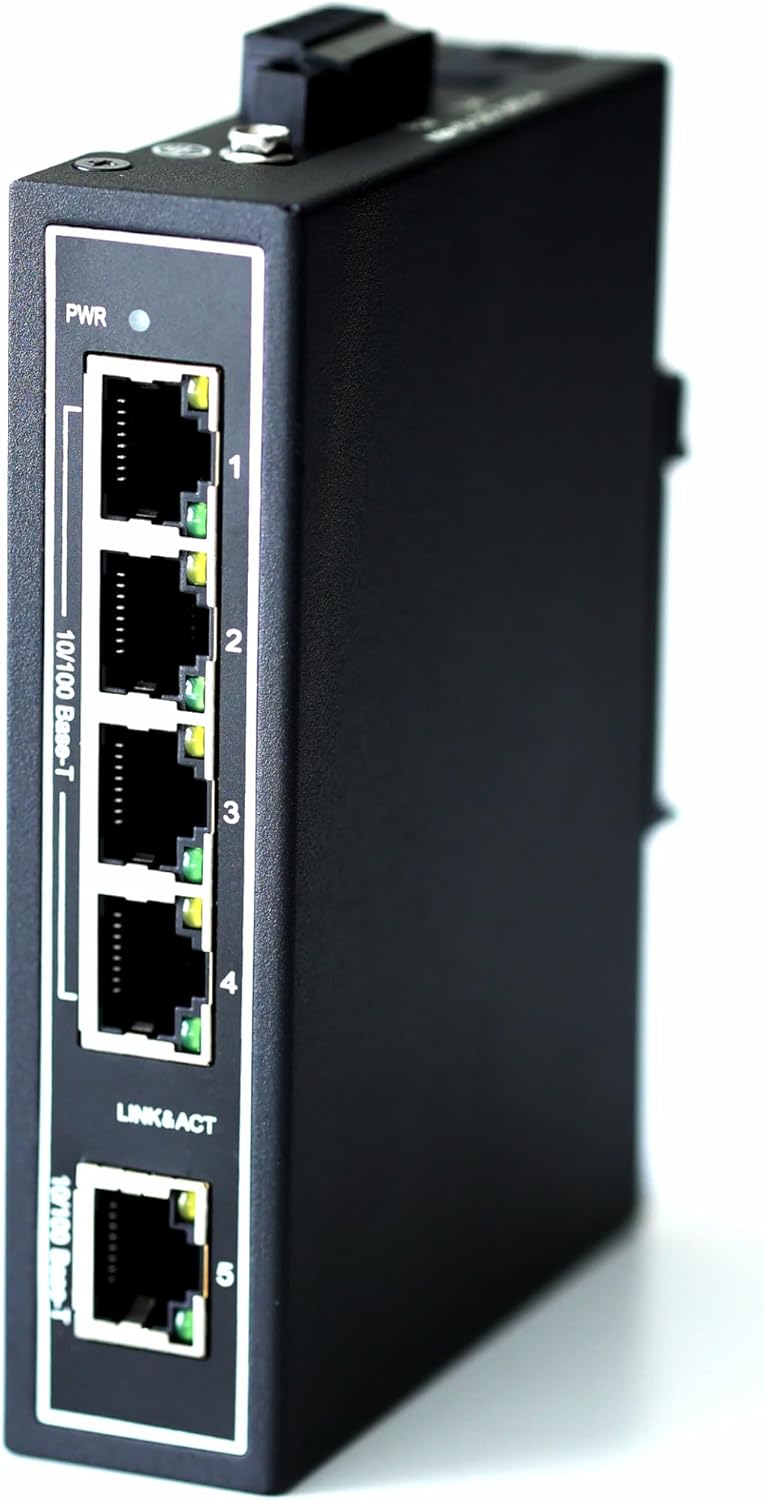

10/100Mbps Unmanaged 5-Port Industrial Ethernet Switch - Durable DIN

Our review of this compact industrial switch finds it best suited to technicians and integrators who need a simple, rugged network extender rather than a feature-packed managed device. The WDH-5ET-DC delivers reliable 10/100Mbps connectivity in a small IP30-rated metal housing with DIN rail and wall mounting, and its biggest selling point is consistent performance in harsh conditions thanks to its -30 to +75C operating range and multiple safety certifications. For anyone wiring up small control cabinets or adding a few Ethernet endpoints on factory floors, its plug-and-play simplicity and low power draw make day-to-day use hassle-free.

Key Features

• Compact DIN-mount design: The built-in bracket and IP30 chassis let installers mount the switch inside control cabinets or onto DIN rails without extra hardware.
• 5-port 10/100Mbps auto-negotiation: Each port supports automatic MDI/MDI-X crossover so devices can be connected directly without crossover cables.
• Wide DC input range: The unit accepts 12/24/36/48V DC via a terminal block and includes a DC-jack pigtail and ground cables for flexible power options.
• Industrial temperature tolerance: Rated to operate from -30 to +75C, it holds link stability where consumer switches would fail in extreme environments.
• Low power consumption: Energy-Efficient Ethernet design keeps power draw below 1 watt, reducing heat and load on constrained power supplies.
• Safety certifications: The switch carries UL, cUL, CE, FCC, PSE, REACH and RoHS credentials, offering peace of mind for compliance-driven installations.

Who It's For

This switch is aimed at field engineers, automation installers, and small industrial sites that need a no-nonsense, unmanaged Ethernet solution. It is ideal when a few wired ports are required for sensors, HMIs, PLCs, or cameras and where DIN rail mounting and temperature resilience matter more than advanced switching features.

It is not the right choice for network administrators who need managed features such as VLANs, QoS controls, remote monitoring, or gigabit uplinks. For larger networks with heavy throughput demands, a managed or higher-speed switch would be more appropriate.

Pros & Cons

Pros

• Reliable, plug-and-play 10/100Mbps performance for small industrial networks.
• Robust mechanical construction with DIN rail/wall-mount flexibility and broad temperature tolerance.
• Very low power consumption and a wide DC input range easing integration with existing power systems.
• Multiple safety and environmental certifications provide installation confidence.

Cons

• Unmanaged feature set means no VLAN, SNMP, or advanced traffic controls for larger or segmented networks.
• Ports are limited to 10/100Mbps which may constrain high-bandwidth devices like some modern IP cameras.

Specifications

Our Verdict

The WDH-5ET-DC is a solid, value-oriented industrial switch for small installations that need dependable wired ports and durability rather than advanced network management. Its combination of DIN rail mounting, wide DC input, low power draw, and broad certification makes it a practical choice for field deployments and control cabinets where simplicity and reliability are the priorities.

Frequently Asked Questions

Does this switch require a separate power supply?
No, it does not include a dedicated external power supply; it accepts 12/24/36/48V DC via the terminal block and ships with a DC-jack pigtail and ground cables for connection.

Can it operate outdoors or in extreme heat?
It is rated for -30 to +75C and built in an IP30 metal housing, suitable for many harsh indoor industrial environments but not for direct outdoor exposure without an enclosure.

Is this a managed switch with VLAN support?
No, this is an unmanaged 5-port switch focused on plug-and-play operation and does not provide VLAN, SNMP, or other managed features.
