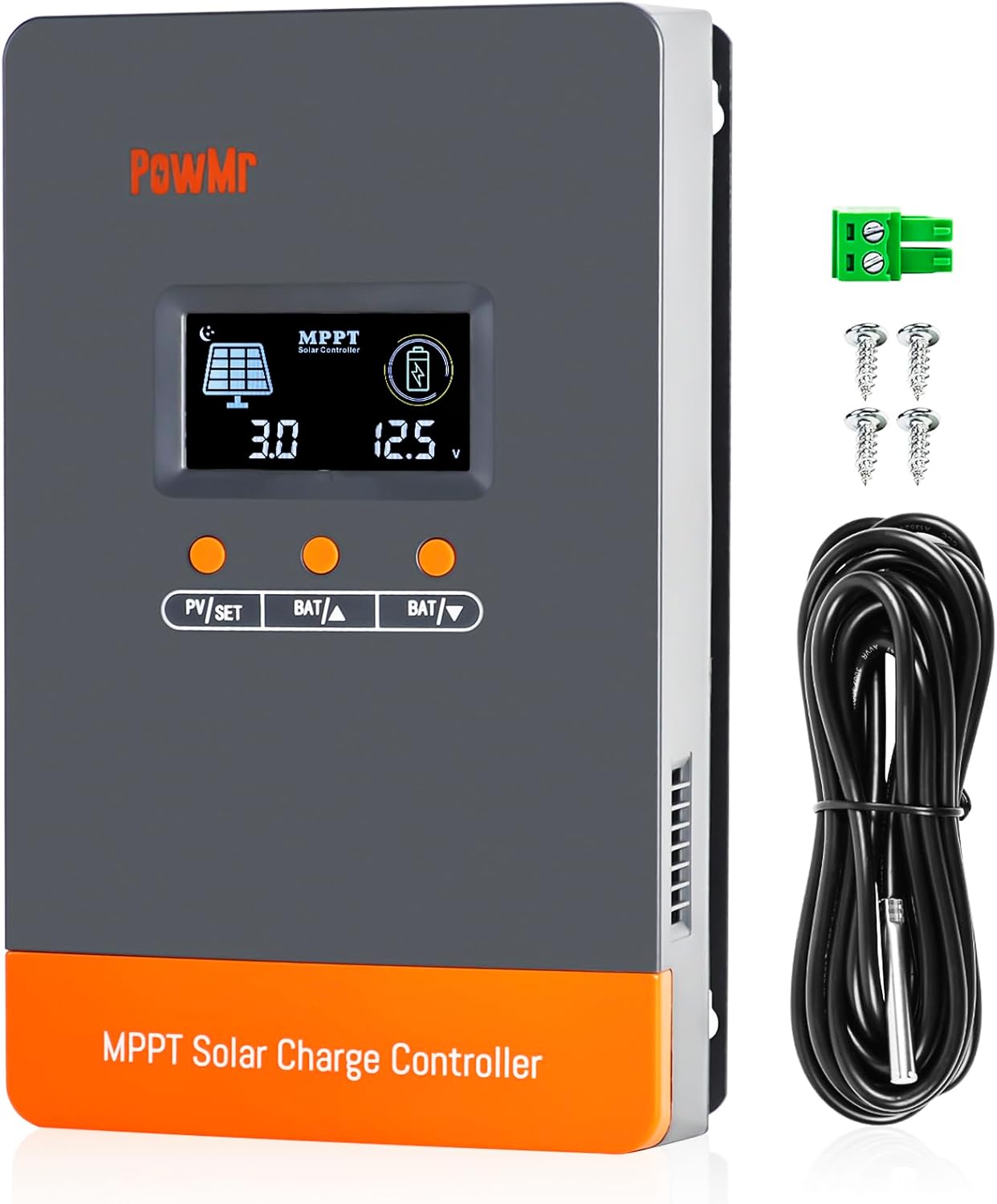

100A MPPT Solar Charge Controller 12V/24V/48V Auto - High Capacity

In this review the 100A MPPT Solar Charge Controller is evaluated as a heavy-duty option for large off-grid and mobile power systems. Its single biggest selling point is the ability to parallel up to 12 units (and even mix with a compatible 80A model) to scale charging capacity and improve system resilience. The controller's advanced MPPT tracking, robust die-cast aluminum housing with turbofan cooling, and broad battery compatibility make it a practical choice for RVs, boats, commercial solar arrays and backup power installations where sustained high current and flexible configuration matter.

Key Features

• Parallel Expansion: Supports up to 12 controllers in parallel to multiply system current capacity and simplify maintenance on large arrays.
• Broad Voltage Support: Works with 12V, 24V, 36V or 48V battery banks and accepts PV input voltages up to 160V for flexible panel configurations.
• High PV Power Handling: Suggested PV power scales with battery voltage, allowing up to 4800W input on a 48V system for substantial charging throughput.
• Dual Cooling: Die-cast aluminum body plus an upgraded turbofan that runs only above ~45C ensures efficient heat dissipation and quieter operation in vehicles and enclosed spaces.
• Battery Compatibility: Pre-set charging profiles for sealed, gel, flooded and lithium chemistries with user-programmable absorption, float and cutoff settings for precise battery care.
• Advanced MPPT Tracking: MPPT algorithm delivers tracking efficiency of at least 99% and peak conversion efficiency up to 97% for better energy harvest.

Who It's For

This controller is aimed at installers and owners of larger off-grid systems, RV and marine users, and small commercial sites that need high continuous current and the option to scale by paralleling controllers. It is especially useful where space for many panels is available and battery banks run at 12V to 48V.

Those with small single-panel hobby systems or users who need very simple plug-and-play setup without any configuration may prefer a lower-amp, simpler PWM or small MPPT model; also, operators charging lithium at subzero temperatures should take care because lithium charging below 0C is not recommended.

Pros & Cons

Pros

• High scalability with up to 12 controllers in parallel to meet large system demands.
• Sturdy die-cast aluminum construction and quiet turbofan cooling keep temperatures under control.
• Comprehensive battery support and programmable charging parameters suitable for lead-acid and lithium chemistries.
• High MPPT tracking accuracy and good conversion efficiency for improved energy capture.

Cons

• Some users report mixed experiences with voltage regulation and setup instructions, so initial configuration may require care.
• Lithium charging is disabled below 0C, which limits use in cold climates without battery thermal management.

Specifications

Model Current	100A
Battery Systems	12V, 24V, 36V, 48V selectable
Max PV Input Voltage	Up to 160V
Suggested PV Power	12V: 1200W; 24V: 2400W; 36V: 3600W; 48V: 4800W
Parallel Support	Up to 12 controllers (compatible with an 80A model)
Cooling	Die-cast aluminum housing with turbofan (activates >45C)
Battery Types	Sealed, Gel, Flooded, LiFePO4, Lithium-Ion (user programmable)

Our Verdict

The 100A MPPT controller is a strong choice for larger off-grid and mobile systems that need high continuous current and easy scaling by paralleling units. Its combination of efficient MPPT tracking, broad voltage and battery support, and robust cooling represents good value for installers and advanced DIYers who can manage setup. Those expecting a no-configuration, small-system controller should consider simpler alternatives.

Frequently Asked Questions

Can multiple controllers be paralleled?
Yes. Up to 12 units can be connected in parallel to increase system capacity, and it can be paralleled with the compatible 80A model.

Is it safe to use with lithium batteries?
Yes. It supports lithium chemistries with preset profiles and programmable parameters, but avoid charging lithium below 0C.

What cooling does it use?
The unit uses a die-cast aluminum case for passive cooling plus a turbofan that engages above about 45C for active cooling.
