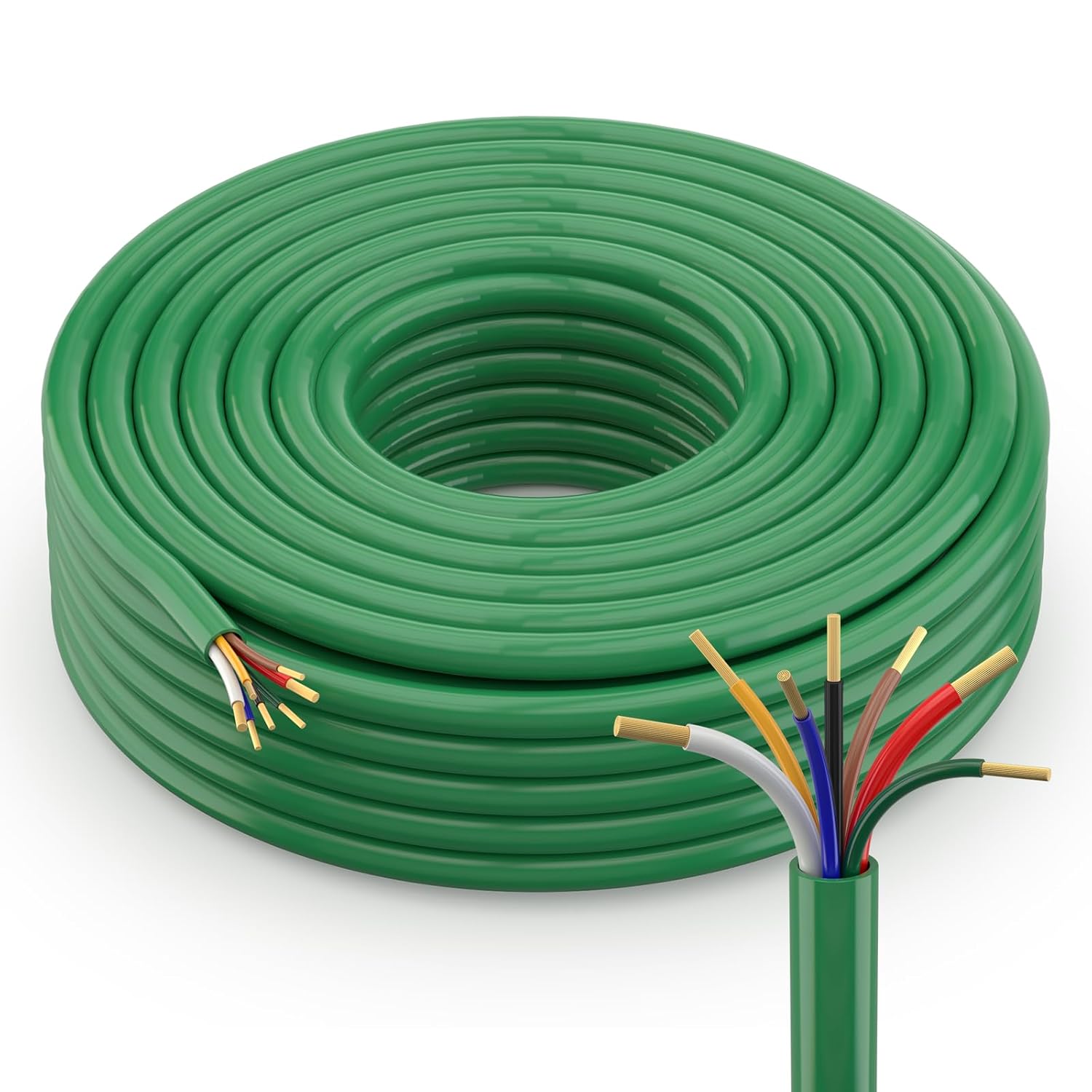

100FT 7 Way Trailer Wire Multi Gauge 10/2 12/1 14/4 - Durable RV

In this review of the 100FT 7 Way Trailer Wire multi gauge harness, the bottom line is straightforward: it is a practical, heavy duty replacement cable for RV trailers and tow vehicles that need a long, color coded 7-conductor lead. The reviewer found the cable most useful for wiring LED lights, running auxiliary power and replacing worn 7-way connections because it combines multiple gauges in one flexible green jacket and meets common RV conductor arrangements; its biggest selling point is the long 100ft length paired with weatherproof, temperature-tolerant construction.

Key Features

• Multi gauge conductors: Four 14 AWG wires, two 10 AWG wires and one 12 AWG wire provide the right mix of circuits for lights, brakes and auxiliary power without needing separate cables.
• Color coded wiring: Each conductor is individually color coded so diagnosing and installing turn signals, brake lights, reverse and power circuits is faster and less error prone.
• Long 100ft length: A full 100ft run lets installers route from the tow vehicle to the rear of long trailers or RVs without splicing extra sections.
• Weatherproof jacket: The green PVC outer sheath is rated for -20C to +105C and protects the stranded CCA conductors from outdoor exposure and road conditions.
• 7-way replaceable core: The cable is designed for standard 7-conductor trailer connections, making it compatible with common 7-way sockets and plugs used on RVs and caravans.

Who It's For

This cable is aimed at RV owners, caravan hobbyists and trailer repairers who need a single, tidy harness to replace or extend a 7-way connection and who want the convenience of multiple gauges in one assembly. It is especially useful for projects that include LED lighting and auxiliary power runs where a mix of 14, 12 and 10 gauge conductors is needed.

Users who require pure copper conductors for maximum conductivity or those working on high current, continuous-duty circuits beyond typical trailer auxiliary loads should consider a different cable type. Also, installers who prefer individual conduit routing rather than a bundled harness may want alternate wiring solutions.

Pros & Cons

Pros

• Color coded conductors make identification and connection fast during installation.
• 100ft length eliminates the need for multiple splices on longer trailers and RVs.
• Durable green PVC jacket and temperature rating from -20C to +105C help resist weathering and seasonal extremes.
• Mixed gauges in one cable cover lighting, brakes and auxiliary power needs without separate cables.

Cons

• Conductors are stranded CCA (copper-clad aluminum) rather than solid copper, which can affect conductivity in some high-current uses.
• The bundled harness format may be less convenient for custom routing inside tight conduit runs.

Specifications

Length	100ft
Conductors	7-way replaceable core, 7 individually jacketed wires
Wire gauges	4 x 14 AWG, 1 x 12 AWG, 2 x 10 AWG
Conductor type	Stranded CCA (copper-clad aluminum)
Jacket color	Green PVC sheath
Temperature range	-20C to +105C
Typical uses	Trailer lights, brake lights, turn signals, reverse lights, auxiliary power

Our Verdict

This 100ft 7-way trailer wire harness is a solid, cost-conscious choice for RV owners and trailer technicians who need a long, all-in-one replacement or extension cable with clear color coding and mixed gauges for lights and auxiliary circuits. It is good value when weather resistance and length matter, though buyers wanting the highest conductivity should choose a pure copper alternative.

Frequently Asked Questions

Is this cable suitable for RV lighting?
Yes. The mixed gauge conductors and color coding are appropriate for LED lights, turn signals and taillights on trailers and RVs.

Can this replace a standard 7-way trailer cable?
Yes. It is designed as a 7-conductor replacement harness compatible with standard 7-way connections.

What temperatures will the jacket tolerate?
The green PVC jacket is rated for use from -20C up to +105C, making it suitable for a wide range of climates.
