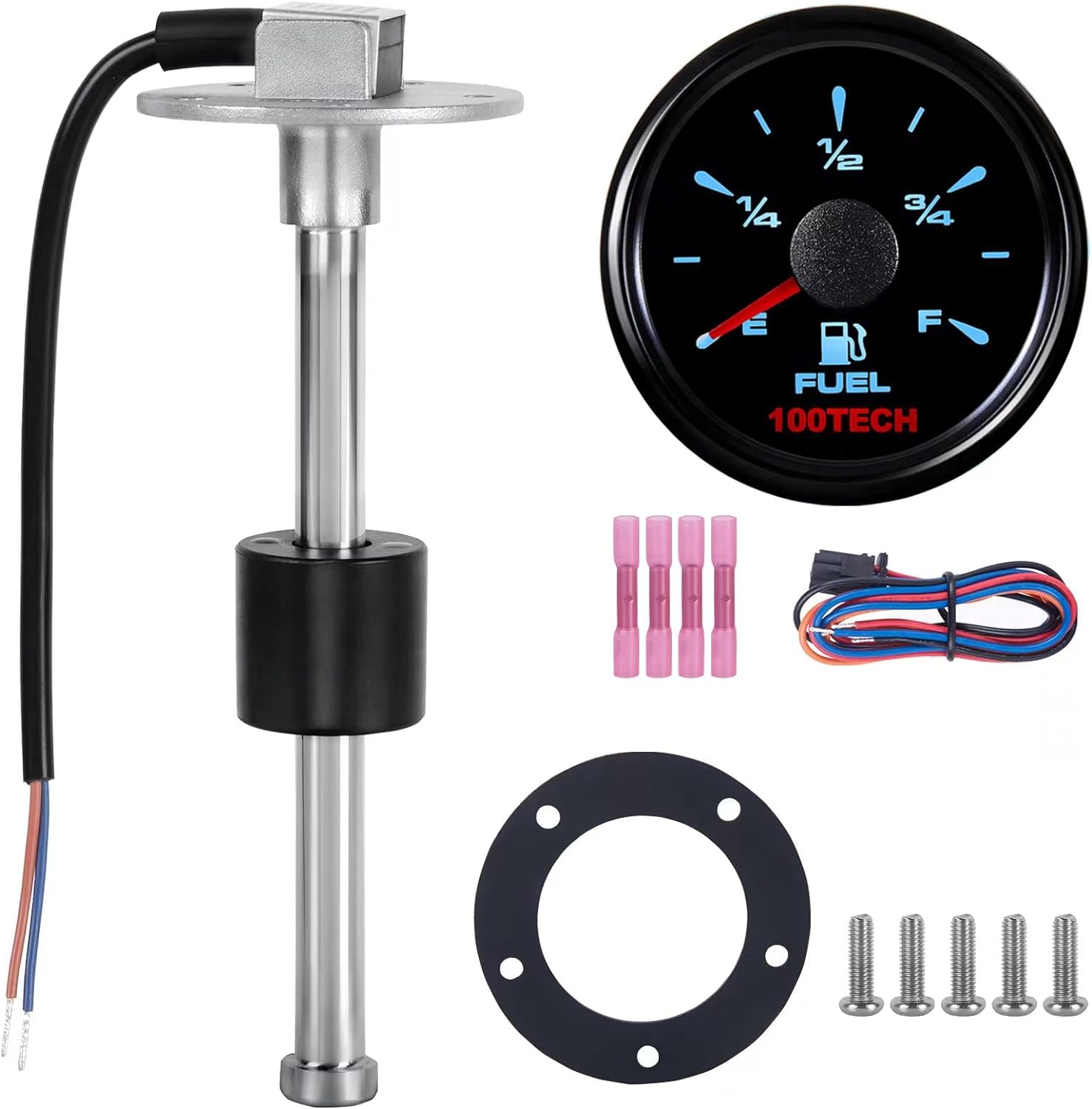

100TECH Fuel Sender with Gauge 10in Stainless Steel for RVs

The 100TECH Fuel Sender with Gauge is a top-tier solution for accurately measuring fuel levels in various vehicles, including boats, trucks, and RVs. With a length of 10in (250mm), this unit is specifically designed for short tanks, providing a finer resolution than taller tanks. The sensitivity of this fuel level sending unit is impressive, with a resolution of just 10mm, ensuring continuous fuel level readings compared to the standard 21mm units.

Constructed from 316 stainless steel, the 100TECH sender is built to withstand the harshest marine environments. This material is known for its corrosion resistance and durability, making it a wise investment for anyone looking to avoid frequent replacements. While the upfront cost may be slightly higher, the long-term savings are significant as you won't need to replace your sender as often as those made from lesser materials.

One of the standout features of the 100TECH Marine Fuel Tank Sending Unit is its design, which eliminates the need for a float on an arm. Utilizing magnetic technology and high-quality reed switches, this unit provides smoother readings, especially in rough waters. The absence of moving parts means there's less chance of malfunction, ensuring accurate fuel level indications at all times.

The smooth sweeping gauge is powered by stepper motor technology, which prevents the needle from swinging due to sloshing tank contents. This feature surpasses the original versions found in many boats, providing a more reliable and stable reading. With an installation diameter of 52mm (2-1/16in) and a working voltage of 9-32V DC, this gauge is compatible with both 12V and 24V vehicles.

Visibility is key when monitoring fuel levels, and the 100TECH Fuel Gauge excels in this area. It features eight selectable backlight colors, including red, green, blue, and more, allowing you to customize the look to match your vehicle's dashboard. The curved lens design also enhances readability, providing a magnifying effect on the gauge face for great visual contrast.

Installation is straightforward, with all necessary parts included. The fuel sender comes with a comprehensive set of accessories, including a gasket, mounting screws, and quick wiring terminals. The well-illustrated instructions make it easy to complete the installation in about 15 minutes, ensuring you can get back on the road or water quickly.

Before installation, it's important to note that the length of the sender should be 1in less than the depth of the tank to prevent it from hitting the bottom. Additionally, if drilling is required, a hole diameter of 1-1/2in (38mm) is recommended for optimal fit. The 100TECH Sender operates with a non-linear output, so it's essential to pair it with a compatible gauge for accurate readings.
