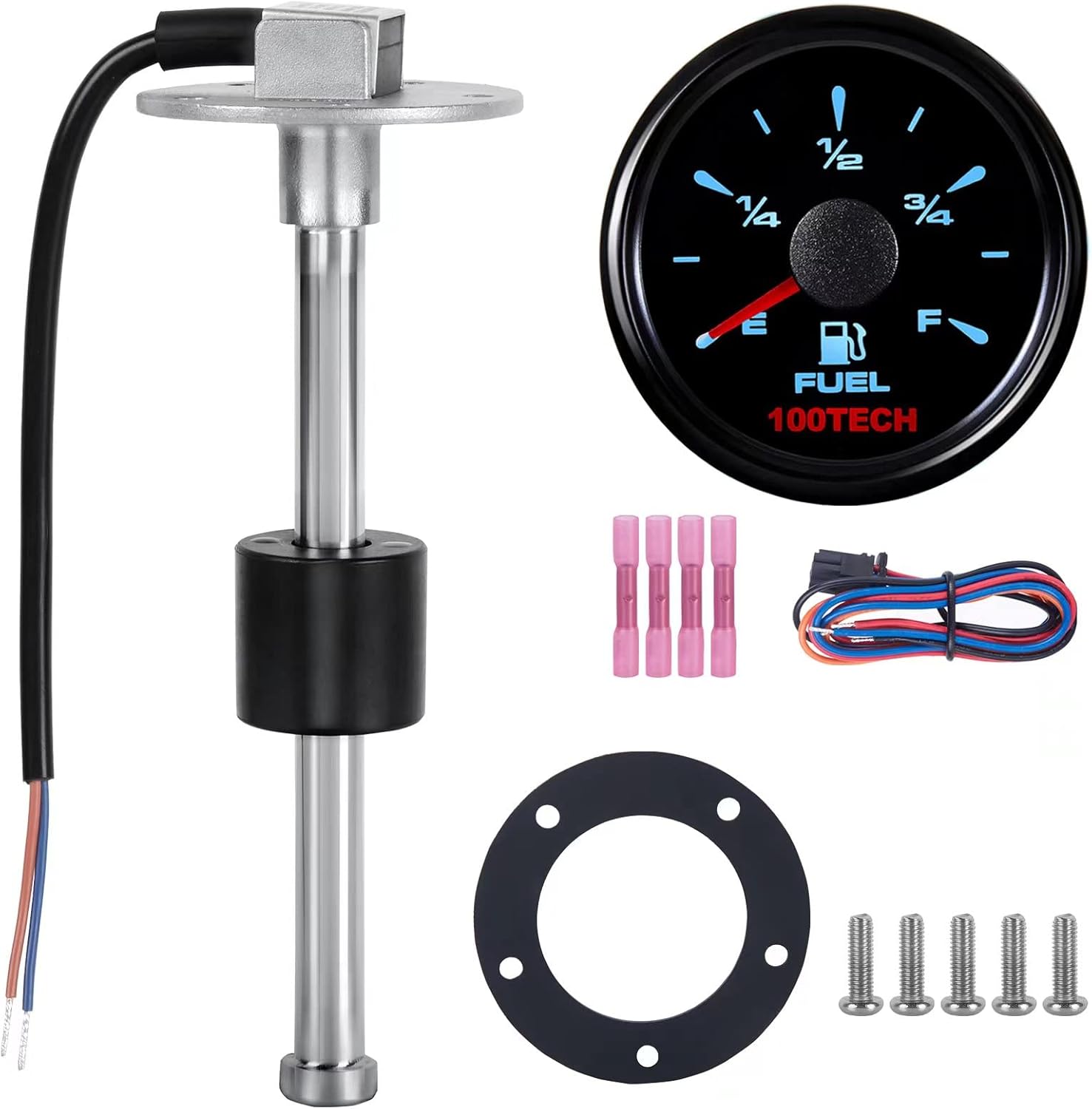

100TECH High Resolution Fuel Sending Unit and Gauge Kit 7in - Smooth

In this review of the 100TECH High Resolution Fuel Sending Unit and Gauge Kit, the bottom line is clear: this kit is aimed at boat and RV owners who need a durable, higher-sensitivity sender that reduces slosh and delivers steady readings. The reviewer found the combination of a 316 stainless steel sender and a smooth-sweeping stepper motor gauge especially valuable for marine use, since the unit's 10mm resolution and 240-33 ohm output give more continuous, dependable level information than coarser senders.

Key Features

• Finer Resolution: The 10mm resolution is designed for short tanks and gives more continuous, readable increments than 21mm alternatives.
• Signal Output: The sender uses a 240-33 ohm non-linear output so it pairs with compatible gauges for correct empty-to-full indication.
• Rugged Construction: The sender body and mounting screws are made from 316 stainless steel for superior corrosion resistance in marine environments.
• No Swingarm Design: Magnetic reed switch operation eliminates a swingarm float, reducing slosh-induced fluctuations and moving parts failure.
• Smooth Gauge Sweep: The gauge uses a stepper motor for a smooth, non-swinging needle and selectable backlight colors to match dashboards.
• Complete Kit: SAE 5-hole flange, NBR gasket, 5 M5 316 screws and quick wiring terminals are included for straightforward installation.

Who It's For

This kit is best for boaters, RV owners and light truck drivers who want a replacement sender with improved sensitivity and corrosion resistance. It particularly suits tanks where a short sender length and higher resolution are needed to avoid blind spots and to get steady readings underway.

Those who should look elsewhere are users who require a linear output sender for an uncommon gauge type or systems that expect a different resistance curve; the 100TECH unit has a non-linear 240-33 ohm output and must be paired with compatible gauges.

Pros & Cons

Pros

• Solid build with 316 stainless steel body and hardware for long service life in corrosive conditions.
• Smooth, stepper-motor gauge sweep that resists slosh and stays readable in rough water.
• Higher 10mm resolution gives more continuous level reporting in shorter tanks.
• Easy to install kit with gasket, screws and clear wiring instructions.

Cons

• Non-linear 240-33 ohm output limits compatibility to gauges expecting that resistance curve.
• Float diameter and recommended cutout size require checking tank clearance before ordering.

Specifications

Sender material	316 stainless steel
Gauge size	7in (180mm)
Signal output	240-33 ohm (240 empty, 33 full)
Resolution	10mm increments
Voltage	9-32V DC (fits 12V-24V)
Ingress rating	IP67 waterproof
Mounting	SAE 5-hole pattern with NBR gasket and M5 screws

Our Verdict

The 100TECH kit is a sensible choice for marine and RV owners who want improved sensitivity, corrosion-resistant hardware and a stable, smooth gauge needle that resists slosh. It represents good value for situations where the non-linear 240-33 ohm output matches the gauge system; confirm compatibility and tank clearance and this kit will likely outlast cheaper senders.

Frequently Asked Questions

Will this sender work on water tanks as well as fuel?
Yes, the manufacturer states the unit can be used for fuel or water tanks but you must ensure the 240-33 ohm non-linear output is compatible with your gauge.

What hole size is required if drilling the tank?
The float diameter is 35mm and a 1-1/2in (38mm) hole is recommended for installation.

How much tank depth should be left when choosing sender length?
Choose a sender about 1in shorter than the tank depth so the float does not hit the tank bottom.
