100TECH High Resolution Marine Fuel Sending Unit with Gauge - Accurate

In this review of the 100TECH High Resolution Marine Fuel Sending Unit with Gauge, the bottom line is simple: this kit is for owners who need a more accurate, rugged fuel-level solution for boats, trucks, RVs and other vehicles where slosh and corrosion are problems. The combination of a 10mm resolution reed switch sender and a smooth-sweeping stepper motor gauge makes the system particularly valuable for shorter tanks and marine environments. Installation is straightforward and the stainless steel construction promises longer life in saltwater use.

Key Features

• High resolution sender: The 10mm resolution provides much finer, continuous fuel-level readings than coarser 21mm senders, which helps in short tanks.
• Non-linear signal matching: The sender outputs 240-33 ohms (240 ohms empty, 33 ohms full) to match standard non-linear gauges and avoid calibration issues.
• 316 stainless steel construction: The sender body, rod, gasket and mounting screws use SUS316 for improved corrosion resistance and longer service life in marine settings.
• Reed switch magnetic design: No swing arm float means fewer moving parts, reduced slosh error and smoother readings in rough water.
• Smooth sweeping gauge: The gauge uses stepper motor technology, an 8-color selectable backlight and a curved lens to improve night readability and visual contrast.

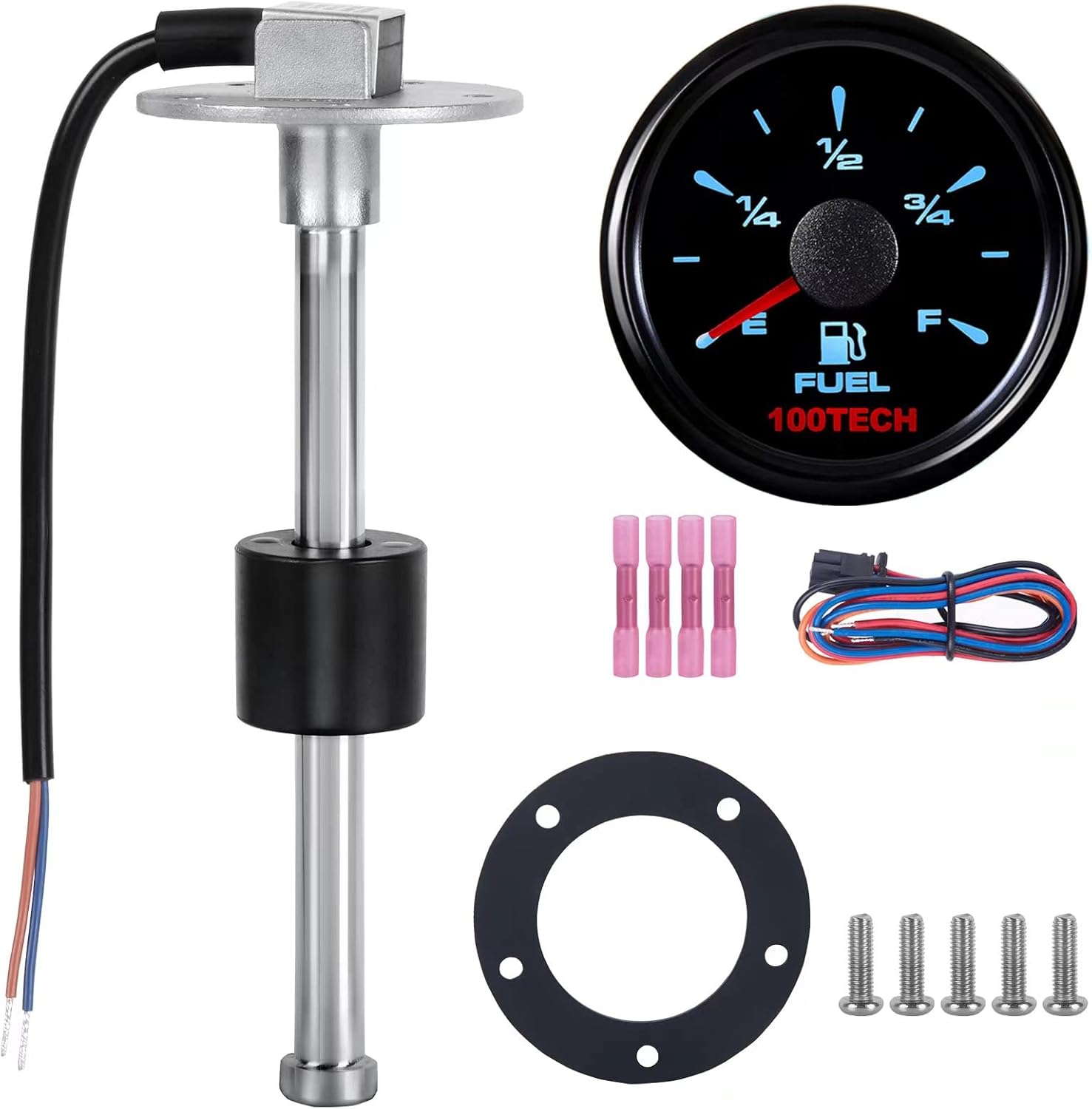

• Complete kit and hardware: SAE 5-hole mount, NBR gasket, SUS316 screws and quick wiring terminals are included for a one-stop install.

Who It's For

This kit is aimed at boat owners and operators who need reliable, accurate fuel-level information, especially in shorter tanks where finer resolution really matters. It is also a good fit for RV and truck owners who want a durable, corrosion-resistant sender and an easy-to-read gauge that matches non-linear signal inputs.

Those who should look elsewhere include users who require a linear-output sender for a specific gauge system that expects linear resistance, or anyone constrained to a very tight budget where premium 316 stainless components are not required.

Pros & Cons

Pros

• Accurate readings from the 10mm resolution sender that suit short tanks and help avoid wild needle swings.
• Durable 316 stainless steel components resist marine corrosion and extend service life.
• Smooth, slosh-resistant gauge movement with selectable backlight colors for clear night visibility.
• Complete mounting hardware and simple wiring make installation possible in about 15 minutes for many users.

Cons

• Non-linear output means the sender only matches standard non-linear gauges; it will not pair correctly with linear-only instruments.
• The float diameter and recommended hole size require planning if a new access hole must be drilled.

Specifications

Signal output	240-33 ohms (240 at empty, 33 at full)
Sender resolution	10mm
Materials	SUS316 stainless steel body, rod and screws
Gauge size / install	6' (150mm) gauge, 52mm (2-1/16in) install diameter
Voltage	9-32V DC (fits 12V-24V systems)
Waterproof rating	IP67
Included hardware	NBR gasket, 5x SUS316 M5 screws, 4 quick wiring terminals

Our Verdict

The 100TECH High Resolution kit is a practical, value-minded upgrade for marine and vehicle fuel systems where accuracy and corrosion resistance matter. Its 10mm resolution sender, reed switch design and 316 stainless parts deliver reliable readings and longer life, while the smooth-sweep gauge and selectable backlight improve usability. Buy this if you need a durable non-linear sender/gauge set that reduces slosh error and fits standard dashboard openings.

Frequently Asked Questions

Will this match my existing gauge?
The sender uses a non-linear 240-33 ohm output and is intended to match standard non-linear gauges; it will not match gauges that expect a linear resistance curve.

Can the kit be used on saltwater boats?
Yes, the sender and mounting hardware are made from SUS316 stainless steel and rated IP67, offering good corrosion resistance for marine use.

How deep should the sender be compared to tank depth?
The sender should be about 1in shorter than the internal tank depth to avoid contact with the tank bottom, and a 1-1/2in hole is recommended if drilling a new opening.
