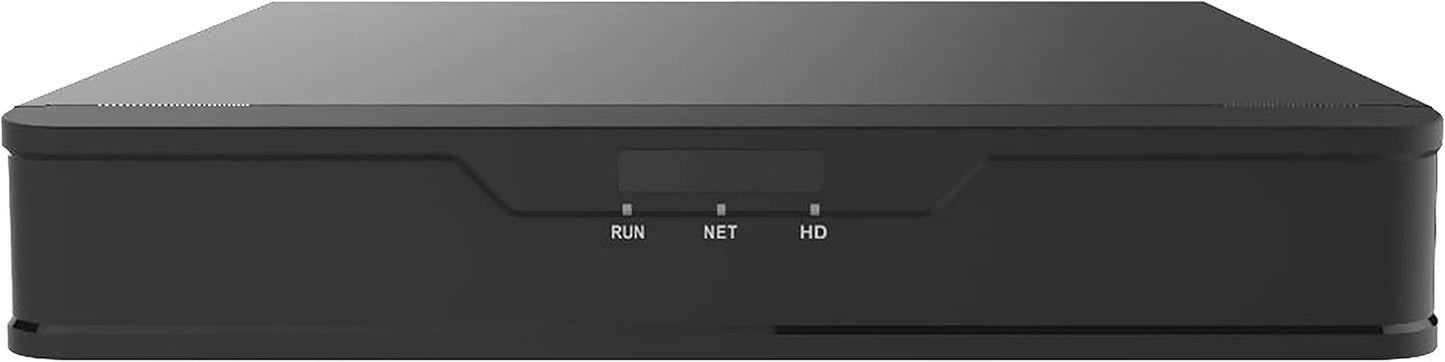

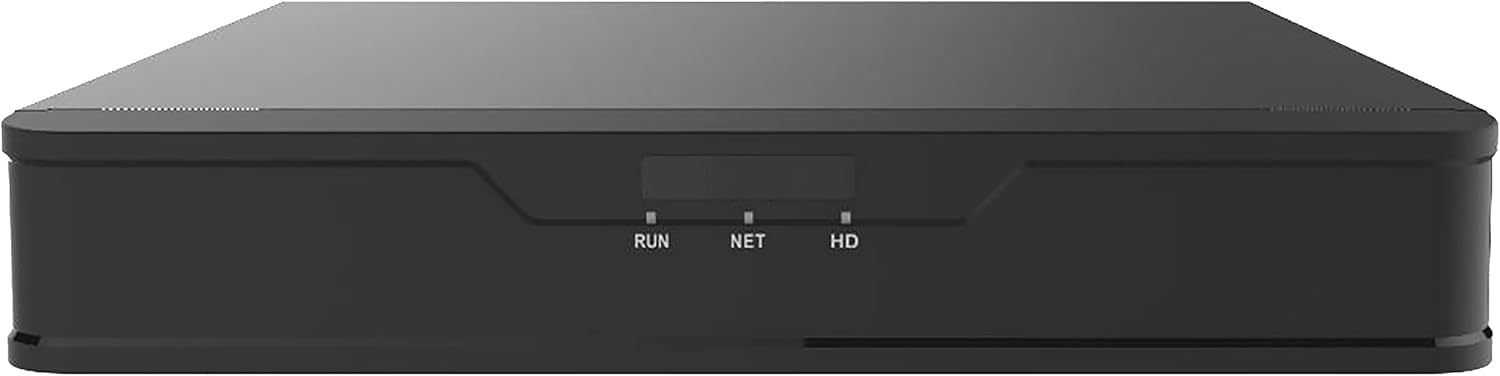

101AV 16CH Hybrid HD DVR/NVR 5in1 Security System - Local 8TB Storage

In this review of the 101AV 16CH Hybrid HD DVR/NVR the bottom line is straightforward: this unit is for homeowners and small businesses that need a flexible, long-lasting recorder that supports both analog and IP cameras while keeping footage under local control. The strongest reason to buy is the hybrid design with a pre-installed 8TB HDD and support for H.265 compression, which delivers extended retention and better image quality without relying on cloud subscriptions. It is a practical upgrade path from older analog setups to IP systems while keeping privacy and straightforward operation top of mind.

Key Features

• 16 channel hybrid recording: Supports combinations of analog and IP cameras so users can mix existing analog cameras with new IP units for gradual upgrades.
• Pre-installed 8TB local storage: Comes with an 8TB SATA HDD pre-installed and supports up to 8TB per drive for long retention without cloud dependency.
• H.265/H.264 compression: Standard H.265 and H.264 reduce bit rates while maintaining image clarity for longer recording times and lower network load.
• Multiple video input formats: Accepts HD-TVI, CVI, AHD, SD/960H and IP video so it will integrate with a wide range of existing cameras.
• Remote monitoring and notifications: Phone apps, CMS and web access provide live view, snapshots and motion/alarm notifications without complex port forwarding.
• Dual video outputs: HDMI and VGA outputs provide up to 1080p display on local monitors for convenient on-site viewing.

Who It's For

This recorder is aimed at homeowners, small offices, and installers who already have analog cameras or want to adopt a hybrid strategy; it is especially useful when privacy and local control of footage matter. The unit's support for up to 24 combined analog and IP channels lets users expand camera counts over time while reusing existing wiring to save on installation costs.

People who rely exclusively on cloud-only NVR solutions or need PoE ports on the recorder should look elsewhere, since this unit does not provide PoE and is designed as a hybrid DVR/NVR that expects separate power for IP cameras. Large enterprise installations that demand central software dependency and rapid feature updates may prefer a network-dependent NVR platform.

Pros & Cons

Pros

• Flexible hybrid design that accepts analog and up to 8MP IP cameras for staged upgrades.
• Pre-installed 8TB HDD with H.265 compression gives strong local retention and efficient storage use.
• Multiple video formats and dual HDMI/VGA outputs simplify integration with existing monitors and cameras.
• Simple plug-and-play use for analog cameras with phone app remote viewing and alarm notifications.

Cons

• Does not include PoE ports, so IP cameras require separate power or an external injector/switch.
• Recording frame rates for higher resolutions are limited (for example 5MP lite at 6fps), which may affect smoothness for some scenes.

Specifications

Channels	16 hybrid channels (analog + IP)
Storage	1 x SATA HDD, pre-installed 8TB (supports up to 8TB)
Compression	H.265 / H.264
Video Inputs	HD-TVI, CVI, AHD, SD/960H, composite, IP up to 8MP
Video Output	HDMI and VGA up to 1080p
Max Camera Resolution	Analog up to 5MP, CVI up to 1080p, IP up to 8MP

Our Verdict

The 101AV 16CH Hybrid DVR/NVR is a solid value for anyone needing a privacy-first recorder that bridges analog and IP systems. With a pre-installed 8TB drive and efficient H.265 compression it offers lengthy local retention and sensible expansion options, making it particularly good for homes and small businesses that want reliable, easy-to-manage surveillance without cloud dependency.

Frequently Asked Questions

Can this unit record both analog and IP cameras at the same time?
Yes, it is a hybrid recorder that supports combinations of analog and IP cameras (examples include 16 analog + 8 IP or 8 analog + 16 IP by address).

Does the recorder include storage or do I need to buy a hard drive?
The unit ships with a pre-installed 8TB SATA HDD and supports one SATA drive up to 8TB.

Do IP cameras get power from the recorder?
No, this recorder does not provide PoE; IP cameras require separate power or an external PoE injector/switch.
