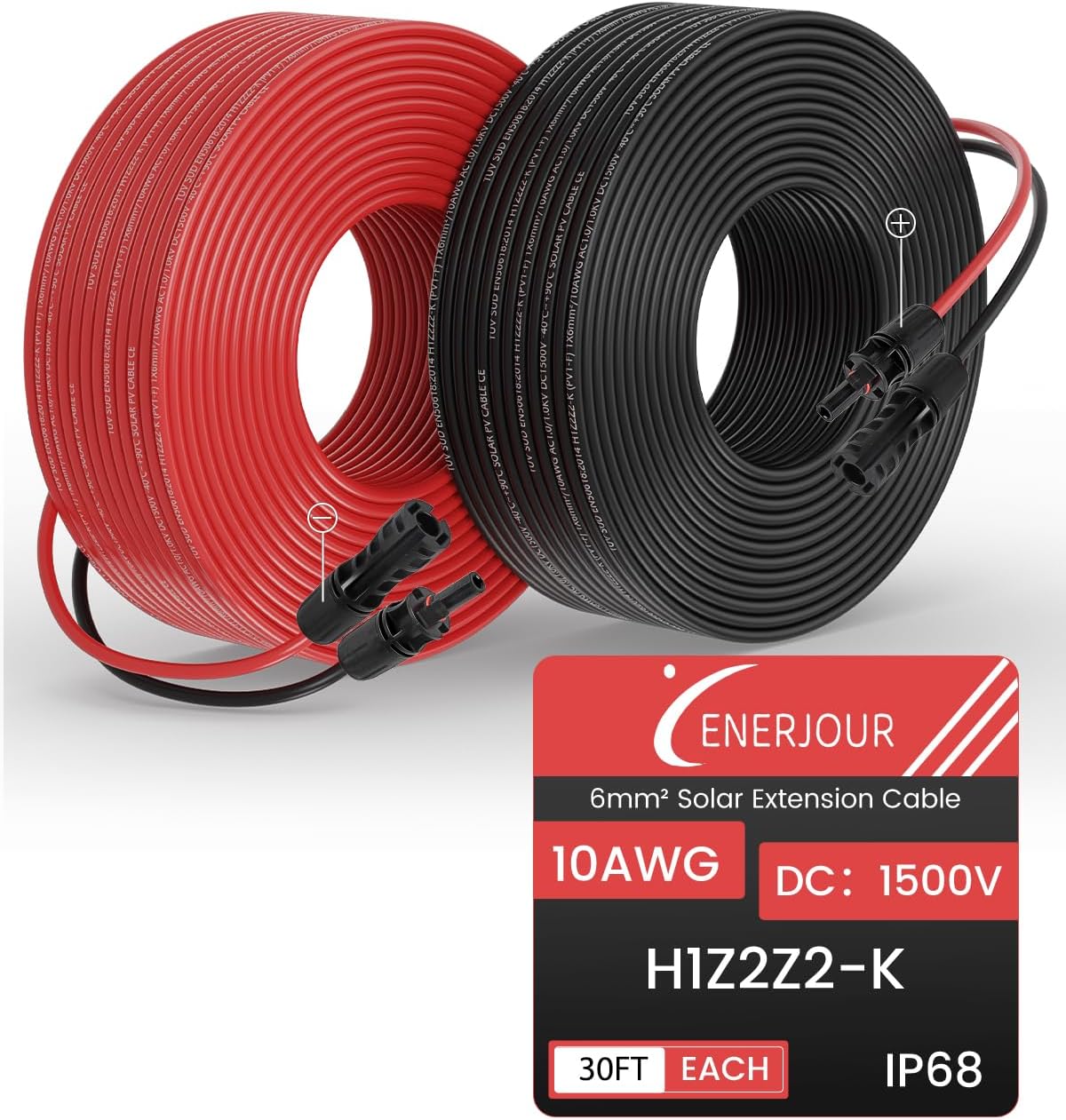

10AWG Solar Extension Cable 30FT - Heavy Duty PV Wire for Panels

In this review of the 10AWG Solar Extension Cable 30FT set, the bottom line is simple: this kit is for DIY solar installers and boat or RV owners who need a robust, weatherproof run between panels and charge controllers or inverters. The reviewer found the double XLPO sheath and tinned copper conductor provide clear advantages in durability and outdoor reliability, and the pre-attached IP68 connectors make installation straightforward. If you want a replacement or extension cable that stands up to moisture, UV and higher DC voltages, this 10 gauge pair is worth considering.

Key Features

• 10 AWG PV Cable: The 6 mm2 conductor carries up to 54A and is suitable for higher current solar runs without excessive voltage drop.
• Tinned Copper Conductors: The 84/0.285 mm tinned Cu strands improve corrosion resistance for marine and outdoor use.
• Double XLPO Sheath: Dual XLPO insulation extends operating range to -40F to 194F and resists UV, moisture and chemicals for long outdoor life.
• High Voltage Rating: Rated for DC 1500V and test voltage 6500V to match modern PV system requirements and improve safety margins.
• Pre-attached IP68 Connectors: Comes with waterproof male and female connector pairs for plug-and-play panel placement and reliable connections.
• 30 ft Pair Included: One black and one red 30 ft cable give immediate flexibility for panel layout without splicing.

Who It's For

This cable set is best for homeowners adding panels to an existing rooftop or balcony array, RV and marine owners needing corrosion-resistant runs, and small off-grid systems where a 30 ft bridge between components is required. Installers who value a pre-terminated solution will appreciate the plug-and-play connectors and waterproof sealing.

It is less suitable for ultra-long runs that require larger gauge wire or for systems that need custom-length, in-wall rated wiring. Also, those who prefer bare-end cables for specialized terminal blocks should look for a version without pre-attached connectors.

Pros & Cons

Pros

• Durable double XLPO sheath offers higher temperature tolerance and better UV and moisture resistance than PVC-sheathed alternatives.
• Tinned copper strands reduce corrosion risk in marine and coastal environments.
• Pre-connected IP68 connector pairs save installation time and provide a watertight external coupling.

Cons

• Pre-attached connectors limit flexibility if you need bare ends or non-standard terminations.
• Two 30 ft runs may be excessive for very short installations and require careful cable management.

Specifications

Wire gauge	10 AWG (6 mm2)
Length	30 ft per cable (one red, one black)
Rated voltage	DC 1500V / AC 1000V
Current rating	54 A
Conductor	Tinned copper 84/0.285 mm strands
Insulation / Sheath	Double XLPO, IP68 resistant
Operating temperature	-40F to 194F

Our Verdict

This 10AWG 30 ft solar extension cable pair is a practical, value-oriented choice for small to medium PV installs, RV and marine systems where weather resistance and higher voltage ratings matter. The combination of tinned copper, double XLPO sheath and pre-fitted waterproof connectors makes it a reliable, time-saving option for most outdoor solar extension needs.

Frequently Asked Questions

Can these cables be used outdoors year-round?
Yes. The double XLPO sheath and -40F to 194F rating are designed for continuous outdoor exposure and improved UV and moisture resistance.

Are the connectors compatible with standard PV panels?
The pair uses common waterproof male and female PV connectors and should be compatible with most panel and inverter connector systems.

Can the connectors be removed for custom terminations?
They are pre-attached for plug-and-play use; removing or replacing them is possible but requires appropriate tools and care to maintain sealing and conductor integrity.
