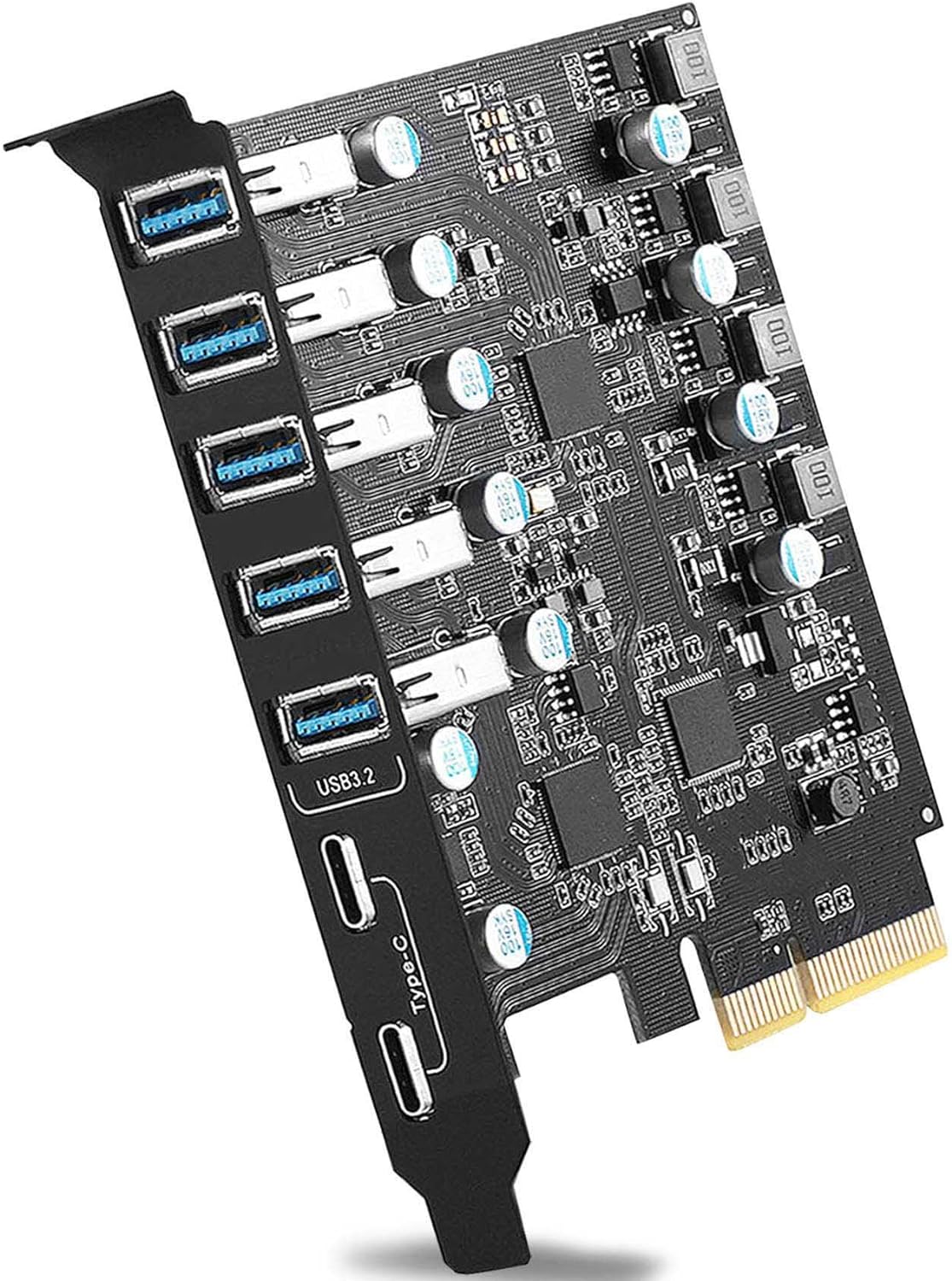

10Gbps PCIe USB 3.2/3.1 Gen 2 7-Port Expansion Card - Fast USB Upgrade

Our review of this 10Gbps PCIe USB expansion card finds it useful for users who need to add several high-speed USB ports to a desktop PC. It is best for builders, content creators, and anyone who needs to attach multiple peripherals or a USB-C device without replacing the motherboard. The single biggest reason to buy is the ability to add seven downstream USB 3.2/3.1 Gen 2 ports (two USB-C and five USB-A) through a single PCIe x4 slot, delivering up to 10 Gbps transfers where supported.

Key Features

• Seven ports in one: Instantly expands a system with 2 USB-C and 5 USB-A ports to solve host port shortages and connect many devices at once.
• High transfer speed: The card supports up to 10 Gbps bandwidth to speed transfers of high-definition photos, video files, and large backups.
• Wide compatibility: Works with PCIe 3.0 and 2.0 slots and supports USB 3.1, 3.0 and 2.0 devices for broad device support.
• Powered by PCIe slot: Draws power from the PCI Express interface so no external power supply is required for typical USB devices.
• Protection on each port: Each downstream port includes overcurrent and static protection for safer everyday use with multiple peripherals.

Who It's For

This card is aimed at desktop users who need multiple high-speed USB connections without changing their case or motherboard, such as streamers, VR users needing reliable Oculus Link connectivity, and professionals who move large files between external SSDs and cameras. It is also a straightforward choice for hobbyist builders who want more USB-C ports for modern peripherals.

Those who should look elsewhere include laptop owners or users who require display output over Thunderbolt or USB-C video, since the card does not support Thunderbolt protocols or act as a video output. Also, if you need guaranteed performance across every possible driver environment, check driver compatibility for your OS before buying.

Pros & Cons

Pros

• Provides a convenient seven-port expansion with two USB-C ports for modern devices.
• Offers 10 Gbps peak transfer speeds for fast file movement when paired with compatible devices.
• Simple installation using a PCIe x4 slot with no external power cable required for common USB peripherals.
• Each port includes safety features for overcurrent and static protection.

Cons

• Driver support and real-world speed can be mixed depending on system configuration and OS, so results vary.
• Does not support video output or Thunderbolt protocol, so it cannot replace a Thunderbolt dock for displays.

Specifications

Chipset	ASM3142 + VL820
Expansion ports	2 USB Type-C, 5 USB Type-A
Host interface	PCI Express (PCI-E 3.0/2.0), x4 compatible
Data transfer rate	Up to 10 Gbps
USB-A output	5V, 0.9A per port
USB-C output	5V, 3A per port
What's in the box	Card, CD driver, screws

Our Verdict

The PCIe USB 3.2/3.1 Gen 2 card is a practical, cost-effective way to add multiple high-speed USB ports to a desktop PC and is good value for users needing extra connectivity and faster transfers. It is recommended for desktop builders and peripheral-heavy setups, but buyers should confirm driver compatibility for their OS and accept that it does not provide video or Thunderbolt functionality.

Frequently Asked Questions

Will this card provide video output?
Answer. No, this card only adds USB data ports and does not carry DisplayPort or Thunderbolt video signals.

Does it need an external power cable?
Answer. No, the card draws power from the PCI Express slot for typical USB devices and does not require an additional power connector.

Which operating systems are supported?
Answer. It is listed as compatible with Windows 7/8/10 and several Mac OS versions; check driver availability for your exact OS before installing.
