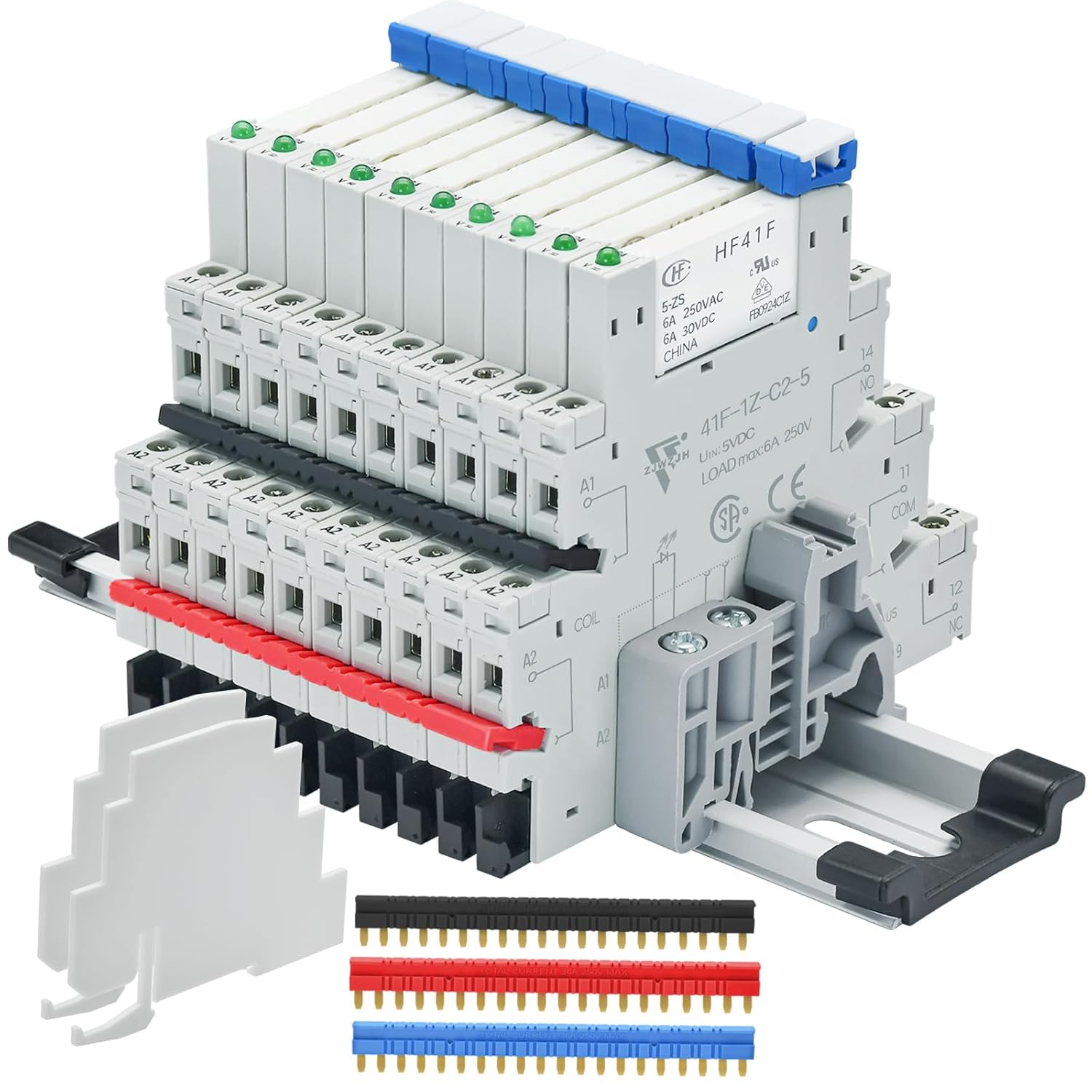

10Pcs 5V DC Miniature Power Relay SPDT 6A with Socket Base - Compact

In this review of the 10Pcs 5V DC Miniature Power Relay kit, the bottom line is practical reliability for hobbyists and light industrial use. The kit pairs slim 5V SPDT relays with matching screw-terminal socket bases and DIN rail hardware, making it a straightforward choice for control panels, prototyping, and retrofit jobs where space and modular replacement matter. The reviewer found the main selling point to be the combination of certified components and a plug-and-play base that speeds replacement and wiring while keeping the footprint very small.

Key Features

• Compact form factor: The relay body is only 0.24 in (6.2mm) thick, which lets it fit into tight control cabinets and dense PCBs where a slim profile is required.
• Certified safety: The relays carry UL and VDE certification while the socket has UL, CSA and CE marks, offering confidence for installed equipment and compliance-focused projects.
• Durable contacts: SPDT contact arrangement rated 6A at 250VAC or 30VDC provides a balance of power handling appropriate for small motors, lighting, and control circuits.
• Long service life: Mechanical life rated to 10,000,000 cycles and electrical life of 300,000 cycles promises longevity in switching applications with frequent actuation.
• Plug-and-play socket: Screw terminals, DIN rail mounting and a finger protection device simplify wiring and make relay replacement tool-free and speedy in the field.
• Complete kit: The package includes 10 relays, 10 socket bases, DIN rail segments, jumpers, fixing clips, separators and screws for immediate installation.

Who It's For

Engineers and hobbyists building control panels, automation prototypes or retrofitting small machines will appreciate the slim profile and the included sockets that allow rapid swap-outs. The 5V coil relays are also convenient for microcontroller driven projects where a compact, certified relay is preferable to bulky alternatives.

Those requiring very high current switching, industrial heavy-load contactors, or extremely low-voltage signal switching should look elsewhere; this kit is optimized for low to moderate power control tasks up to the 6A rating and for users who value modular wiring and certified components over heavy-duty power handling.

Pros & Cons

Pros

• Certified parts (UL, VDE, CSA, CE) give installation confidence in many environments.
• Slim relay size and DIN rail-ready socket make dense assemblies and panel mounting easy.
• Solid life ratings indicate good durability for frequent switching applications.
• Complete kit includes jumpers, separators and mounting hardware for quick setup.

Cons

• Contact rating capped at 6A means it is not suitable for heavier loads or primary power switching.
• Coil rated at 5V requires appropriate driver circuitry; users expecting direct mains switching without drivers will need additional components.

Specifications

Relay Coil Voltage	5V DC
Contact Configuration	SPDT (1 NC + 1 NO)
Contact Rating	6A @ 250VAC / 30VDC
Mechanical / Electrical Life	10,000,000 cycles / 300,000 cycles
Relay Thickness	0.24 in (6.2mm)
Socket Features	Screw terminal, DIN rail mounting, finger protection
Ambient Temperature	-40C to 70C

Our Verdict

This relay kit provides strong value for anyone needing compact, certified relays with easy serviceability. It is especially suitable for control panels, automation prototypes and educational labs where space, safety certifications and quick maintenance are priorities. For projects that need switching above 6A or direct mains actuation without drivers, select a heavier duty option instead.

Frequently Asked Questions

Can these relays be mounted on a standard DIN rail?
Yes. The kit includes 140mm DIN rail segments and the socket bases are designed for DIN rail mounting with fixing clips included.

What is the coil voltage and do I need a driver?
The relay coil is 5V DC; most microcontrollers cannot drive a coil directly without a transistor or driver circuit and a flyback diode for protection.

Are the relays and sockets certified for commercial installations?
Yes. The relays have UL and VDE certification and the sockets carry UL, CSA and CE marks, which supports professional installations where those certifications are required.
