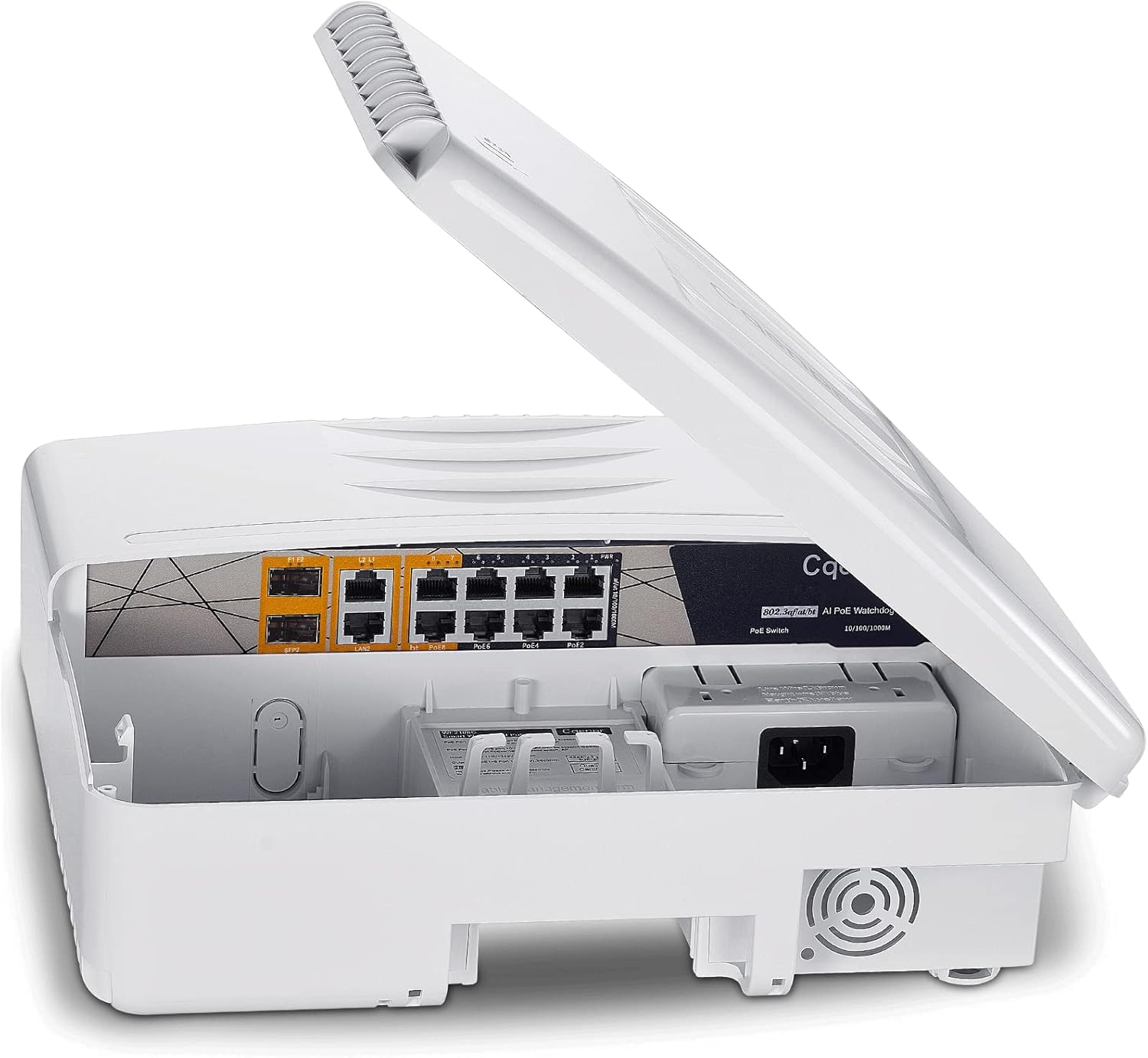

12 Port Full Gigabit Outdoor PoE Switch - High Power, AI Watchdog

In this review of the 12 Port Full Gigabit Outdoor PoE Switch the bottom line is simple: it is built for installers and small site owners who need reliable, high-power PoE outdoors. The reviewer found that the unit delivers stable power to demanding devices like PTZ cameras and IP speakers while surviving harsh conditions, thanks to its IP65 housing and multiple protections. Setup is plug-and-play and the built-in AI Watchdog helped restore devices automatically during intermittent link issues, making it a pragmatic choice for security camera and outdoor IoT deployments.

Key Features

• 12 Full Gigabit Ports: A mix of six PoE ports, two PoE++ BT ports, two uplink ports and one SFP slot gives flexible connectivity for cameras and NVRs.
• High Power Output: Up to 120W total with single-port outputs up to 60W on BT ports, enabling power for PTZ cameras and LED PoE lighting.
• Built-in Surge Protection: 6KV lightning protection per port and 8KV electro-static protection reduce downtime in storm-prone outdoor installations.
• IP65 Industrial Housing: Robust PC/ABS alloy enclosure and integrated top cover let this switch run outdoors without additional shelter in many environments.
• AI Watchdog Function: Automatic detection and power cycling of a port when packet loss is detected helps recover devices without manual intervention.

Who It's For

The switch is aimed at small businesses, security integrators and property managers who deploy multiple high-power PoE devices such as HIK-style cameras, PTZs, PoE LED lights and IP speakers outdoors. Its combination of PoE/PoE+/PoE++ ports and 120W total budget makes it especially useful where a mix of standard cameras and a few high-draw devices are present.

Those who need managed switch features like VLANs, QoS controls or detailed per-port monitoring should look elsewhere; this is an unmanaged, fanless unit focused on reliability, power delivery and protection rather than advanced network management.

Pros & Cons

Pros

• Delivers substantial per-port power for demanding devices, including 60W on BT ports.
• Sturdy IP65-rated housing and multi-layer surge protection make it well suited for outdoor deployments.
• Plug-and-play operation plus the AI Watchdog reduces maintenance by automatically restarting ports that lose registration.
• Gigabit uplink ports and an SFP slot offer flexible connection to routers or NVRs.

Cons

• As an unmanaged, fanless switch it lacks advanced configuration features that some network professionals may require.
• The high-power budget is shared across ports, so large numbers of high-draw devices may require power planning.

Specifications

Ports	12 total: PoE 1-6, BT 7-8, Uplink L1-L2, 1 SFP
Port Speeds	10/100/1000Mbps for PoE and uplinks; BT ports 1000Mbps
PoE Standard	IEEE 802.3af/at/bt
Maximum PoE Output	Up to 120W total; ports 1-6 up to 30W each; ports 7-8 up to 60W each
Protection	6KV lightning per port, 8KV electro-static, short-circuit and over-current protection
Enclosure	IP65 PC/ABS industrial housing, waterproof for outdoor use

Our Verdict

This switch is a strong value for installers who need a rugged, high-power, plug-and-play outdoor PoE solution. It pairs robust surge and environmental protection with useful power headroom and the practical AI Watchdog feature, making it a reliable choice for surveillance and outdoor IoT device deployments where managed switching is not required.

Frequently Asked Questions

Can this power PTZ cameras?
Yes. The BT ports supply up to 60W per port and the unit supports IEEE 802.3bt, making it suitable for many PTZ cameras.

Is this switch suitable for outdoor installation?
Yes. The IP65-rated housing and integrated cover are designed for outdoor use and include lightning and electro-static protection.

Does it require configuration?
No. It is an unmanaged, plug-and-play switch with automatic port power management and the AI Watchdog auto-restart feature.
