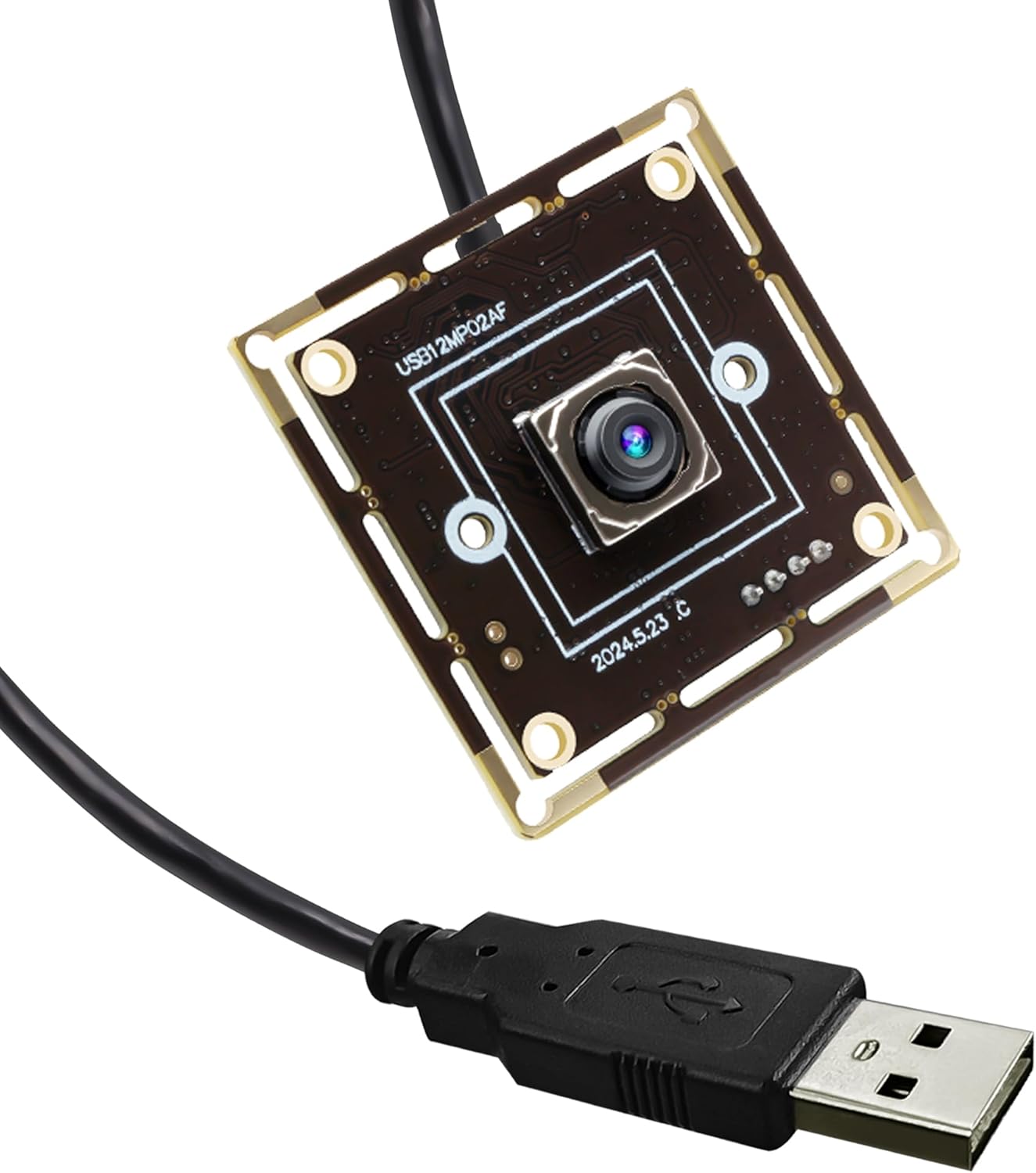

12MP Auto Focus USB Camera Module 4K 30fps Webcam Board - Compact 4K

In this review of the 12MP Auto Focus USB Camera Module, the bottom line is simple: it is a compact, high resolution camera board aimed at makers, embedded projects and PC users who need a small UVC webcam with fast autofocus and strong image detail. The module delivers a maximum 4000 x 3000 still resolution and can stream up to 4K at 30fps or 1080P at 60fps, which makes it a versatile choice for machine vision prototypes, laptop camera upgrades, or hobbyist robotics. The review highlights the IMX362 sensor and practical autofocus behavior as the single biggest reasons to consider this board.

Key Features

• 12MP sensor: The 1/2.55" IMX362 sensor provides high resolution images up to 4000 x 3000 for detailed stills and close inspection work.
• High frame rates: The board can stream 4K@30fps for rich detail or 1080P@60fps to better capture fast moving subjects.
• Fast autofocus: PDAF autofocus works automatically without manual adjustment, focusing in roughly 200ms at 60fps and about 300ms at 30fps for quick subject changes.
• Wide field lens: The HD 65 degree AF lens with low distortion (DFOV ~76 degrees, HFOV ~65 degrees) offers a useful balance between scene coverage and subject detail.
• Compact UVC board: Small 38 x 38 mm outline and roughly 30 g weight make the module easy to embed in laptops, Raspberry Pi projects, or custom enclosures.
• Broad compatibility: Uses USB 2.0 UVC interface and supports MJPEG and YUY2, so it works with standard PC, Jetson Nano, and Raspberry Pi host systems without special drivers.

Who It's For

The camera board is best suited for tinkerers, developers and integrators who need a small, high resolution UVC camera for machine vision prototyping, animal or baby monitoring builds, dash cam experiments, or desktop webcam replacement. Its small footprint and standard USB interface make it easy to drop into many projects.

Those who need built-in illumination, weatherproofing, or a finished consumer webcam enclosure should look elsewhere; this is a board-level module intended for embedded use and custom mounting rather than a polished retail webcam with integrated case and microphone.

Pros & Cons

Pros

• Excellent detail from the 12MP IMX362 sensor for inspection and high resolution still capture.
• Flexible streaming modes: 4K@30fps for resolution and 1080P@60fps for smoother motion capture.
• Reliable UVC compatibility via USB 2.0 with common formats MJPEG and YUY2 for easy integration.
• Very compact and lightweight for embedding in small machines and custom housings.

Cons

• Board-level form factor lacks an enclosed housing, lighting, or audio, so additional hardware is required for finished products.
• USB 2.0 bandwidth limits may constrain multi-stream scenarios compared with USB 3.0 devices.

Specifications

Our Verdict

The Svpro 12MP USB camera module is a smart value for hobbyists and developers who need a compact, high resolution UVC board with dependable autofocus and flexible video modes. It is not a finished webcam product but provides strong imaging performance and easy host compatibility, making it a good choice for embedded builds and prototype machine vision tasks.

Frequently Asked Questions

Does this camera work without special drivers?
Yes, it uses the UVC standard over USB 2.0 and should be recognized by most PCs, Raspberry Pi, and Jetson hosts without extra drivers.

Can it capture fast motion?
Yes; use 1080P@60fps mode to better capture fast moving objects while 4K@30fps gives higher detail for slower subjects.

Is there built-in lighting or a case?
No, this is a bare camera board designed for embedded applications and typically requires a custom mount or enclosure and separate lighting if needed.
