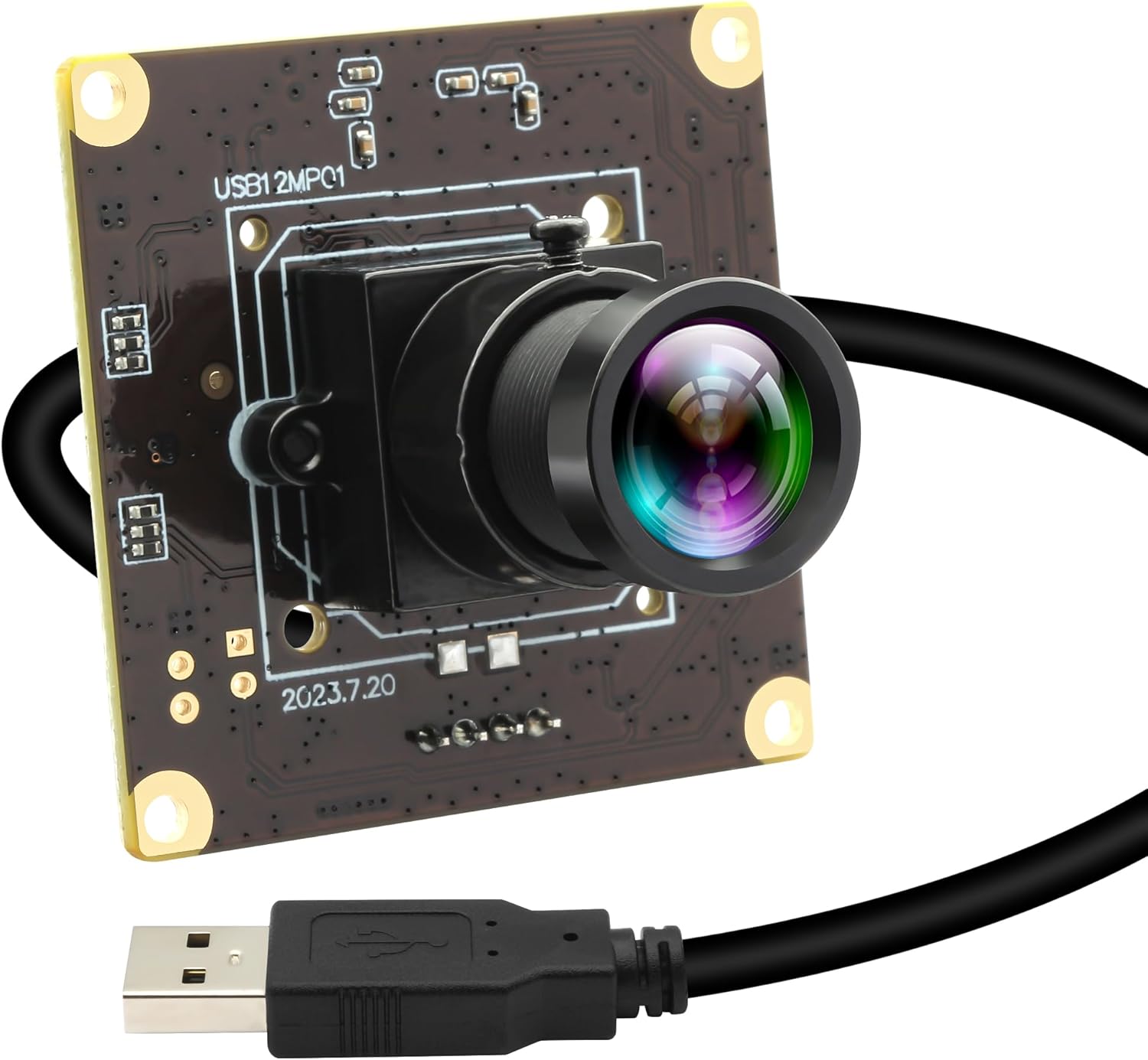

12MP USB Camera Module 4K 120fps High Speed - Narrow 25deg Lens

In this review the 12MP USB Camera Module 4K 120fps proves itself as a specialist tool for anyone who needs high resolution, high frame rate capture for fast motion analysis. The single biggest reason to buy is its combination of 3840 x 2160 resolution at 120 frames per second, which delivers smooth, detailed footage of fast subjects like a golf swing while remaining simple to connect via USB. The review focuses on practical use, low light performance and how the 25 degree narrow field of view affects framing and distortion.

Key Features

• 4K at 120fps: Captures ultra high definition video at very high frame rates, making motion playback and frame-by-frame analysis clearer and smoother.
• 25 degree narrow field of view: Uses a 25deg M12 lens that minimizes barrel distortion so straight lines stay straight for accurate visual assessment.
• Low illumination performance: The IMX577 sensor and 0.1Lux sensitivity provide usable images in dim environments for extended indoor and evening use.
• USB2.0 plug and play: A 1m cable allows immediate connectivity to laptops, PCs, Raspberry Pi and Jetson devices without extra drivers on common OSes.
• Compact industrial design: Small module form factor integrates easily into experimental rigs, robot projects, or production line monitoring setups.

Who It's For

The camera is aimed at technicians, researchers and hobbyists who need precise slow-motion capture for activities such as golf swing analysis, robotics testing, or security monitoring of fast-moving subjects. Its high frame rate and narrow, low-distortion lens are especially useful when accurate line geometry and clear motion detail matter.

Those who need ultra-wide coverage, built-in audio, or wireless connectivity should look elsewhere; this module is optimized for line-of-sight, high-detail capture from a fixed position and for integration with external systems rather than standalone consumer webcam convenience.

Pros & Cons

Pros

• Exceptional motion capture thanks to 3840 x 2160 at 120fps, ideal for frame-by-frame analysis.
• Minimal distortion from the 25 degree M12 lens, keeping geometry accurate in the image.
• Good low light sensitivity with the IMX577 sensor, useful in dim testing environments.
• Easy integration via USB2.0 and a 1m cable for Raspberry Pi, Jetson and desktop systems.

Cons

• No wireless or built-in audio features, so it is not a full substitute for consumer webcams.
• USB2.0 bandwidth may limit some multi-stream workflows compared with newer interfaces.

Specifications

Sensor	IMX577 (12MP)
Resolution	3840 x 2160 (4K)
Frame Rate	120fps at 4K
Lens	M12 25 degree narrow field of view
Low Light Sensitivity	0.1Lux
Interface	USB2.0, 1m cable
OS Compatibility	Windows, Mac OS, Raspberry Pi, Jetson

Our Verdict

The 12MP USB Camera Module 4K 120fps is a focused tool for users who need high-frame-rate, high-resolution capture with low distortion and good low light sensitivity. It represents strong value for integration into analysis rigs, robotics and industrial monitoring where precise visual detail matters, though it is not intended as a wireless or audio-equipped consumer webcam.

Frequently Asked Questions

Does this camera work with Raspberry Pi?
Yes, the module connects via USB2.0 and is compatible with Raspberry Pi and Jetson devices for integration into projects and experiments.

Can it capture usable images in dim indoor light?
Yes, the IMX577 sensor and 0.1Lux sensitivity deliver usable low light performance for indoor and low illumination setups.

Is the lens distorted like a wide angle?
No, the 25 degree narrow M12 lens minimizes barrel distortion so straight lines remain straight in the captured image.
