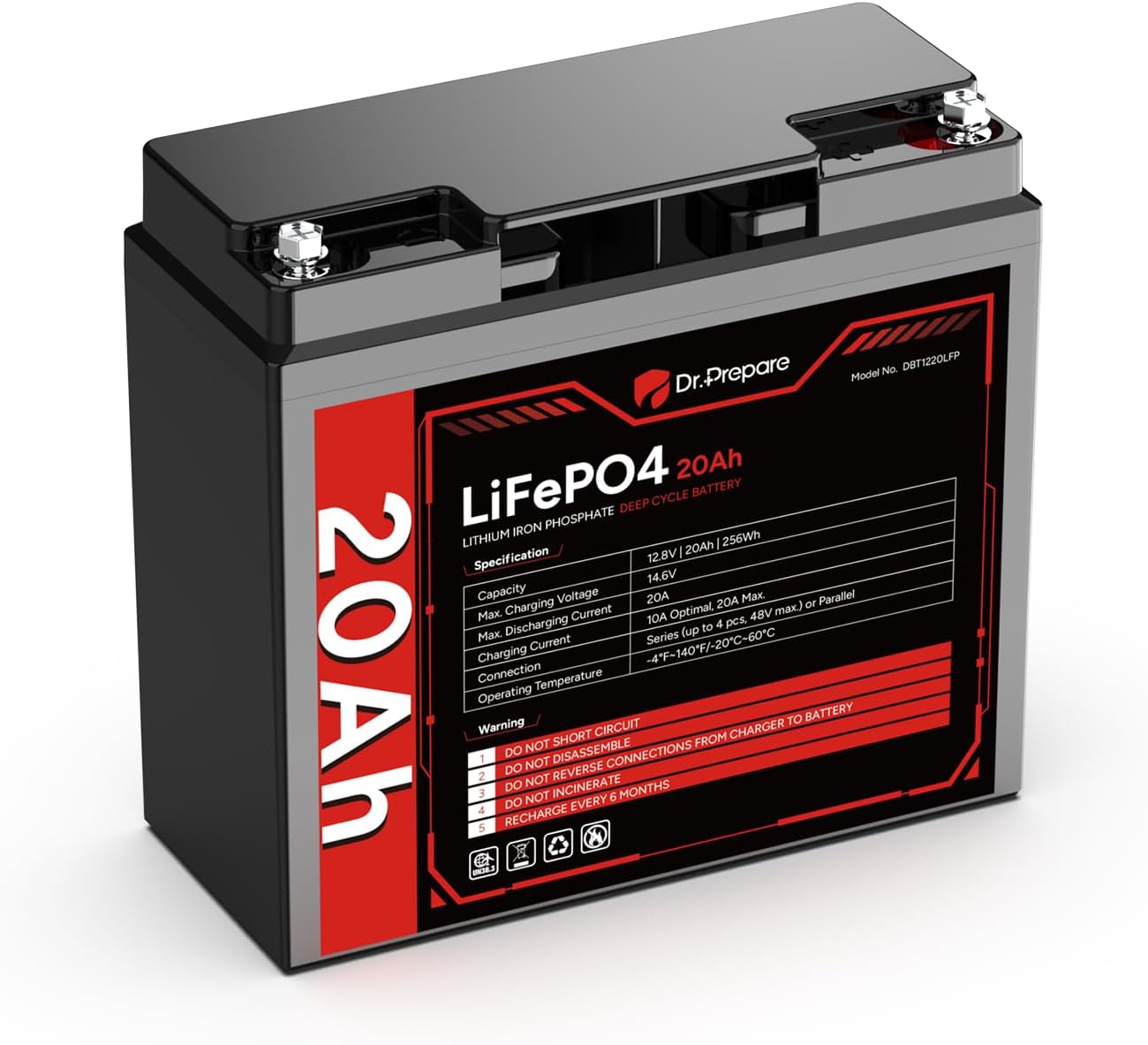

12V 20Ah LiFePO4 Deep Cycle Battery - Lightweight, Long Life

In this review of the 12V 20Ah LiFePO4 deep cycle battery, the bottom line is straightforward: this battery is for anyone replacing heavy sealed lead acid packs who needs a lightweight, long-life power source for small electronics and off-grid setups. The single biggest reason to buy is its combination of a built-in 20A BMS with six protections and a proven Grade A+ cell chemistry that promises over 4,000 cycles and full 100% usable discharge, cutting replacement frequency and lifecycle cost. It feels like a practical upgrade rather than an experiment.

Key Features

• Built-in 20A BMS: Provides six layers of protection including overcharge, over-discharge, overcurrent, short circuit, high temperature and auto balance for safer daily use.
• Grade A+ Cells: Uses high-quality LiFePO4 chemistry that supports deep cycling and maintains stable voltage under load for reliable performance with fish finders, solar systems and alarms.
• Long service life: Rated for 4,000+ cycles versus a few hundred for lead acid batteries, which reduces long-term replacement and ownership costs.
• Series and parallel capable: Can be wired in series or parallel to build 24V-48V or larger 12V bank systems, supporting flexible system design up to multi-kilowatt capacity.
• Lightweight design: At about 5.95 lbs it is roughly 60% lighter than comparable sealed lead acid units, making installation and transport noticeably easier.

Who It's For

The battery is ideal for hobbyists and small system builders who need a durable, portable 12V battery for fish finders, small UPS backup, solar gate openers, alarm systems and outdoor camping. The 100% usable discharge and high cycle life particularly suit setups where frequent deep cycling would quickly wear out lead acid equivalents.

It is not designed as a starter battery for engines, so users needing high cranking amps for automotive starting should look elsewhere. Also, installers should use an AC-to-DC LiFePO4 compatible charger and follow the recommended charging current to get the advertised life.

Pros & Cons

Pros

• Very light compared with SLA alternatives, which makes deployment and mounting simpler.
• Long expected lifespan with 4,000+ cycles reduces replacement frequency and cost over time.
• Built-in 20A BMS and IP56 resistance add practical safety and weather tolerance for outdoor use.

Cons

• Requires a LiFePO4-compatible charger rather than a general-purpose lead acid charger, adding a small setup consideration.

Specifications

Nominal voltage	12V
Capacity	20Ah
Chemistry	LiFePO4 (Grade A+ cells)
Built-in protection	20A BMS: overcharge, over-discharge, overcurrent, short circuit, high temp, auto balance
Cycle life	4,000+ cycles
Weight	About 5.95 lbs
Ingress rating	IP56 dust and water resistance

Our Verdict

This 12V 20Ah LiFePO4 battery is a strong value for anyone replacing sealed lead acid units in small off-grid, marine electronics or backup power roles. Its light weight, long cycle life and robust 20A BMS deliver practical benefits that reduce hassle and cost over time, provided you use the recommended LiFePO4 charger and accept that it is not a starter battery.

Frequently Asked Questions

Can these batteries be wired together to make larger banks?
Yes, they support series and parallel connections to make 24V/36V/48V banks or larger 12V capacity systems; ensure each battery is fully charged before series connection.

What charger should I use?
Use a compatible AC-to-DC LiFePO4 charger; optimal charge current is 10A and maximum is 20A-do not use general-purpose lead acid chargers.

Is this a starter battery for vehicles?
No, this battery is intended for deep cycle applications like solar, fish finders and backup power, not for engine starting.
