12V High Force Linear Actuator 10 in Stroke - Industrial 2000 lb

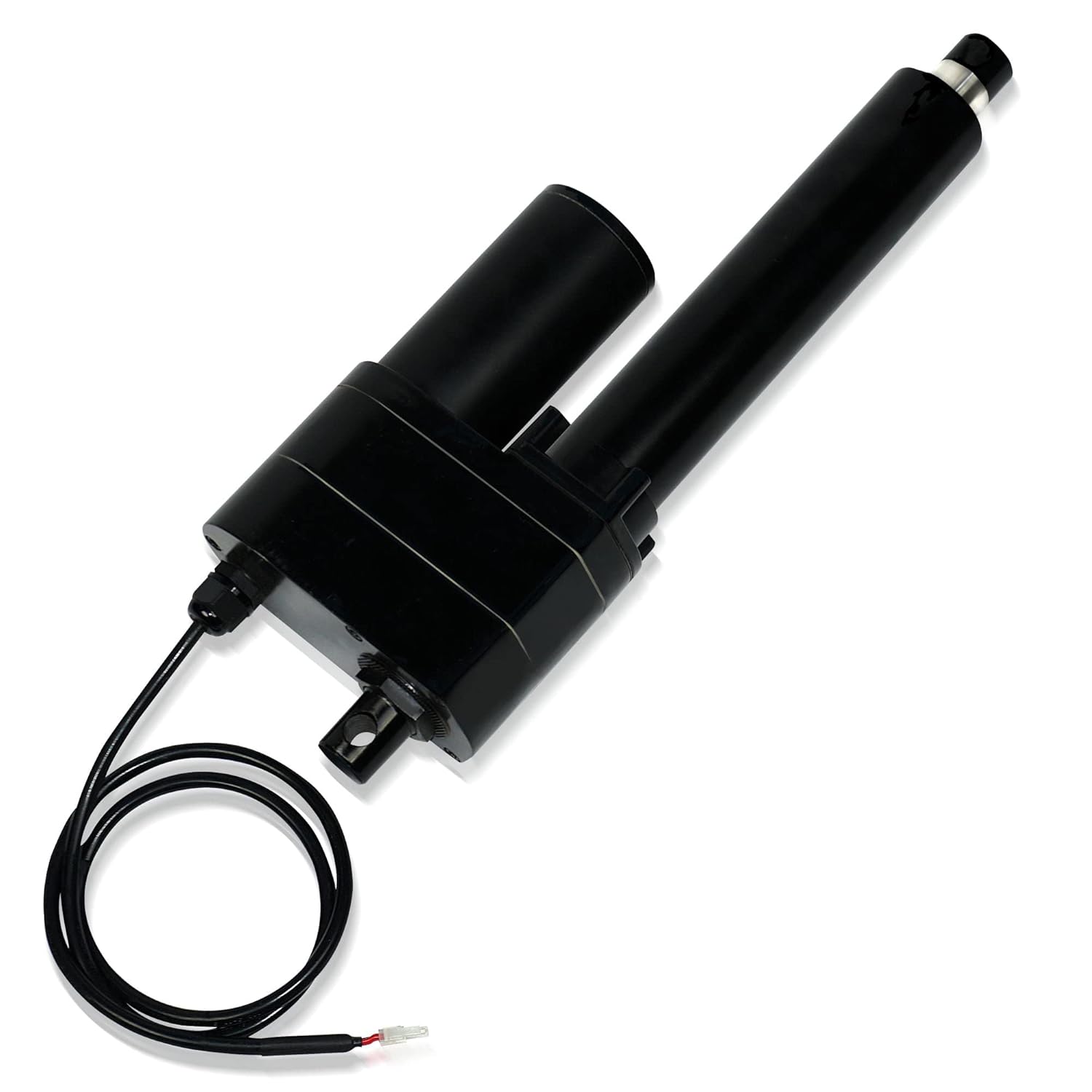

In this review the Progressive Automations PA-17 12V high force linear actuator is assessed for heavy industrial and agricultural use; the bottom line is that this actuator is for anyone who needs a compact, high-capacity 12V linear drive with robust protection and mechanical overload safety. The review focuses on real-world utility: the stainless steel shaft, metal gears, and a rated push/pull force up to 2000 lbs (holding to 4000 lbs) make it a clear choice where strength and durability matter more than fine positioning or ultra-quiet operation.

Key Features

• Heavy duty construction: Stainless steel shaft and metal gears give durable load handling for repeated industrial cycles.
• High force capacity: Capable of 2000 lb push or pull and able to hold up to 4000 lb, useful for demanding lifting and pushing tasks.
• IP65 protection: Sealed casing provides dust and water resistance for harsher outdoor environments like agricultural sites.
• Overload protection: Mechanical slip clutch helps prevent damage under unexpected jams or excessive loads.
• Simple 2-wire operation: Brushed DC motor simplifies wiring and integration with controllers that accept a Molex Mini-Fit Jr 2-pin connector.
• Adjustable limits: Built-in adjustable limit switches on stroke lengths up to 24 in allow basic end-stop configuration without extra sensors.

Who It's For

The PA-17 is aimed at builders, mechanics, and engineers who need a rugged 12V actuator for agricultural machines, gate openers, RV and marine equipment, snow blowers, solar trackers, or industrial lifting tasks. Its strength and IP65 rating make it suitable for outdoor and workshop installations where exposure and heavy loads are common.

Those who need very quiet operation, micropositioning for robotics, or integrated high-level feedback should look elsewhere; this unit is built for force, simplicity, and reliability rather than servo-like precision or low-noise environments.

Pros & Cons

Pros

• Robust build quality with metal gears and a stainless steel shaft that customers report as reliable and long lasting.
• High power and load capacity that handles heavy duty applications and even extreme cold operation in some reports.
• IP65 rating and mechanical slip clutch provide protection against the elements and overloads in the field.

Cons

• The brushed DC motor and simple 2-wire control limit its suitability for projects requiring fine positional feedback or near-silent operation.

Specifications

Model	PA-17
Voltage	12V DC
Stroke length	10 in
Push/Pull force	2000 lbs (hold up to 4000 lbs)
Protection rating	IP65
Motor type	Brushed DC, 2-wire operation
Connector	Molex Mini-Fit Jr 2-pin

Our Verdict

The PA-17 is a strong, no-nonsense 12V linear actuator suited to agricultural, industrial, and heavy-duty mobile applications where ruggedness and high force matter. It represents good value for projects that demand straightforward integration and proven mechanical protection, though users requiring quiet, high-resolution motion control should consider alternatives.

Frequently Asked Questions

Is this actuator weather resistant?
Yes, the unit has an IP65 rating which offers dust protection and water resistance for outdoor use.

Can it be stalled without damage?
The PA-17 includes a mechanical slip clutch for overload protection, reducing the risk of damage from stalls.

What control wiring is required?
It uses a brushed DC motor with simple 2-wire operation and uses a Molex Mini-Fit Jr 2-pin connector for power and polarity reversal.
