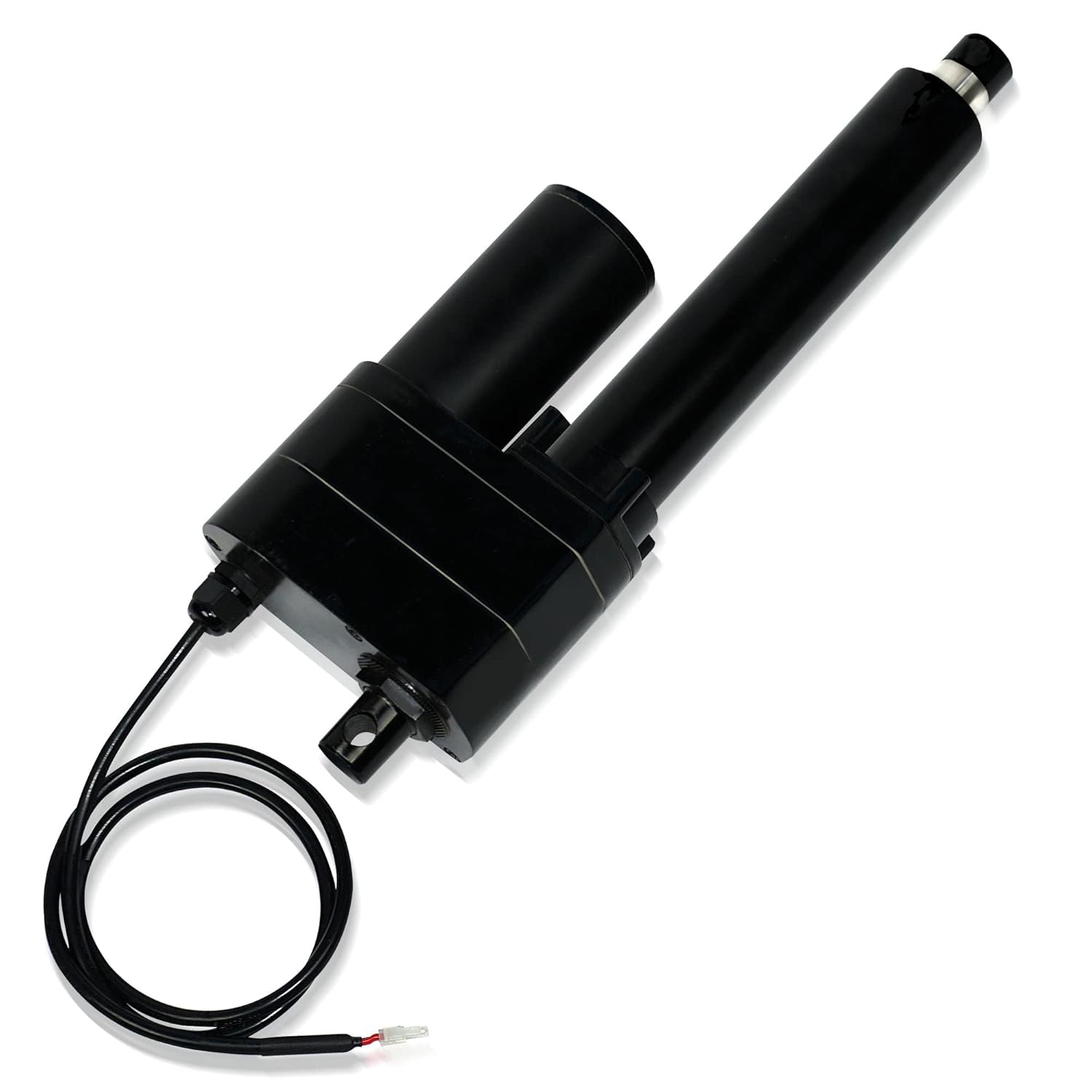

12V High Force Linear Actuator 18in Stroke 2000 lbs - PA-17

In this review of the PA-17 12V high force linear actuator the bottom line is simple: this is a heavy duty actuator built for demanding industrial tasks where raw pushing power and durability matter most. The reviewer finds it best for applications that need strong, reliable linear motion rather than compact or low-force uses. Its single biggest reason to buy is the substantial rated push/pull capacity combined with metal gears and a stainless steel shaft that give practical strength and corrosion resistance in harsher environments.

Key Features

• Heavy push/pull capacity: The actuator is rated to push and pull up to 2000 lbs which makes it suitable for lifting and moving heavy loads in industrial projects.
• High holding strength: Mechanical design allows it to hold up to 4000 lbs, providing extra security when load retention is critical.
• Durable construction: A stainless steel shaft and metal gears increase longevity and resist wear under frequent use.
• IP65 protection: The actuator is sealed for dust and water jets so it can be used outdoors and in harsher environments common in agriculture and construction.
• Simple electrical interface: A brushed DC motor with a two-wire Molex Mini-Fit Jr connector simplifies wiring and integration with standard controllers.
• Built-in safety features: An adjustable mechanical slip clutch and limit switches provide overload protection and control over stroke endpoints.

Who It's For

The PA-17 targets professionals and hobbyists who need a robust linear actuator for industrial style projects: agricultural machinery, gate openers, solar trackers, snow blowers, custom loading or lifting equipment, and RV or vehicle installations where higher force is required. Users replacing a low-force actuator in a heavy application will appreciate the step up in capability.

It is not the best choice for ultra-compact assemblies, precision micro-positioning, or applications that require quiet brushless operation and very low current draw. Buyers needing sub-inch positional accuracy or long duty-cycle continuous operation should consider alternate actuator types optimized for those needs.

Pros & Cons

Pros

• Very high push/pull rating for demanding loads and lifting tasks.
• Solid metal gears and stainless shaft deliver dependable build quality and durability.
• IP65 protection and overload slip clutch add reliability for outdoor and industrial use.
• Two-wire brushed motor simplifies installation and control wiring.

Cons

• The brushed DC motor and higher current draw may not suit applications requiring ultra-quiet operation or very low power consumption.
• The unit is focused on strength rather than fine positional control, so it may be overkill for light-duty or precision tasks.

Specifications

Model	PA-17
Voltage	12V DC
Stroke length	18 in
Push/Pull force	2000 lbs
Holding capacity	4000 lbs
Protection rating	IP65
Connector / Current	Molex Mini-Fit Jr 2-pin, 20A rating

Our Verdict

The PA-17 12V high force linear actuator is a compelling pick for anyone needing robust, field-capable linear motion with a clear emphasis on strength and durability. It offers excellent value where force and weather resistance matter most, and the built-in safety features and straightforward wiring make it practical to install in agricultural, construction, and vehicle-related projects.

Frequently Asked Questions

Can this actuator be used outdoors?
Yes - the IP65 rating means it is protected against dust and low-pressure water jets, making it suitable for many outdoor and agricultural uses.

How much weight can it hold?
The design supports holding up to 4000 lbs and is rated to push or pull 2000 lbs during actuation.

Is the electrical connection standard?
Yes - it uses a two-wire interface with a Molex Mini-Fit Jr 2-pin compatible connector and is designed for 12V DC systems.
