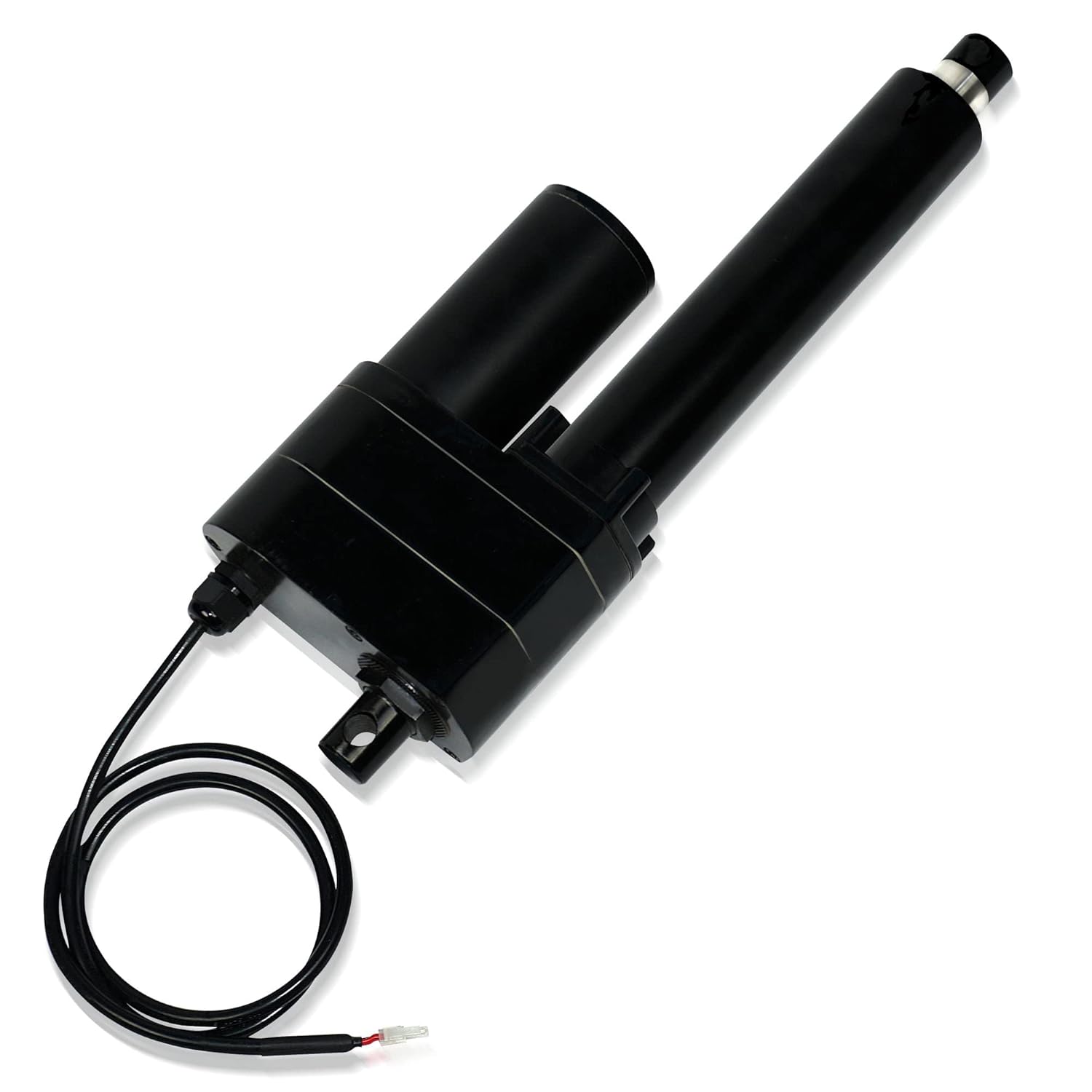

12V High Force Linear Actuator 20in Stroke - Heavy Duty Industrial

In this review of the PA-17 linear actuator the bottom line is simple: this is for technicians and fabricators who need a compact 12V actuator that can move heavy loads in demanding environments. The reviewer found the unit's single biggest advantage is raw pushing and holding strength combined with IP65 protection, which makes it suitable for outdoor or dusty industrial settings. Installation is straightforward thanks to the 2-wire motor and common Molex Mini-Fit Jr connector, and the industrial build gives confidence that the unit will tolerate rough use.

Key Features

• High Force: The actuator can push and pull up to 2000 lbs and hold up to 4000 lbs, providing ample capacity for heavy lifting and gate or plow applications.
• Durable Construction: A stainless steel shaft and metal gears deliver long service life and resistance to bending under load for heavy duty tasks.
• IP65 Protection: Rated for harsh environments so it resists dust and low pressure water jets, making it suitable for agricultural or outdoor machinery.
• Simple Operation: The brushed DC motor uses a 2-wire interface and a Molex Mini-Fit Jr 2-pin connector for easy integration with common 12V controllers.
• Overload Safety: A mechanical slip clutch provides overload protection while built-in adjustable limit switches help prevent overtravel in stroke lengths up to 24 in.
• Quality Assurance: Manufactured to ISO 9001 standards and backed by an 18 month warranty to support long-term reliability.

Who It's For

This actuator is best for farmers, fabricators, contractors, and equipment builders who need a robust 12V linear motion solution for gates, plows, RV drains, loaders, or solar trackers. The combination of high force, metal gears, and IP65 protection suits outdoor and industrial projects where exposure and heavy loads are common.

Those working on delicate laboratory devices or requiring ultra-quiet, low-vibration operation should look elsewhere; the PA-17 uses a brushed DC motor that prioritizes power and simplicity over silent operation. Also, projects needing strokes longer than 24 in should consider alternate models.

Pros & Cons

Pros

• Impressive force and holding capacity make it suitable for heavy duty industrial and agricultural uses.
• Solid build with stainless shaft and metal gearing improves longevity under load and in tough environments.
• IP65 rating and mechanical slip clutch add protection against dust, water exposure, and overloads.
• Easy to wire and integrate with a simple 2-wire motor and standard connector.

Cons

• Brushed DC motor design can be louder and less refined than high-end brushless units for noise-sensitive applications.
• Stroke lengths are limited to models up to 24 in, so very long travel requirements need a different solution.

Specifications

Voltage	12V DC
Stroke Length	20 in
Push/Pull Force	2000 lbs
Holding Capacity	4000 lbs
Protection Rating	IP65
Connector	Molex Mini-Fit Jr 2-pin
Warranty	18 months

Our Verdict

The PA-17 12V high force linear actuator is a strong value for users who need durable, heavy duty linear motion in outdoor or industrial settings. Its combination of metal gearing, stainless shaft, IP65 protection, and overload clutch make it dependable for agricultural and equipment projects, and the straightforward 2-wire interface keeps installation simple for most technicians.

Frequently Asked Questions

Can this actuator be used outdoors?
Yes, the IP65 rating protects against dust and low-pressure water jets, making it suitable for outdoor agricultural and industrial environments.

How is overload protection handled?
Overload protection is provided by a mechanical slip clutch and adjustable limit switches that prevent overtravel in supported stroke lengths.

What connector and current rating are used?
The actuator uses a Molex Mini-Fit Jr 2-pin connector with a 20A current draw rating for simple integration with common 12V controllers.
