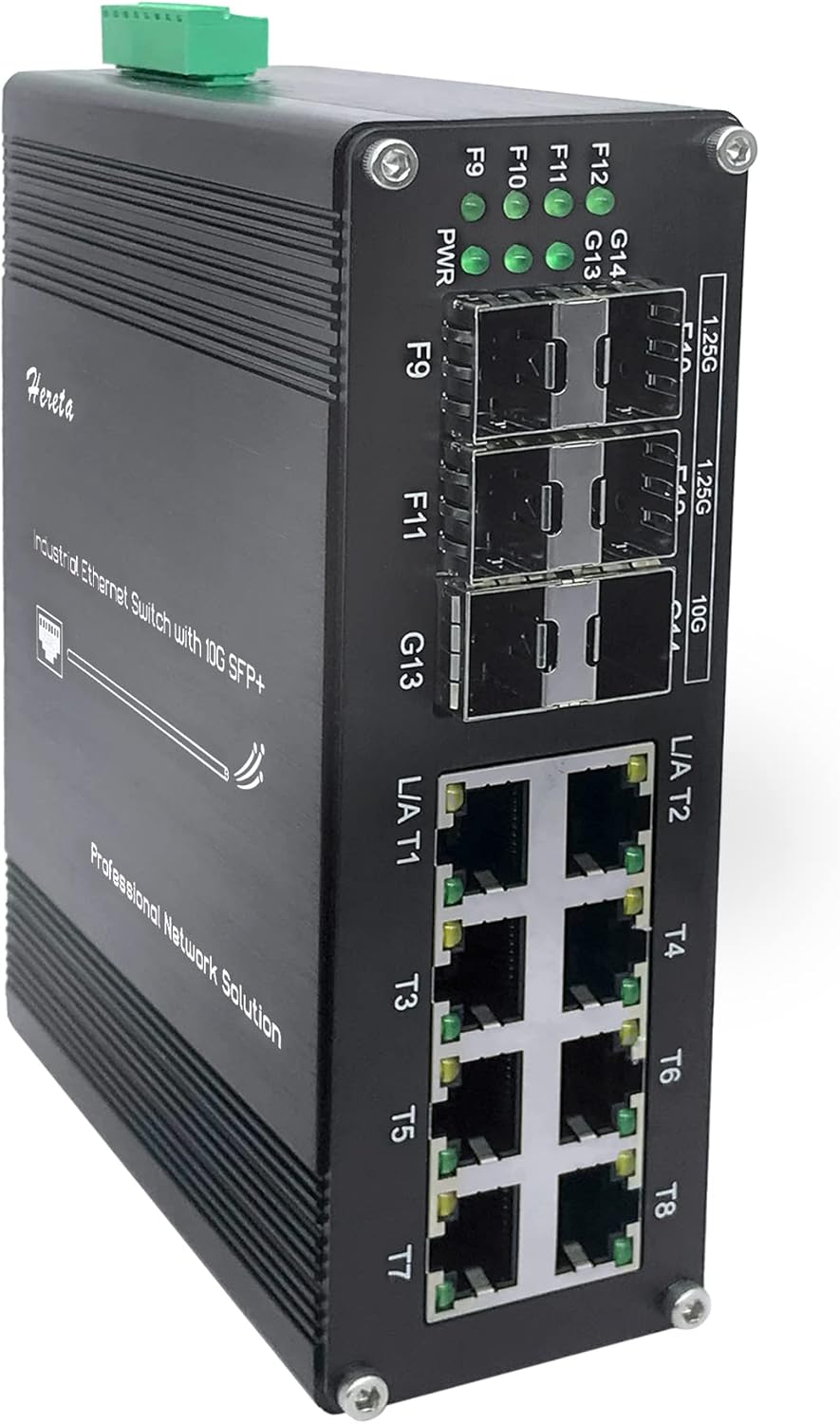

14-Port Industrial Gigabit Ethernet Switch - Hardened 10G Fiber

In this review the 14-Port Industrial Gigabit Ethernet Switch is evaluated as a practical choice for installers who need a hardened, mixed copper and fiber solution. The bottom line: it is best for industrial networks and remote sites that require a reliable, low-power switch with both 1G SFP and 10G SFP+ uplinks. The reviewer found setup straightforward, power options flexible with 12~48V DC dual-redundant input, and construction robust enough for harsh environments, making it a solid fit where durability and mixed media ports matter most.

Key Features

• Port mix: Eight 10/100/1000T RJ45 ports plus four 1.25G SFP slots and two 10G SFP+ ports deliver flexible copper and fiber connectivity for diverse device types.
• Wide power range: Dual redundant 6-pin terminal block supports 12~48V DC input which simplifies integration with common industrial power sources.
• Industrial durability: Aluminum case, dustproof IP40 rating and wide operating temperature mean the unit tolerates vibration, shock and harsh site conditions.
• Low power draw: Typical power consumption is modest (8W max), useful when power budgets are constrained at remote locations.
• Installation options: Includes a 35mm din-rail bracket and wall mount accessories so technicians can install in cabinets or on walls without extra hardware.
• Standards compliance: Supports IEEE 802.3az Energy Efficient Ethernet and 802.3x flow control plus 9K jumbo frames for improved throughput with large payloads.

Who It's For

This switch is aimed at network integrators and system installers deploying equipment for IP cameras, wireless access points and industrial automation in traffic control, factories, mines or remote field sites. Its hardened case and wide power input make it suitable where environmental stress and variable power are expected.

It is less appropriate for someone who needs a fully managed Layer 3 feature set or an office user who wants plug-and-play consumer switches with PoE on every port. Buyers should look elsewhere if advanced routing or per-port PoE management is required.

Pros & Cons

Pros

• Robust aluminum enclosure and IP40 protection provide reliability in industrial settings.
• Flexible port combination with 8 copper, 4 SFP and 2 SFP+ lets users mix copper and fiber without extra media converters.
• Dual redundant 12~48V DC inputs and low 8W power consumption suit remote installations.
• Easy installation with din-rail and wall mount accessories included.

Cons

• Not a full managed switch; advanced Layer 3 routing features are not part of the design.
• IP40 offers dust resistance but not full waterproofing, so outdoor exposed placement requires additional protection.

Specifications

Ports	8 x 10/100/1000T RJ45, 4 x 1.25G SFP, 2 x 10G SFP+
Power input	12~48V DC dual redundant (6-pin terminal block)
Power consumption	8W max
Enclosure	Aluminum case, IP40 dustproof
Mounting	35mm din-rail and wall mount accessories included
Temperature range	Wide operating temperature (industrial range)
Standards	IEEE 802.3az EEE, 802.3x flow control, 9K jumbo frame

Our Verdict

The 14-Port Industrial Gigabit Ethernet Switch is a practical, value-minded option for installers who need mixed copper and fiber connectivity in harsh environments. It delivers dependable physical design, flexible power inputs and a useful combination of 1G and 10G uplinks without excess power draw. Choose this unit for remote sites, industrial automation and camera networks where ruggedness and port flexibility matter more than advanced managed switching features.

Frequently Asked Questions

Does this switch support single-mode and multi-mode fiber?
Yes; the 1000Base-X ports accept 1 or 2 core single-mode or multi-mode fiber modules as indicated by the SFP support.

What mounting options are available?
The switch includes a 35mm din-rail bracket and wall mount accessories for flexible cabinet or wall installations.

Can it run from different DC voltages?
Yes; the unit accepts a wide 12~48V DC input and offers dual redundant power inputs via the terminal block.
