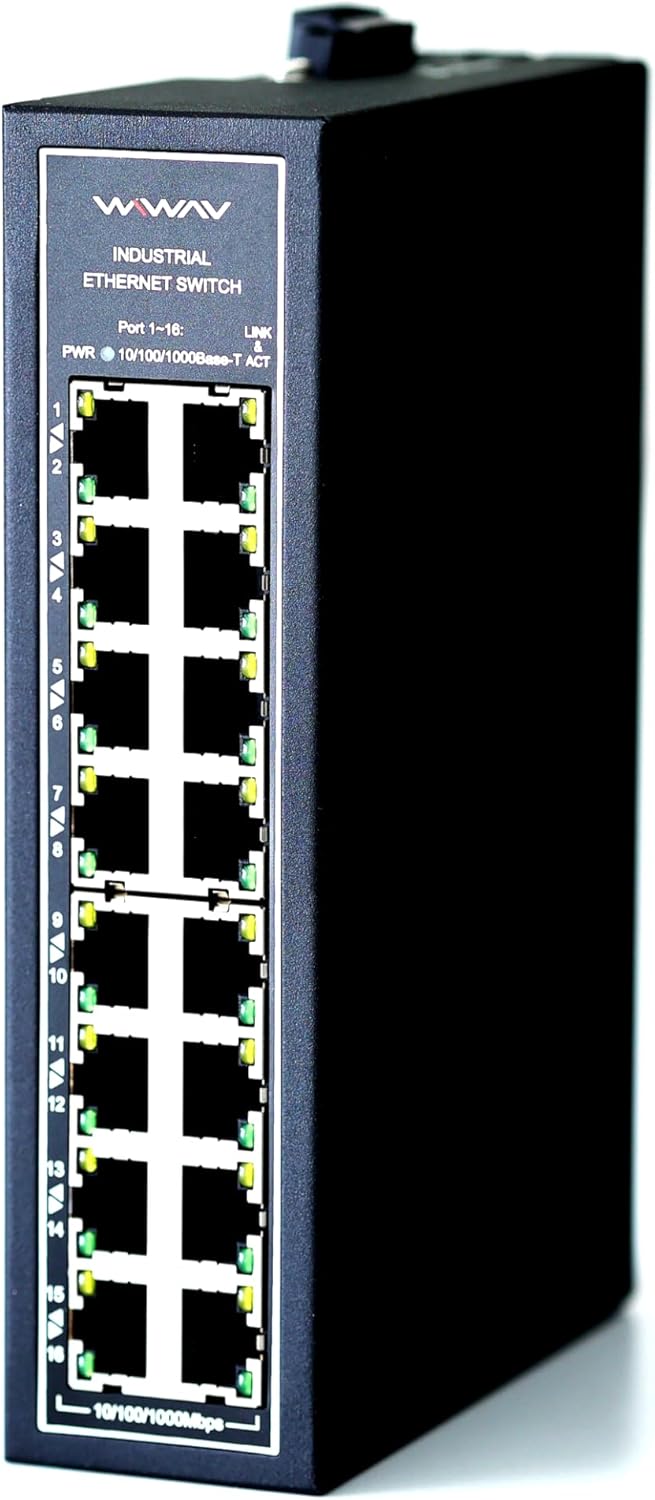

16-Port Gigabit Industrial Ethernet Switch WDH-16GT-DC - Rugged

In this review the WDH-16GT-DC is presented as a straightforward industrial network switch aimed at installers and system integrators who need a reliable, low-power, compact 16-port gigabit switch for harsh environments. The bottom line: it is a purpose-built, no-frills device that delivers 16 gigabit ports, simple plug-and-play operation and wide temperature tolerance, making it a solid choice when uptime and environmental tolerance matter more than advanced management features.

Key Features

• Compact DIN-rail design: The built-in bracket and IP30-rated housing let installers mount it on DIN rail or wall in tight industrial cabinets for tidy deployments.
• Full gigabit throughput: All 16 ports support 10/100/1000Mbps with automatic MDI/MDI-X crossover so mixed-speed devices connect without manual wiring changes.
• Wide DC input range: The terminal block accepts 12/24/36/48V DC and the package includes a DC-jack power pigtail and ground cables for flexible powering in control rooms and vehicles.
• Harsh-environment ready: Rated to operate from -30C to +75C, it is designed for factories, outdoor cabinets and other locations where temperature extremes occur.
• Safety certifications: UL, cUL, CE, FCC, PSE, REACH and RoHS listings provide reassurance about electrical safety and environmental compliance.
• Energy-efficient operation: Low power consumption and overload/reverse connection protection reduce heat and lower the risk of power-related failures.

Who It's For

The WDH-16GT-DC is best for industrial network installers, machine builders and infrastructure teams that need a rugged, unmanaged switch with reliable gigabit ports and DIN-rail mounting. It suits SCADA cabinets, factory floors, transportation cabinets and similar use cases where passive, maintenance-free switches are preferred.

It is not intended for users who require managed switching features such as VLANs, QoS configuration or SNMP monitoring. If advanced traffic control, Layer 3 routing or cloud management are required, a managed industrial switch would be a better fit.

Pros & Cons

Pros

• Rugged IP30 metal housing and DIN-rail bracket make installation easy in industrial environments.
• All 16 ports operate at gigabit speeds with auto MDI/MDI-X for simple plug-and-play connectivity.
• Wide 12-48V DC input and included pigtail/ground cables simplify powering in varied installations.
• Comprehensive safety and environmental certifications reduce compliance worries for installations.

Cons

• Unmanaged design means no VLANs, QoS or remote monitoring for complex network topologies.
• No internal power supply included, so installers must provide DC power source despite included pigtail.

Specifications

Ports	16 x 10/100/1000Mbps RJ45
Mounting	DIN rail / wall-mount with built-in bracket
Input Voltage	12/24/36/48V DC (terminal block)
Operating Temperature	-30C to +75C
Housing	IP30-rated rugged metal
Certifications	UL, cUL, CE, FCC, PSE, REACH, RoHS

Our Verdict

The WDH-16GT-DC is a dependable, cost-effective choice for industrial deployments that need full gigabit connectivity in a compact, rugged package. Installers who prioritize environmental tolerance, low power draw and simple plug-and-play operation will find strong value here; organizations needing managed switch features should consider a different model.

Frequently Asked Questions

Does this switch include a power supply?
The unit does not include an external power supply; it accepts 12/24/36/48V DC via the terminal block and includes a DC-jack power pigtail and ground cables for wiring.

Can it be mounted on DIN rail?
Yes, the switch has a built-in DIN-rail bracket and can also be fastened to a wall for flexible installation.

Is this switch suitable for outdoor cabinets?
It is rated for a wide operating temperature range (-30C to +75C) and a rugged IP30 metal housing, suitable for many outdoor and industrial cabinet applications but not for direct outdoor exposure without an enclosure.
