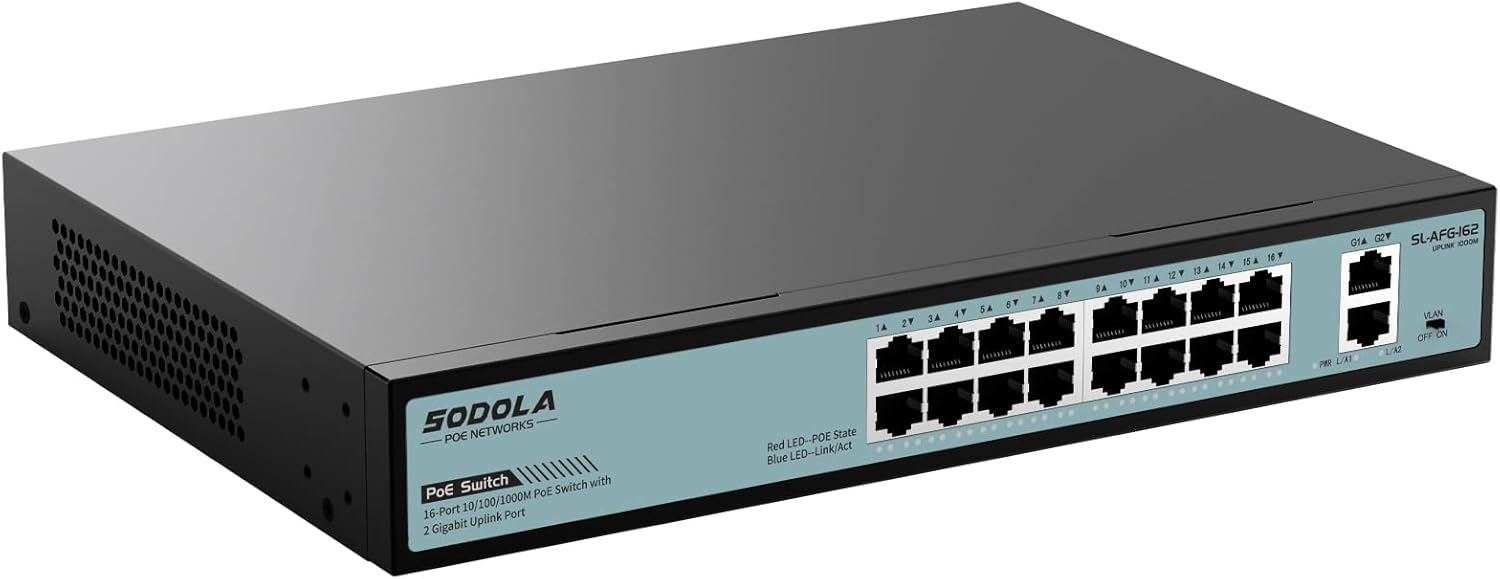

16 Port Gigabit PoE Switch 400W, 2 Uplink - Reliable Power for Cameras

In this review of the 16 Port Gigabit PoE Switch 400W, 2 Gigabit Uplink, the bottom line is simple: this unmanaged metal-cased switch is for small to medium surveillance and Wi-Fi deployments that need lots of powered ports without the fuss of configuration. The reviewer found it delivers a large 400W power budget and true plug-and-play operation, so installers and IT generalists can power multiple IP cameras or access points immediately and keep the network simple and quiet.

Key Features

• 16 PoE ports: Sixteen gigabit PoE ports provide both data and power on each connection, making it straightforward to deploy cameras and access points without separate power supplies.
• 2 gigabit uplinks: Two dedicated uplink ports let you connect to a router or core switch with full gigabit throughput for aggregated backhaul.
• 400W power budget: A high total output supports multiple AT devices at 30W so several higher-draw devices can run simultaneously without power shortages.
• VLAN port isolation: Fixed VLAN mode isolates PoE ports from each other and restricts traffic to the uplink, reducing local congestion and improving security between endpoints.
• Unmanaged plug-and-play: No configuration is required; devices are detected automatically so installation is fast and accessible for non-specialists.
• Metal rackmount design: A 1U metal case gives a compact, quiet rack mount option for wiring closets and small server racks.

Who It's For

This unit is aimed at small businesses, installers, and homeowners building multi-camera surveillance systems or extending wired power to multiple access points and VoIP phones. The combination of 16 powered ports and a 400W supply makes it particularly useful where several AT-class devices must run concurrently.

It is not for networks that require managed features such as VLAN tagging configuration, SNMP monitoring, or per-port bandwidth controls; those who need fine-grained managed switching should look at managed switches instead. Also, if you need PoE passthrough to chain non-PoE devices without separate power, plan to supply external power or use a PoE splitter.

Pros & Cons

Pros

• High 400W power budget reliably supports multiple 30W AT devices at once.
• Simple plug-and-play setup makes deployment fast with no configuration needed.
• Port isolation via fixed VLAN reduces local traffic collisions and improves endpoint security.
• Quiet metal 1U rackmount form factor fits neatly into wiring closets.

Cons

• Unmanaged design means advanced network controls and monitoring are not available.
• When connecting non-PoE devices the switch only transmits data and cannot power those devices without external power or a splitter.

Specifications

Ports	16 PoE gigabit ports, 2 gigabit uplink ports
PoE Standard	IEEE 802.3af/at
Power Budget	400W total
VLAN Mode	Fixed port isolation (PoE ports isolated from each other)
Form Factor	1U metal rackmount, unmanaged
Auto Features	10/100/1000M auto negotiation, Auto MDI/MDIX

Our Verdict

This 16 port gigabit PoE switch is a practical, cost-effective choice for deployments that prioritize powered port density and simplicity. It delivers strong power capability, quiet operation, and easy installation, making it a good value for surveillance and AP expansion projects where managed features are not required.

Frequently Asked Questions

Can this switch power 30W devices on all ports?
Yes, the switch supports IEEE 802.3at and has a 400W budget so multiple ports can deliver up to 30W depending on total draw.

Do PoE ports talk to each other when VLAN mode is on?
No, when the fixed VLAN port isolation is enabled PoE ports cannot communicate with each other and only reach the uplink.

Is any configuration required to start using the switch?
No, it is unmanaged and plug-and-play; just connect power and network cables and attached devices are detected automatically.
