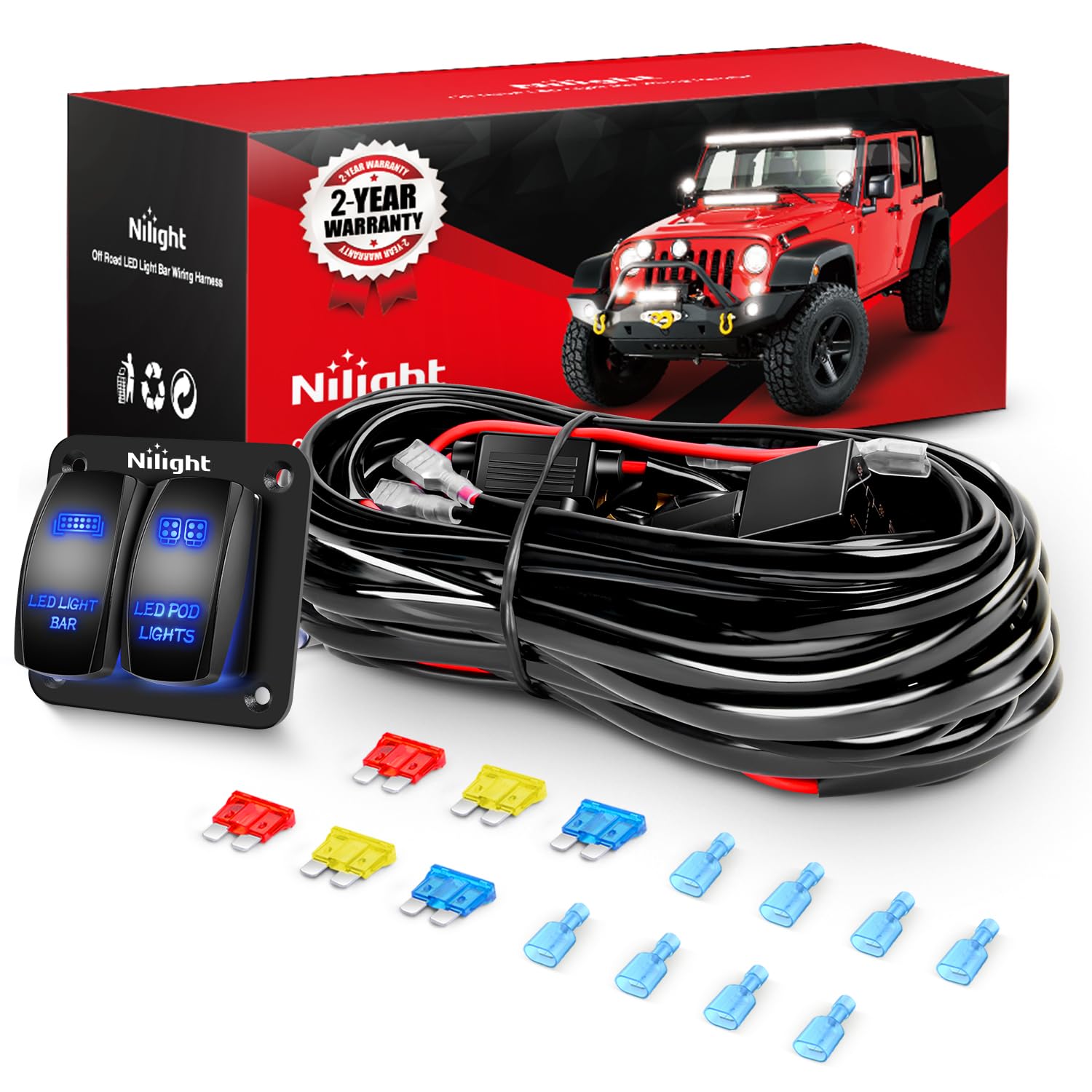

16AWG LED Light Bar Wiring Harness Kit 12V 2 Gang Switch Panel - Dual

Our review of this 16AWG LED light bar wiring harness finds it is best suited for DIYers and vehicle owners who need a simple, durable dual-circuit lighting solution. The single biggest reason to buy is its heavy-duty 16AWG stranded wiring combined with built-in protection: a power relay and inline blade fuse provide a clear first line of defense against overcurrent and short circuits while still allowing up to 180W per circuit. For anyone wiring multiple light bars on cars, ATVs, boats or trailers, this kit balances ease of installation with reliable components.

Key Features

• Heavy-duty harness: 16AWG stranded wire supports up to 360W total so it can handle most 12V lighting loads without overheating.
• Dual circuit design: The 2 gang rocker switch panel lets each switch control an independent circuit, making it easy to split front and rear lights or separate accessories.
• Built-in protection: A power relay and inline blade fuse protect the harness as the first defense against overcurrent and shorts, improving safety for vehicle wiring.
• Durable switches: The rocker switches feature a blue indicator light and laser-etched markings and are rated for repeated use, having passed longevity testing.
• Included connectors: The kit ships with blade fuses and spade connectors so users receive the essential hardware needed to complete a straightforward install.

Who It's For

This wiring harness is aimed at owners of 12V vehicles who want a tidy dual-switch solution without custom wiring work, including automotive cars, campers, RVs, ATVs, UTVs, motorcycles and boats. It is especially useful for people adding multiple LED light bars or separating lighting circuits for front and rear setups.

Those who should look elsewhere include users running 24V systems without changing the relay or installers who require integrated dimming, waterproofed switch enclosures, or higher amperage continuous loads than the stated 180W per circuit. Professional fabrication shops may prefer a fully custom harness for complex installs.

Pros & Cons

Pros

• Sturdy 16AWG stranded wiring offers reliable current capacity for typical 12V lighting projects.
• Two independent switches with indicator lights make operation intuitive and allow multiple lights to be managed separately.
• Includes relay, inline blade fuse and connectors for safer, plug-and-play style installation.
• Good value for a basic dual-circuit lighting harness and praised by customers for ease of installation.

Cons

• Wire length and fit may not suit every vehicle layout, so additional wiring or extension may be required.

Specifications

Wire gauge	16AWG stranded
Load capacity	Up to 360W total (180W per circuit)
Switches	2 gang rocker switches with blue indicator lights
Protection	Power relay and inline blade fuse
Leads	4 leads (two per switch)
Included accessories	Blade fuses and spade connectors
Operating voltage	12V systems (24V requires relay replacement)

Our Verdict

For hobbyists and vehicle owners needing a straightforward dual-circuit lighting harness, this 16AWG kit is a sensible choice: it combines robust wiring, protective relay and fusing, and a clear two-switch layout at a practical price. It is good value for most 12V light bar installs, though installers should confirm wire length and circuit capacity for larger setups.

Frequently Asked Questions

Can this harness handle two light bars?
Yes, it supports two independent circuits and up to 180W per circuit, so it can run two light bars provided each circuit stays within that limit.

Is the switch panel waterproof?
The switch panel has durable laser-etched markings and indicator lights, but waterproofing is not specified; use in exposed marine or offroad locations may require additional sealing.

Will it work on a 24V vehicle?
Not directly; the harness is designed for 12V systems and a 24V application would require replacing the original 12V relay with a 24V relay.
