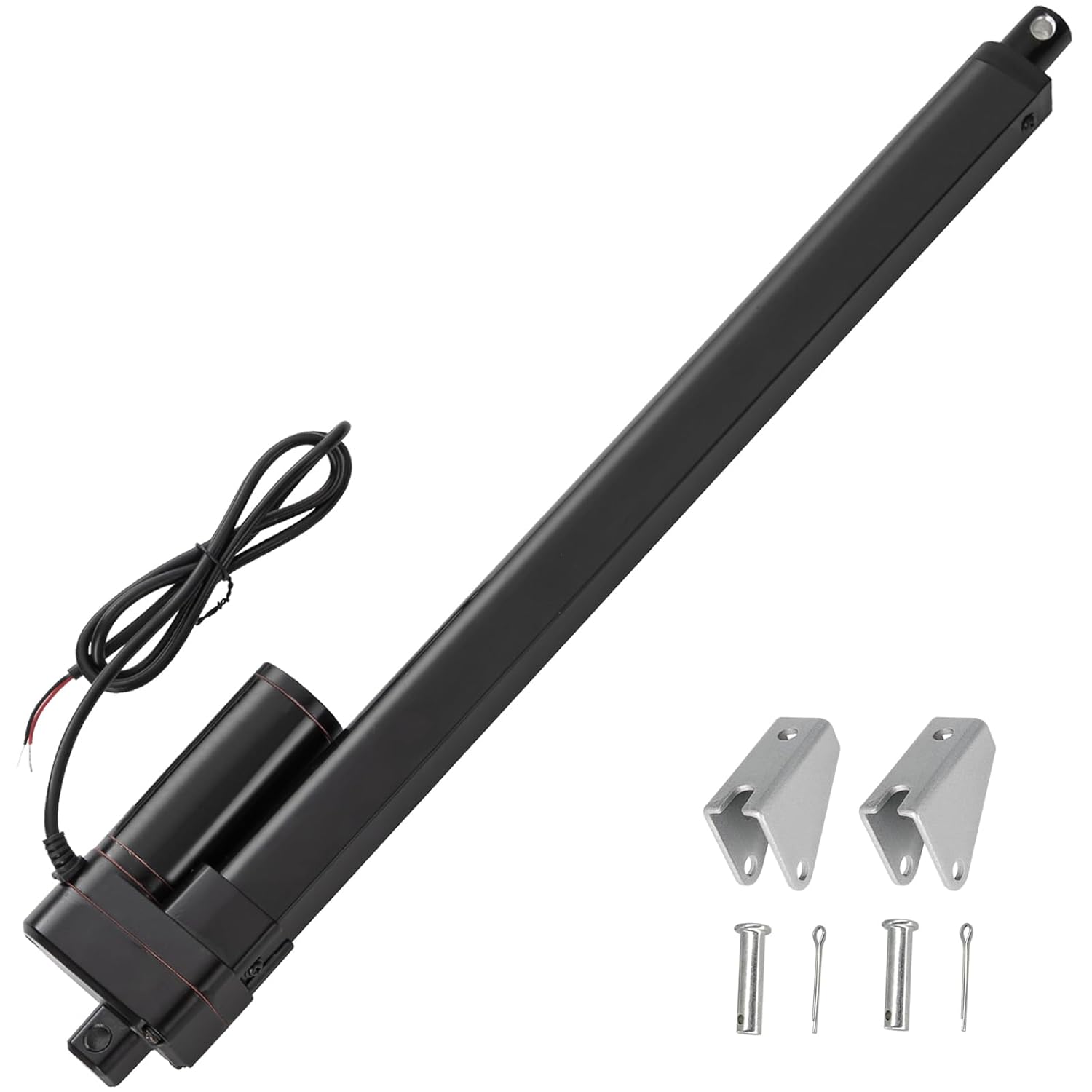

18 Inch Stroke Linear Actuator 12V Heavy Duty 440lbs - Waterproof

In this review the 18 in stroke linear actuator is evaluated for practical projects that need a robust, electrically driven lift. It is aimed at DIY fabricators, small workshop builders, and light industrial users who need a compact 12V actuator with a proven lifting capacity and reliable stopping. The single biggest reason to consider this unit is its combination of 440lbs push force, self-locking motor and built-in limit switches, which let it hold loads securely and stop automatically at travel endpoints while remaining suitable for outdoor use.

Key Features

• 12V DC Power: Runs from a common 12V supply allowing easy integration with vehicle, solar, or battery systems for mobile or off-grid setups.
• 18 in Stroke: Provides 450mm of linear travel and a long working range useful for lifting, tilting or extending components in many applications.
• 440lbs Maximum Push: Delivers strong force for heavy panels and structures while the actuator retains a pulling capability to retract loads.
• Self-locking and Limit Switches: Stops at any position and automatically halts at fully retracted and extended positions for safer, maintenance-free operation.
• IP65 Waterproof Rating: Protected from dust and low-pressure water jets so it can be used outdoors or in damp environments without immediate corrosion risk.
• Quiet Operation: Plastic gear train and aluminum housing keep noise below 50dB and offer stable, low-vibration movement under load.

Who It's For

This linear actuator is a good fit for hobbyists building electric benches, small hoists, adjustable furniture such as electric sofas and beds, or for installers adding motion to solar trackers and sunroofs. Its 12V input and included mounting brackets speed installation for users who need a compact, straightforward actuator with decent force.

It may be less suitable for applications that require very high speed or continuous duty at maximum load, and users requiring specialized control electronics or integration into heavy industrial automation should evaluate duty cycle and control needs separately.

Pros & Cons

Pros

• Strong lift capacity of up to 440lbs provides dependable force for many lifting tasks.
• Built-in limit switches and self-locking motor enhance safety and make installation simpler.
• IP65 protection and aluminum alloy construction offer weather resistance for outdoor use.
• Quiet plastic gear operation keeps noise low during movement.

Cons

• Speed is modest at 0.31 in/sec, so motions are noticeably slow for large travel lengths.
• Maximum current draw and duty cycle details are limited, so continuous high-load duty should be verified for demanding industrial use.

Specifications

Voltage	DC 12V
Stroke length	18 in (450mm)
Retracted / Extended	23 in (590mm) / 41 in (1040mm)
No-load speed	0.31 in/sec (8mm/s)
Maximum push force	440lbs (2000N)
Maximum current draw	5A
Protection class	IP65

Our Verdict

The 18 in stroke 12V linear actuator delivers solid value for DIY builders and light industrial users who need a weatherproof, self-locking actuator with substantial push force. It stands out for its safety features and build quality, though its moderate speed means it is best for applications where strength and reliability matter more than high actuator velocity.

Frequently Asked Questions

Can this actuator be used outdoors?
Yes, the IP65 rating and aluminum alloy housing make it suitable for outdoor and damp environments when mounted correctly.

How fast does it move under no load?
It moves at about 0.31 in/sec (8mm/s) with the no-load speed specified by the manufacturer.

Does it include mounting hardware?
The package includes one actuator and two mounting brackets to simplify installation.
