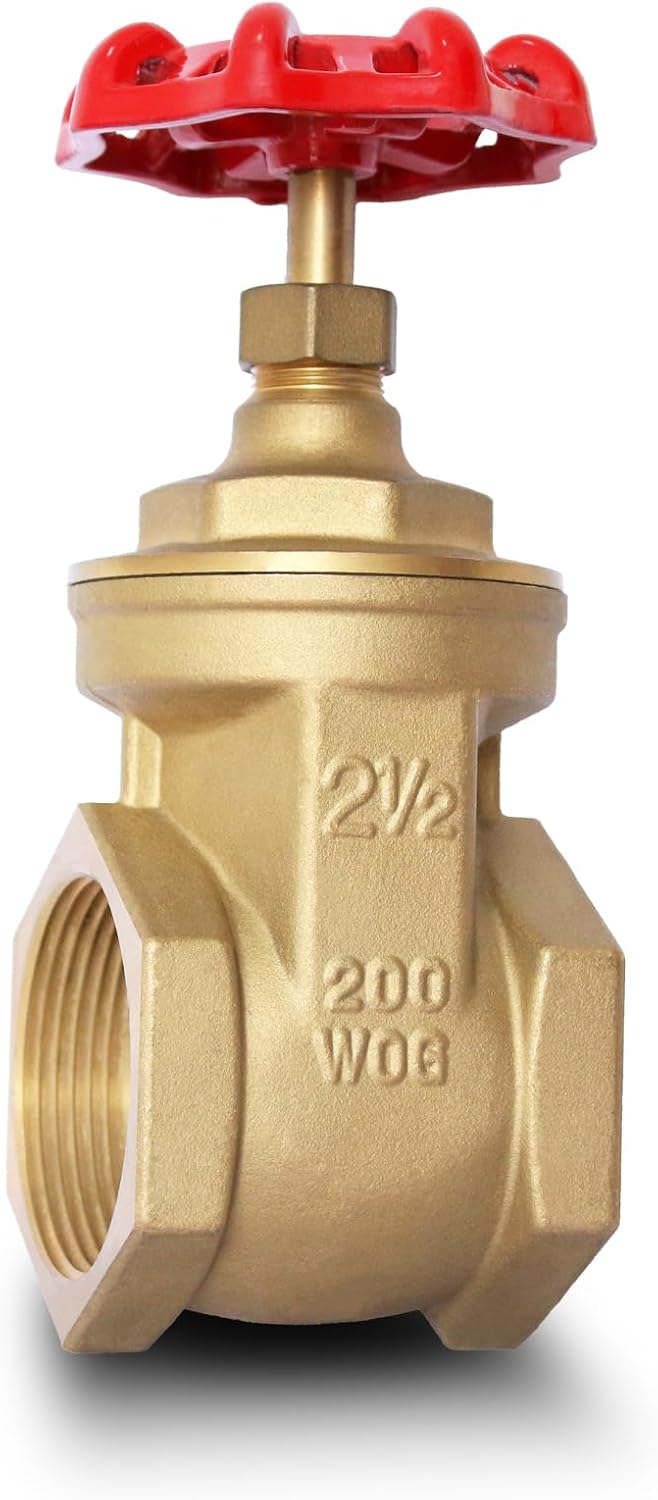

2-1/2ft NPT Brass Gate Valve - Heavy Duty Manual Rotary Sluice Valve

In this review of the 2-1/2' NPT Brass Gate Valve, the bottom line is simple: it is a heavy duty, no-nonsense gate valve best suited for plumbing and industrial runs that need a straightforward shutoff with minimal flow restriction. The reviewer found the full bore design and NPT threads deliver good compatibility and a tight seal in most installations, while the brass construction promises durability. It is most appealing to technicians and DIYers who need a robust valve for water, oil or non-corrosive gas lines and value a solid mechanical build over specialty features.

Key Features

• Full bore design: The gate moves perpendicular to flow so the valve does not limit throughput and keeps pressure drop low.
• NPT threaded ends: Tapered male-female compatibility ensures a tight connection and easier mating with common threaded piping.
• Brass construction: A pressure-resistant, wear-resistant body gives long service life in typical plumbing and industrial environments.
• Polished inner wall: Smooth internal surfaces reduce scaling and clogging risk for cleaner flow over time.
• Wide temperature range: Rated for use from -20C to +150C so it handles common water, oil and non-corrosive gas media in varied climates.

Who It's For

This valve suits plumbers, HVAC technicians and industrial maintenance staff who need a sturdy manual sluice valve for medium-pressure systems. Its robust brass body and full bore make it useful where uninterrupted flow and low resistance are important, such as supply lines, oil feed lines and many service connections.

It is less appropriate for corrosive chemical services, extremely high-pressure systems beyond the specified rating, or automated systems that require actuated valves; in those cases users should select specialized materials or actuated gate or ball valves instead.

Pros & Cons

Pros

• Solid brass body delivers good durability and resistance to wear in normal service.
• Full bore and perpendicular gate motion minimize flow restriction and pressure loss.
• Polished internal finish helps prevent scaling and keeps passage clear.

Cons

• Some users report inconsistent shutoff performance, so fine adjustment or seat inspection may be needed for leak-tight installations.

Specifications

Size	2-1/2' (DN65)
Thread type	NPT female x female
Material	Brass
Max working pressure	1.6 MPa / 232.06 psi
Temperature range	-20C to +150C (-4F to 302F)
Suitable media	Water, oil, non-corrosive flammable gas

Our Verdict

The 2-1/2' NPT Brass Gate Valve is a dependable, cost-conscious choice for general plumbing and industrial use where a manual full bore shutoff is required. It offers durable brass construction and good flow characteristics, representing strong value for teams that need simple, long-lived valves; those needing perfect shutoff or specialized materials should verify seat performance or choose a different valve type.

Frequently Asked Questions

Is this valve suitable for potable water?
Yes, the brass construction is commonly used for water lines, but verify local codes and lead content requirements before potable installations.

Can it be used with flammable gases?
It is rated for non-corrosive flammable gas within the specified pressure and temperature limits, but installation should follow applicable safety codes.

What should I do if the valve does not fully shut off?
Check thread seals and seating surfaces, ensure the valve is fully operated by the wheel handle, and inspect the gate for debris or wear; replacement or professional servicing may be necessary.
