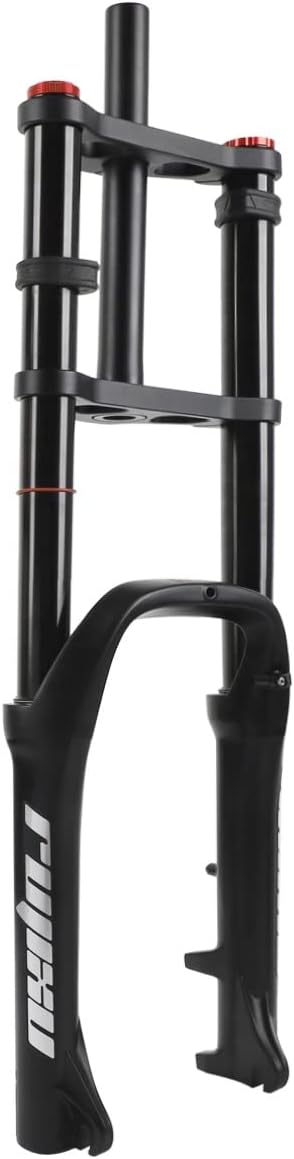

20 Inch Fat Fork 4.0 in Tire Air Suspension Fork 140mm Travel

In this review of the 20 inch fat fork from RUJIXU, the bottom line is simple: it is built for riders who need a strong, adjustable front end for 20 in snow bikes, electric conversions, and fat tire mountain rides. The single biggest reason to buy is the combination of a magnesium aluminum alloy construction with a 140mm air suspension stroke and adjustable damping, which delivers predictable cushioning across varied surfaces while fitting common 1-1/8 in headtubes. This review focuses on real-world fit, ride feel, and the practical details that matter when swapping or upgrading a fat bike fork.

Key Features

• Air suspension with 140mm travel: Provides deep, tunable travel for absorbing bumps and giving a smoother ride on rough trails and snowy tracks.
• Damping adjustment: Lets the rider fine tune rebound and compression for different terrain and load, useful for both electric conversions and unloaded riding.
• Magnesium aluminum alloy construction: Keeps the fork robust but relatively light for a fat bike application, improving handling without excessive weight penalty.
• 4.0 in tire clearance: Designed for wide fat tires to increase traction and flotation on snow, sand, and loose surfaces.
• Double shoulder disc brake mount with adjustable shoulder height: Accommodates disc brake setups and allows flexible caliper positioning for different rotor sizes.
• Standard 1-1/8 in headtube and 9x135mm QR axle: Fits common frames and wheel standards used in many 20 in fat and electric bike conversions.

Who It's For

This fork is aimed at riders converting a 20 in frame to an electric bike or upgrading a fat snow bike who need a reliable, long-travel front fork with wide tire clearance. Trail riders who encounter loose, soft terrain and commuters who want more cushioning on rough winter roads will benefit from the 140mm travel and adjustable damping.

It is less suitable for riders who need a lightweight cross-country race setup or frames that use a tapered headtube or nonstandard axle spacing; those users should look for a fork matched specifically to their frame standards and race-focused geometry.

Pros & Cons

Pros

• Robust alloy construction paired with air suspension gives a good balance of strength and tunability for fat tire use.
• Wide 4.0 in tire compatibility provides excellent flotation on snow and sand.
• Adjustable damping and 140mm travel allow the fork to be tailored to different loads and terrain.

Cons

• Uses a 1-1/8 in straight headtube and 9x135mm QR axle, so it will not fit frames requiring tapered steerer tubes or thru-axles without adapters.

Specifications

Model fit	20 in fat/snow/electric bikes
Headtube	28.6x270mm (1-1/8 in)
Travel	140mm
Travel tube	34x180mm
Fork width	135mm
Axle	QR 9mm (9x135mm)
Tire compatibility	Up to 4.0 in fat tires

Our Verdict

The RUJIXU 20 in fat fork is a practical upgrade for riders converting 20 in frames to electric or needing a capable suspension fork for snow and soft-surface riding. Its 140mm air travel, adjustable damping, and wide tire clearance deliver value for riders prioritizing traction and comfort over weight savings, provided the frame uses a 1-1/8 in headtube and QR axle standard.

Frequently Asked Questions

Will this fork fit my 20 in electric bike frame?
It fits frames with a 1-1/8 in straight headtube and 135mm rear spacing using a 9mm QR axle; tapered headtubes or thru-axles need adapters or a different fork.

What tire size can I run?
The fork is designed for up to 4.0 in fat tires for good flotation on snow and sand.

Does the fork include any mounting hardware?
Packaging includes the 20 in air suspension fork x1; additional adapters, headset parts, or axle hardware are not listed and may be required for some frames.
