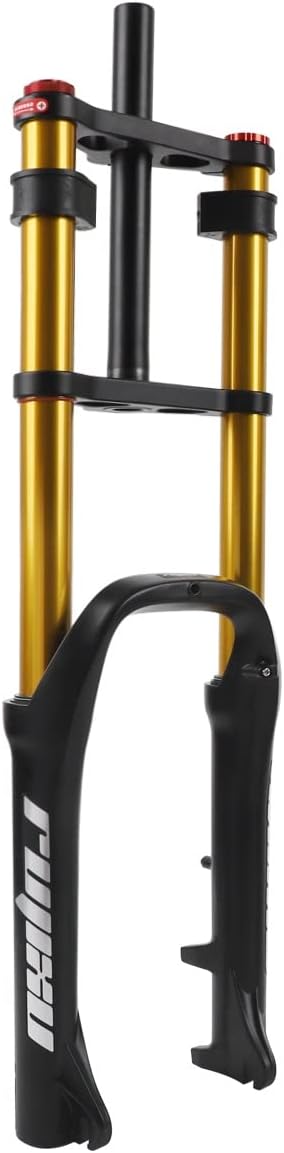

20 Inch Fat Fork 4.0 Tire Air Suspension Fork 140mm Travel - Durable

In this review of the 20 Inch Fat Fork 4.0' Tire Disc Brake Travel 140mm MTB Bike Air Suspension Fork, the bottom line is clear: riders converting a 20 in snow bike or electric fat bike who need robust, adjustable suspension will appreciate this fork. The reviewer found it best for fat tire use and rough terrain thanks to the 140mm travel and air damping, and the build materials and QR axle make it a practical upgrade for many conversion kits. It is a functional, no-frills fork that focuses on control and compatibility rather than lightweight racing performance.

Key Features

• Air suspension: The fork uses an air spring with adjustable damping so riders can tune rebound and compression for different trails and loads.
• Long travel: With 140mm of travel the fork smooths larger bumps and improves comfort on snow, sand, and rough singletrack.
• Fat tire ready: Designed for 4.0 in fat tires, it increases traction and float on soft surfaces for electric and snow bikes.
• Disc brake compatibility: Double shoulder disc brake mounts and a robust magnesium aluminum alloy construction support consistent stopping and braking setup options.
• Conversion friendly: The 1-1/8 in headtube and 9x135mm QR axle size match common electric bike conversion frames and hubs for easier installation.
• Adjustable shoulder height: The shoulder height can be adjusted during installation to better match frame geometry and rider preference.

Who It's For

This fork is aimed at riders converting e-bikes or building 20 in fat bikes who need a stout, adjustable front end for snow, beach, or mixed-surface riding. Commuters who occasionally ride soft or uneven surfaces and riders who want a durable suspension solution for heavy fat tires will find the specifications-4.0 in tire clearance and 140mm travel-well suited to those conditions.

It is not targeted at lightweight cross-country racers who prioritize minimal weight and ultralight components; those riders should look for a purpose-built XC fork. Also, very small frame sizes or headtube standards other than 1-1/8 in will require adapters or a different fork choice.

Pros & Cons

Pros

• Sturdy magnesium aluminum alloy construction provides a durable platform for fat tire use.
• Air suspension with rebound adjustment allows tuning for different loads and terrain.
• Compatibility with 4.0 in tires and double shoulder disc brakes makes it versatile for snow and electric conversions.
• Includes standard 1-1/8 in headtube and 9x135mm QR axle for straightforward installation on many frames.

Cons

• Heavier and bulkier than lightweight race forks, so not ideal for riders prioritizing low weight.
• Limited to the specified 1-1/8 in headtube and 135mm width without additional adapters.

Specifications

Wheel size	20 in
Tire clearance	4.0 in
Travel	140mm
Headtube	28.6x270mm (1-1/8 in)
Fork width / axle	135mm, QR axle 9mm
Travel tube	34x180mm
Material	Magnesium aluminum alloy

Our Verdict

The 20 Inch Fat Fork is a practical choice for riders who need a rugged, adjustable front suspension for 4.0 in fat tires and electric conversions; its 140mm travel and air damping give tangible improvements in comfort and control on soft or rough terrain. It represents good value for builders and converters who want a dependable, heavy-duty fork rather than a lightweight race component.

Frequently Asked Questions

Will this fork fit my fat tire frame?
It fits frames and wheels using a 1-1/8 in headtube and 135mm QR axle spacing; check your frame spec before purchase.

Can the suspension be tuned for heavy riders?
Yes, the air suspension and rebound adjustment allow tuning for heavier loads and different riding conditions.

Does the package include any extra parts?
Packaging includes the 20 in air suspension fork x1; additional adapters or hardware may be required for some frames.
