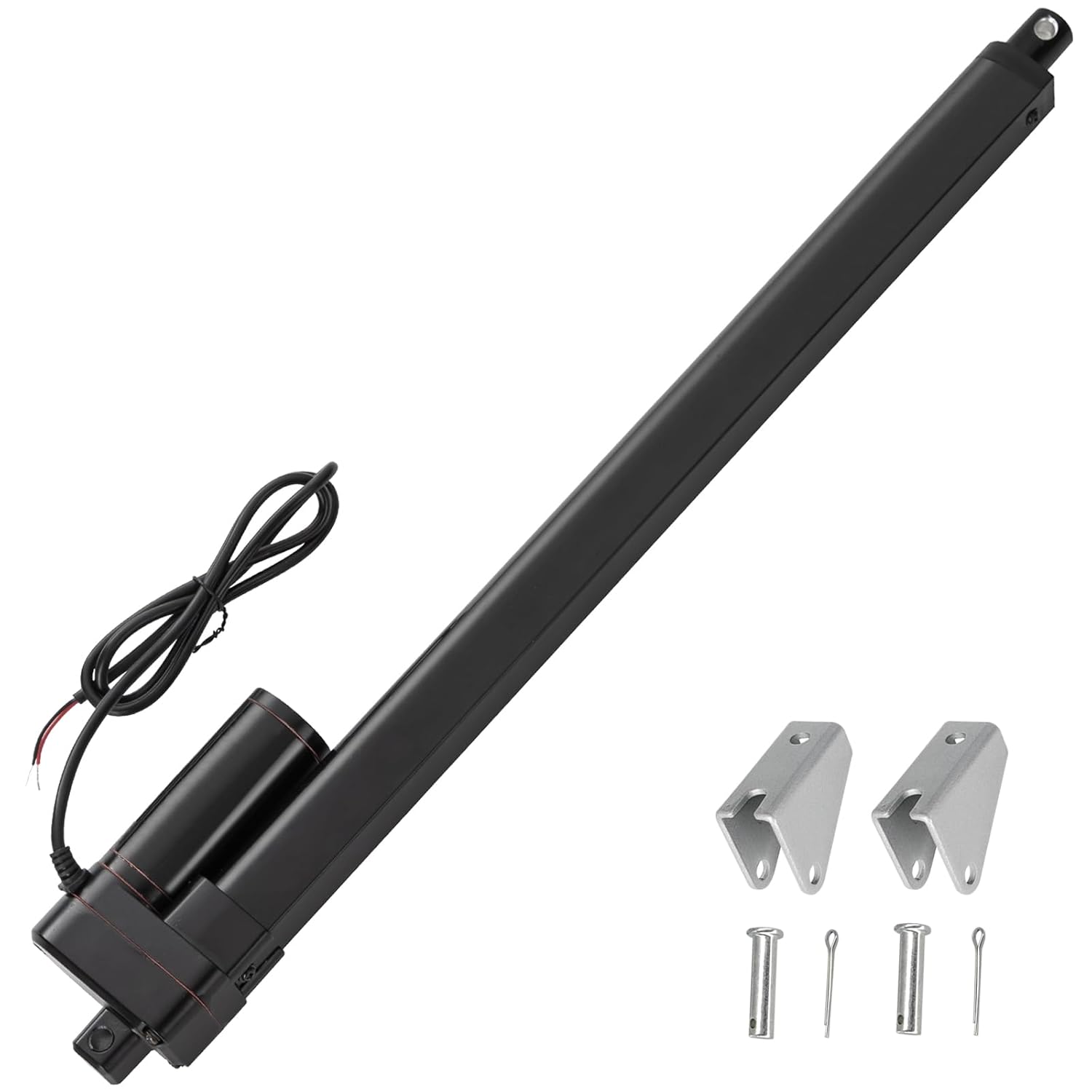

20 Inch Stroke Linear Actuator 12V Heavy Duty 440lbs - Waterproof

Our review of this 20 in stroke linear actuator finds it best suited for DIY fabricators, solar tracker builders, and light industrial use where a strong, weatherproof push/pull device is required. The single biggest reason to buy is the actuator's combination of a long 20 in stroke and a substantial 440 lb push capacity in a compact electric package, plus IP65 protection for outdoor mounting. It is a practical, no-frills electric actuator for projects that need reliable lift force and simple built-in stop controls.

Key Features

• 12V DC operation: Works with common 12V systems, making it easy to power from batteries or vehicle power for mobile and off-grid applications.
• 20 in stroke length: The 500 mm travel gives a long range of motion without requiring a longer retracted footprint, useful for bigger adjustments and extended reach.
• 440 lb maximum push: Delivers up to 2000 N of force for lifting and adjusting medium-weight loads such as panels, platforms, and adjustable furniture.
• Built-in limit switches and self-locking: Stops automatically at the top and bottom of travel and holds position without continuous power, improving safety and simplicity.
• IP65 waterproof rating: Weather-resistant construction allows outdoor use on solar trackers, roof-mounted mechanisms, and other exposed installations.
• Quiet plastic gear drive: Operates under 50 dB in most conditions, reducing noise when used around living spaces or work areas.

Who It's For

This actuator is aimed at hobbyists and small-scale professionals who need a robust linear drive for lifting, tilting, or pushing tasks. It is particularly useful for solar tracker systems, adjustable bases for equipment, and retrofit applications like electric beds or sofas where a long stroke and decent load capacity are required.

Those who need extremely high speed or industrial-grade continuous duty in heavy production environments should look elsewhere; similarly, applications requiring precise servo control or integrated position feedback beyond the basic limit stops will need a different, more advanced actuator.

Pros & Cons

Pros

• High lift capacity with a 440 lb push rating suitable for many lifting tasks.
• Long 20 in stroke gives extended travel while keeping a compact retracted length.
• IP65 waterproofing and aluminum construction allow outdoor and rugged use.
• Quiet operation and self-locking limit switches add convenience and safety.

Cons

• Speed is modest at about 0.31 in/sec, which some users describe as slow for fast actuation needs.
• No integrated position feedback beyond the built-in end stops, limiting precision control.

Specifications

Voltage	DC 12V
Stroke length	20 in (500 mm)
Fully retracted / extended	26 in / 46 in (650 mm / 1150 mm)
No load speed	0.31 in/sec (8 mm/s)
Maximum push load	440 lbs (2000 N)
Maximum current draw	5 A
Protection class	IP65

Our Verdict

The 20 in stroke 12V linear actuator is a solid choice for DIY builders and light industrial users who need a long stroke and strong push force in a weatherproof package. It is good value for projects that prioritize lift capacity and durability over speed or advanced position feedback, making it a reliable component for solar trackers, adjustable furniture, and similar applications.

Frequently Asked Questions

Can this actuator be used outdoors?
Yes. The IP65 rating and aluminum housing make it suitable for outdoor installations where it may be exposed to dust and water spray.

How fast does it move under no load?
Its no load speed is about 0.31 in/sec (8 mm/s), which is adequate for many adjustments but slower than high-speed actuators.

Will it hold position when power is removed?
Yes. The actuator has a self-locking function and built-in limit switches, so it will hold position without continuous power at the ends and resist back-driving under load.
