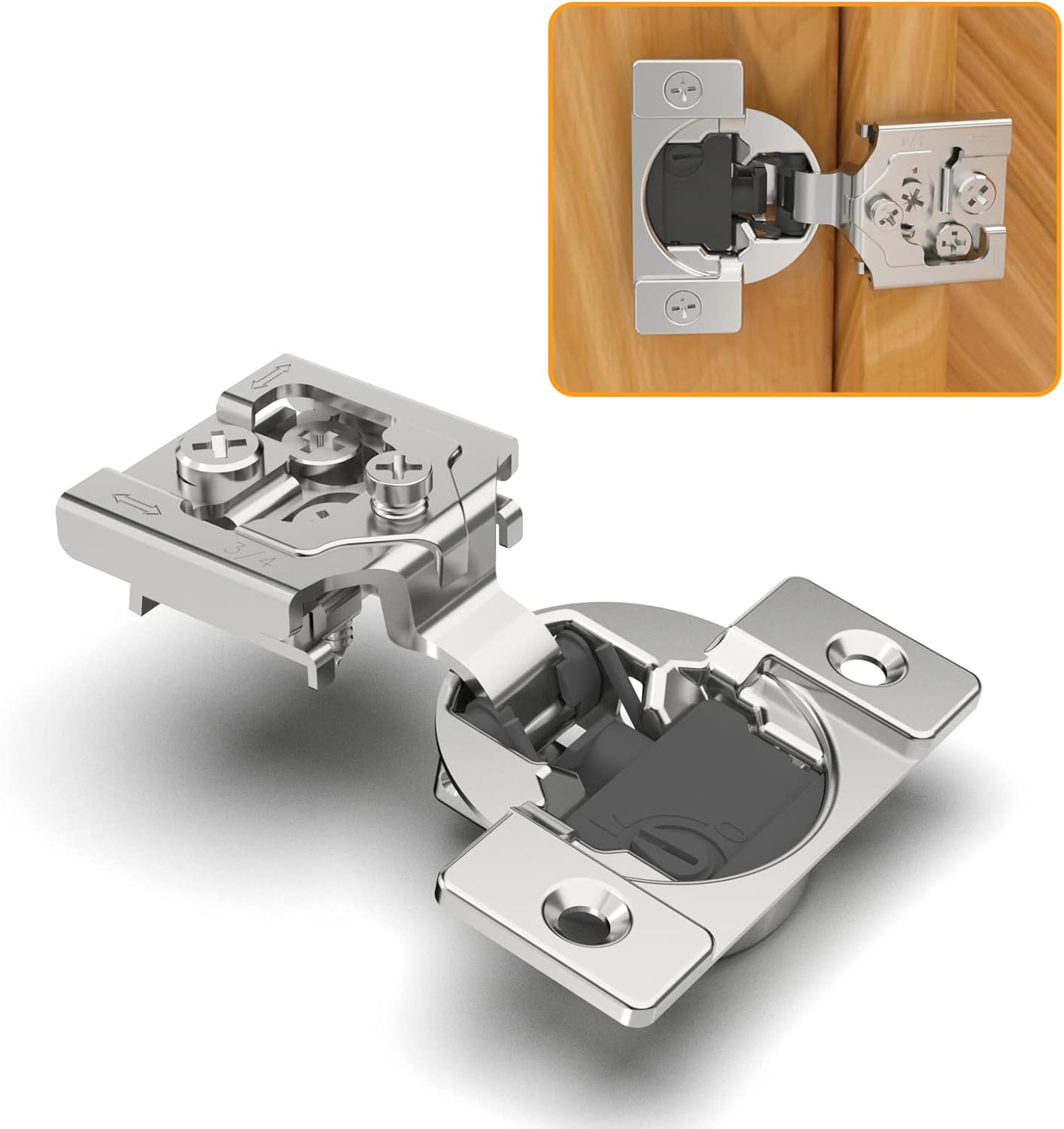

20 Pack 3/4 in Overlay 4D Soft Close Concealed Cabinet Hinges - Smooth

Our review of these 20 pack 3/4 in overlay 4D soft close concealed hinges finds them best suited for homeowners and DIYers who want a durable, adjustable replacement hinge with a reliable soft close. The single biggest reason to buy is the adjustable 4D mechanism combined with a built-in POM damper, which lets installers fine-tune vertical, horizontal, depth and closing speed so doors align and close quietly. Installation is straightforward with the supplied dowels and self-tapping screws, and the stainless steel construction with satin nickel finish feels sturdier than economy hinges.

Key Features

• Installation specification: The 35mm cup diameter and 11.5mm cup depth plus 45mm screw spacing match common cabinet preparations for an easy swap.
• Soft close damper: Built-in POM damper reduces closing speed and noise, protecting doors and fingers with a small soft close angle.
• 4D adjustability: Vertical, horizontal, depth and adjustable closing speed (0-7s) let you align doors precisely without removing them.
• Durable finish: Double electroplated steel with satin nickel top and brass-plated bottom resists wear and looks appropriate on kitchen cabinets and wardrobes.
• Complete hardware: Each hinge includes 2 dowels and 3 self-tapping wood screws so a single pack covers typical installation needs.
• Quality assurance: Conforms to ISO9001, ISO14001, BHMA, KCMA and SGS standards and is tested for long life and salt spray resistance.

Who It's For

This 20 pack is ideal for homeowners replacing a full kitchen run, furniture renovators, or cabinet makers who need consistent, adjustable hinges that deliver a quiet soft close. The 105 degree opening angle and common cup size fit most face frame door styles, so it works well for standard cabinet doors, bookcases, and media cabinets.

Those who should look elsewhere include projects requiring inset hinges, specialty full-overlay hardware, or ultra-high-end designer finishes not offered here. Also, if you only need one or two hinges for tiny custom pieces, a smaller pack might be a better choice.

Pros & Cons

Pros

• Reliable soft close action thanks to the POM damper that reduces slamming and protects doors.
• 4D adjustment lets installers correct fit without re-drilling or shims, improving alignment quickly.
• Durable electroplated steel construction with a satin nickel look that stands up to repeated use.
• Includes dowels and self-tapping screws so most installs are ready out of the box.

Cons

• Limited to a 105 degree opening angle, which may be restrictive for cabinets that need wider access.
• The satin nickel finish is attractive but not a specialty designer finish for very high-end custom work.

Specifications

Pack size	20 hinges
Cup diameter	35mm
Cup depth	11.5mm
Screw hole distance	45mm
Opening angle	105 degrees
Adjustments	4D: vertical, horizontal, depth, closing speed (0-7s)
Finish & material	Satin nickel electroplate on steel; brass plated bottom

Our Verdict

These 3/4 in overlay 4D soft close concealed hinges offer clear value for standard cabinet projects: they are sturdy, adjustable and include the hardware needed for most installations. For anyone replacing multiple hinges or upgrading worn hardware, the quiet soft close and 4D adjustments make them a practical, cost-effective choice.

Frequently Asked Questions

Will these fit standard face frame cabinet doors?
Yes; the 35mm cup diameter, 11.5mm cup depth and 45mm screw spacing are compatible with most face frame door preps and common hinge cups.

Can the closing speed be changed after installation?
Yes; the closing speed is adjustable from 0 to 7s using the built-in adjustment, so you can fine-tune how fast doors close.

Are screws and dowels included?
Each hinge comes with two easy-on dowels and three self-tapping wood screws so you have the fasteners needed for installation.
