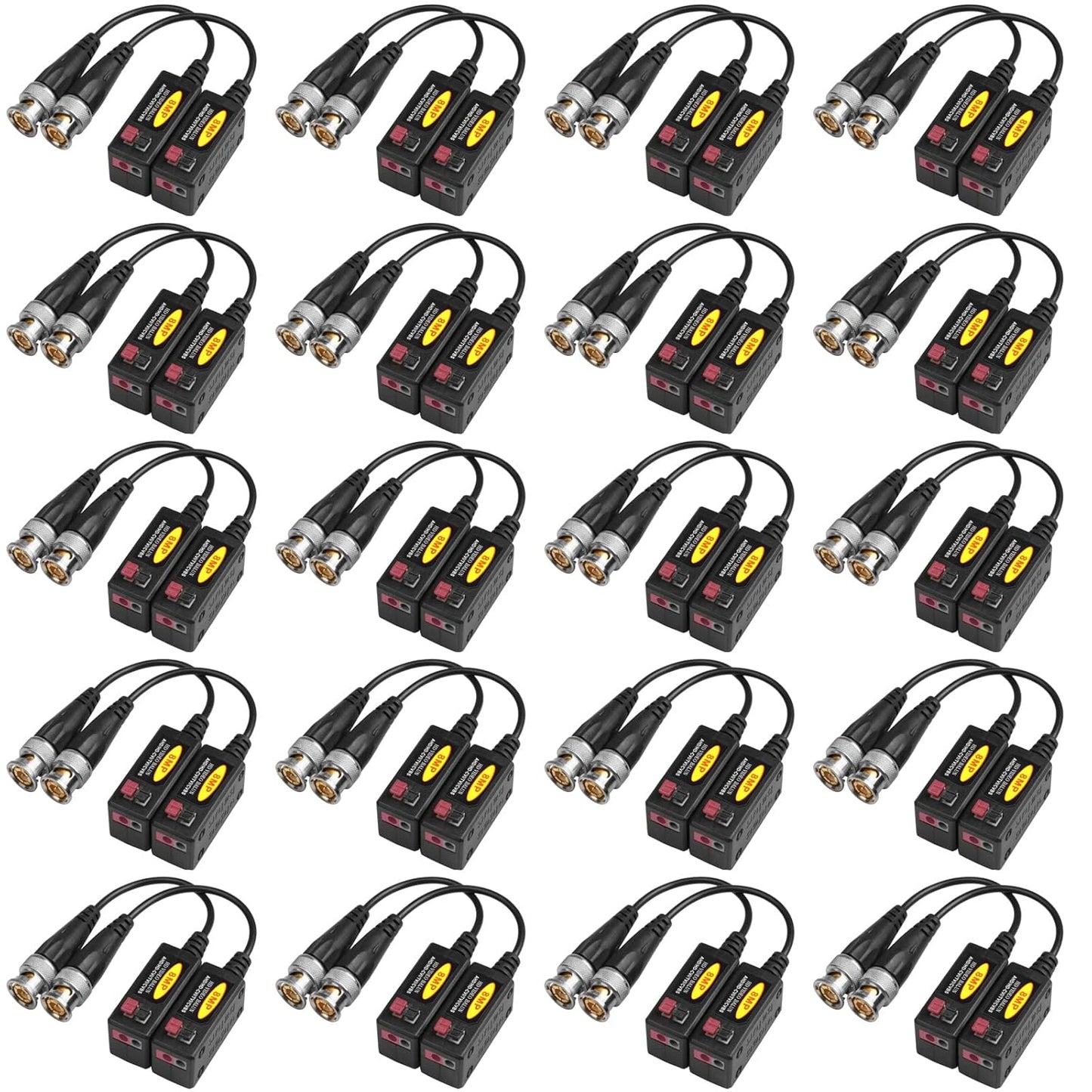

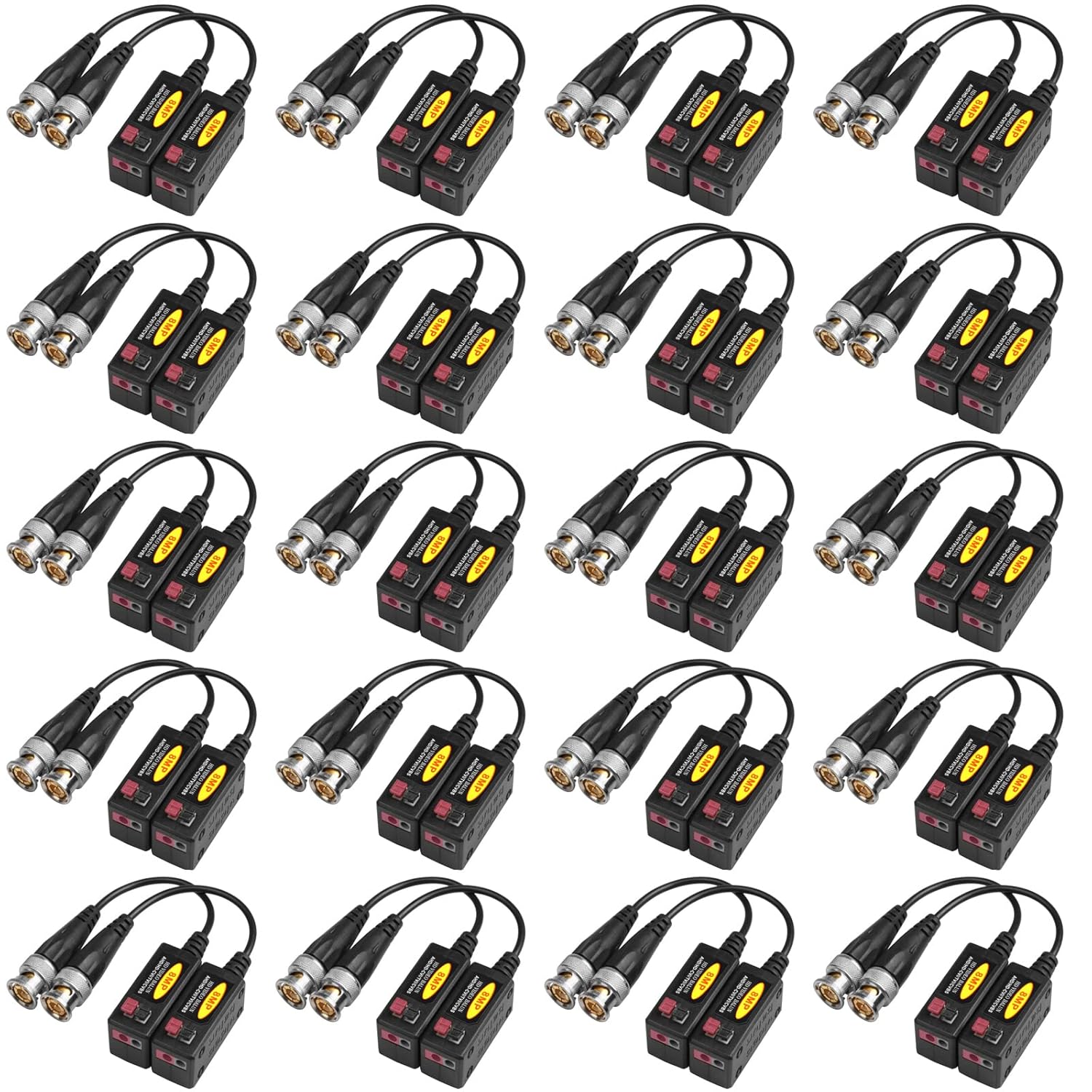

20 Pairs HD BNC Video Balun Transceiver - UTP CAT5 CCTV Solution

In this review the 20 Pairs Passive HD BNC Video Balun Transceiver is judged as a budget-focused tool for installers and DIY CCTV users who need to convert coaxial BNC video to run over UTP CAT5 cable. The single biggest reason to buy is simple: it enables long-distance video transmission for a wide range of analog and HD hybrid cameras without power or complex electronics, supporting resolutions up to 8 million pixels. It is aimed at projects where compatibility and cable reuse matter more than premium build quality.

Key Features

• Wide format support: Works with AHD, TVI, CVI and CVBS formats so one kit covers most analog and HD hybrid CCTV cameras.
• High resolution compatibility: Supports camera resolutions up to 8 million pixels, making it suitable for modern 4K-capable analog hybrid systems.
• Long transmission distances: Allows TVI/AHD runs to about 300m (984ft) and CVI/CVBS to about 600m (1968ft) over UTP CAT5 cable for flexible camera placement.
• Large pack quantity: Includes 20 pairs (40 pieces) so installers can wire multiple cameras or keep spares on hand without repeating purchases.
• Screw-free UTP terminals: The mini balun design with screw-free connectors simplifies termination and speeds up installation in tight spaces.
• Passive design: No external power required, reducing points of failure and simplifying wiring when only video needs to be transmitted.

Who It's For

The kit is best for security installers, technicians, and homeowners who already have or plan to use UTP CAT5 cable to carry CCTV video and want a low-cost way to connect multiple analog or HD hybrid cameras. It is especially useful when reusing existing network cable runs or when long runs are needed without installing powered transmitters.

It is less suitable for projects demanding ruggedized connectors, professional-grade shielding, or built-in surge protection; buyers needing premium materials or warranty-backed components should consider higher-end active baluns or integrated video distribution products.

Pros & Cons

Pros

• Supports a wide range of formats (AHD/TVI/CVI/CVBS) so it fits mixed camera systems.
• Good transmission distance for non-powered passive baluns, enabling flexible camera placement.
• Large 20-pair kit provides ample quantity for multi-camera installs or spares.
• Screw-free terminals simplify quick terminations and reduce install time.

Cons

• Build quality feedback is mixed from users, so units may vary in durability or fit.
• As a passive device it offers no amplification or active signal conditioning for very long or electrically noisy runs.

Specifications

Model type	Passive HD BNC Video Balun Transceiver
Quantity	20 pairs (40 pieces)
Supported formats	AHD / TVI / CVI / CVBS
Maximum support pixel	8 million pixels
Transmission distance	TVI/AHD: 300m (984ft); CVI/CVBS: 600m (1968ft)
Cable type	UTP CAT5 (twisted pair)
Connector style	BNC with screw-free UTP terminal

Our Verdict

The 20 Pairs Passive HD BNC Video Balun Transceiver kit delivers clear value for installers who need a low-cost, compatible way to run multiple CCTV cameras over existing UTP CAT5 cable. It supports modern analog HD formats up to 8 million pixels and provides useful transmission distances without power. While build consistency can vary, the large pack size and simple installation make it a practical buy for budget-conscious projects that do not require active signal boosting or industrial-grade protection.

Frequently Asked Questions

Can these baluns support 4K or very high resolutions?
They support up to 8 million pixels, which covers most modern analog HD and hybrid cameras but not all 4K IP camera systems.

Do these baluns need external power?
No, they are passive devices and do not require external power for video transmission.

What cable should be used for best performance?
Use UTP CAT5 (or better) twisted pair cable; adherence to good wiring practice helps reach the listed transmission distances.
