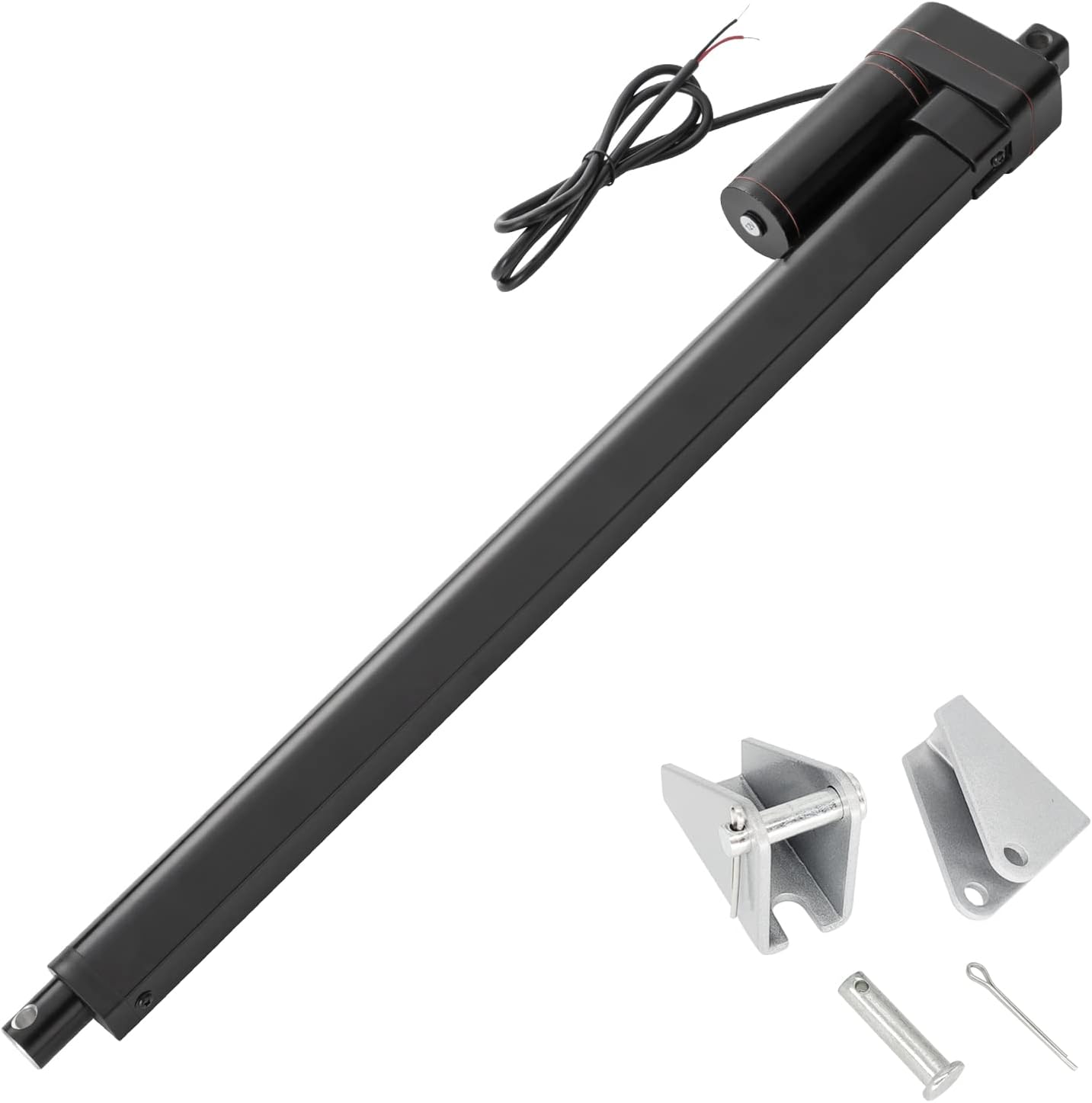

22 Inch Long Stroke Linear Actuator 12V Heavy Duty - Waterproof

In this review of the 22 in long stroke linear actuator, the bottom line is simple: this is a heavy duty, weatherproof actuator best suited for mechanical projects that need strong push/pull force rather than high speed. Installers and DIYers building utility beds, solar trackers, or electrically actuated furniture will appreciate the robust construction and IP65 protection, while those needing fast motion or the full advertised 660 lb lift in every setup should check compatibility first. The review covers real strengths and realistic limits so buyers know what to expect.

Key Features

• 22 in stroke: A long 22 in (550 mm) stroke gives large travel for windows, hatches, or lift platforms without extra linkages.
• 12 V DC motor: Runs from common 12 V systems and draws up to 5 A at maximum load, making it suitable for vehicle and off-grid setups.
• High load capacity: The unit is rated to 3000 N (about 660 lbs) so it can handle heavy loads when mounted and supported correctly.
• IP65 waterproof housing: Anodized aluminum body and IP65 rating provide dust resistance and protection from jets of water for outdoor use.
• Built-in limit switch and self-lock: Integrated limits stop travel at each end and the self-locking motor holds position without power for safer installations.
• Quiet operation: Noise is reported below 50 dB in typical use, useful for indoor automation such as beds or sofas.

Who It's For

The actuator suits fabricators, hobbyists, and small commercial users who need strong, steady linear motion and weather resistance: think solar tracker arrays, utility vehicle dump beds, or electrically operated furniture. Its 22 in stroke and aluminum body make it a good choice where space allows full extension and retraction.

It is less ideal for projects that require fast actuation or precise high-speed timing; with a no-load speed of about 0.2 in/sec (5 mm/sec) this is a slow, powerful unit. Buyers who need guaranteed lift of 660 lbs should verify mechanical advantage and mounting before relying on the maximum rating.

Pros & Cons

Pros

• Sturdy aluminum construction and IP65 rating provide reliable outdoor performance.
• High rated force and built-in limit switches offer secure, self-locking positioning.
• Operates from standard 12 V systems and keeps noise low, suitable for home automation.

Cons

• Relatively slow travel speed; not suitable where rapid motion is required.
• Some customers reported mixed functionality and that real-world lift can be less than the rated maximum depending on setup.

Specifications

Voltage	12 V DC
Stroke length	22 in (550 mm)
Retracted / Extended	28 in (700 mm) / 50 in (1250 mm)
No-load speed	0.2 in/sec (5 mm/sec)
Maximum load	3000 N (660 lbs)
Maximum current draw	5 A
Protection class / Noise	IP65 / <50 dB

Our Verdict

The 22 in long stroke linear actuator is a solid value for users who need a durable, weatherproof actuator with strong holding force and long travel. It excels in heavy-duty, low-speed applications like solar tracking or dump beds, but buyers should confirm mounting and mechanical advantage if they require the absolute top lift capacity or faster actuation.

Frequently Asked Questions

Can this run from a car battery?
Yes, it runs on 12 V DC and is suitable for vehicle systems, but wire and fuse sizing should match the 5 A maximum draw and installation must secure the actuator.

Is it waterproof for outdoor use?
The actuator is rated IP65, which protects against dust and water jets, so it is appropriate for many outdoor installations but not for continuous submersion.

Does the unit stop automatically at ends?
Yes, built-in limit switches stop travel at both ends and the motor has a self-locking function that holds position when power is removed.
