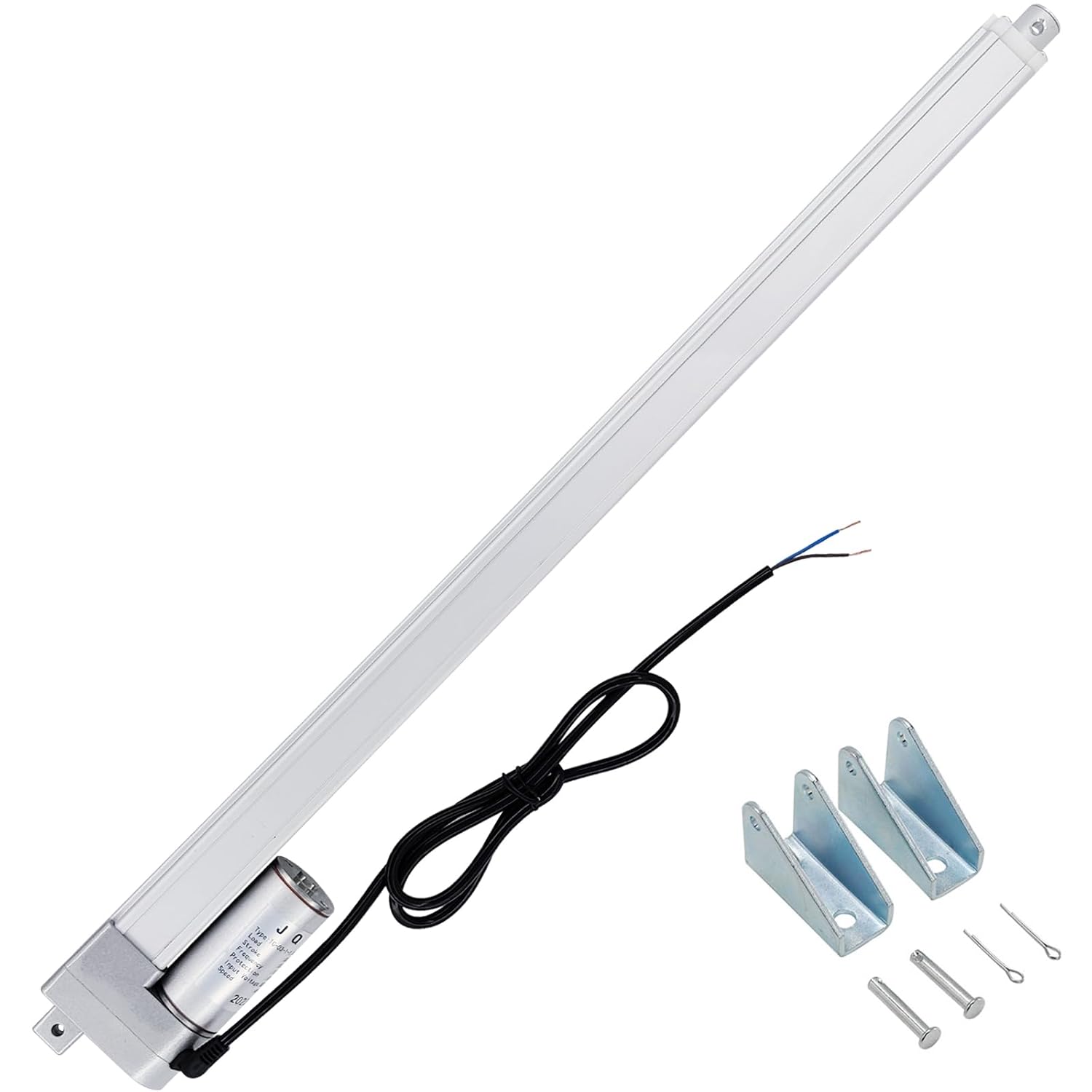

22 Inch Stroke 12V Linear Actuator 300N/66lbs - Silent Window Opener

In this review the 22 in Stroke 12V Linear Actuator by JQDML is assessed as a functional, workmanlike electric actuator for home automation and light industrial uses. The biggest reason to consider it is the long 22 in stroke combined with a reliable built in limit switch and IP54 protection, which make it especially suited to projects that need a long travel and weather resistance without complex control. The reviewer found it to be solidly built and noticeably quieter than many budget actuators, making it a sensible pick for window openers and adjustable furniture.

Key Features

• 22 in stroke: Provides a full 550mm of travel so larger openings or long reaches can be achieved without extra linkages.
• Built in limit switch: Automatically stops at fully extended and retracted positions, protecting the mechanism and simplifying installation.
• IP54 protection: Gives splash and dust resistance suitable for sheltered outdoor or workshop environments where occasional moisture is expected.
• Low noise design: Operates below 50 dB so it is quiet enough for home use on windows, sofas, or beds without drawing attention.
• 300N (66 lbs) force: Delivers moderate push/pull power appropriate for window opener duties, adjustable furniture, and light lifting applications.
• Aluminum alloy construction: Offers a sturdy, corrosion resistant housing that holds up to repeated cycles and moderate loads.

Who It's For

This actuator is a good match for DIYers, home automation tinkerers, and small workshop builders who need a long stroke actuator for window openers, roof vents, electric sofas, or medical beds. The built in limit switches and IP54 rating reduce the need for external protections and simplify integration into 12V systems.

It is less suited to heavy industrial lifting or continuous-duty applications that demand higher current capacity or greater than 66 lbs of force, or to fully exposed outdoor locations requiring higher weatherproofing. Professional installers who need full rated duty cycles or custom control electronics may prefer a different industrial model.

Pros & Cons

Pros

• Long 22 in stroke gives useful travel for larger openings and stretches of motion.
• Quiet operation under 50 dB makes it suitable for residential settings like bedrooms and living rooms.
• Solid aluminum construction and IP54 rating add durability for repeated use in semi-exposed locations.
• Built in limit switches simplify wiring and protect the mechanism from overtravel.

Cons

• Maximum load of 300N (66 lbs) limits use to light-to-moderate duties rather than heavy lifting.
• Load current around 4.5A under load means suitable power wiring and a 12V supply are required; installers should plan for that.

Specifications

Stroke length	22 in (550 mm)
Retracted length	26 in (670 mm)
Extended length	48 in (1220 mm)
Load speed	1.18 in/sec (30 mm/s)
Maximum load	300N / 66 lbs
Supply voltage / current	12V DC / ~4.5A under load
Protection	IP54

Our Verdict

The 22 in Stroke 12V Linear Actuator is a practical, well-built option for home automation and light lifting tasks where a long stroke and quiet operation matter. With built in limit switches, aluminum construction, and IP54 protection it offers good value for hobbyists and installers needing reliable motion at a moderate 66 lbs capacity.

Frequently Asked Questions

Can this actuator be used outdoors?
It has an IP54 rating so it tolerates splashes and dust in sheltered or semi-exposed locations but is not intended for continuous outdoor immersion or unprotected exposure.

What power does it require?
The actuator runs on 12V DC and draws about 4.5A under load, so use a suitably rated 12V supply and wiring for reliable operation.

Does it stop automatically at travel ends?
Yes, the unit includes built in limit switches that stop the actuator at full extension and full retraction.
