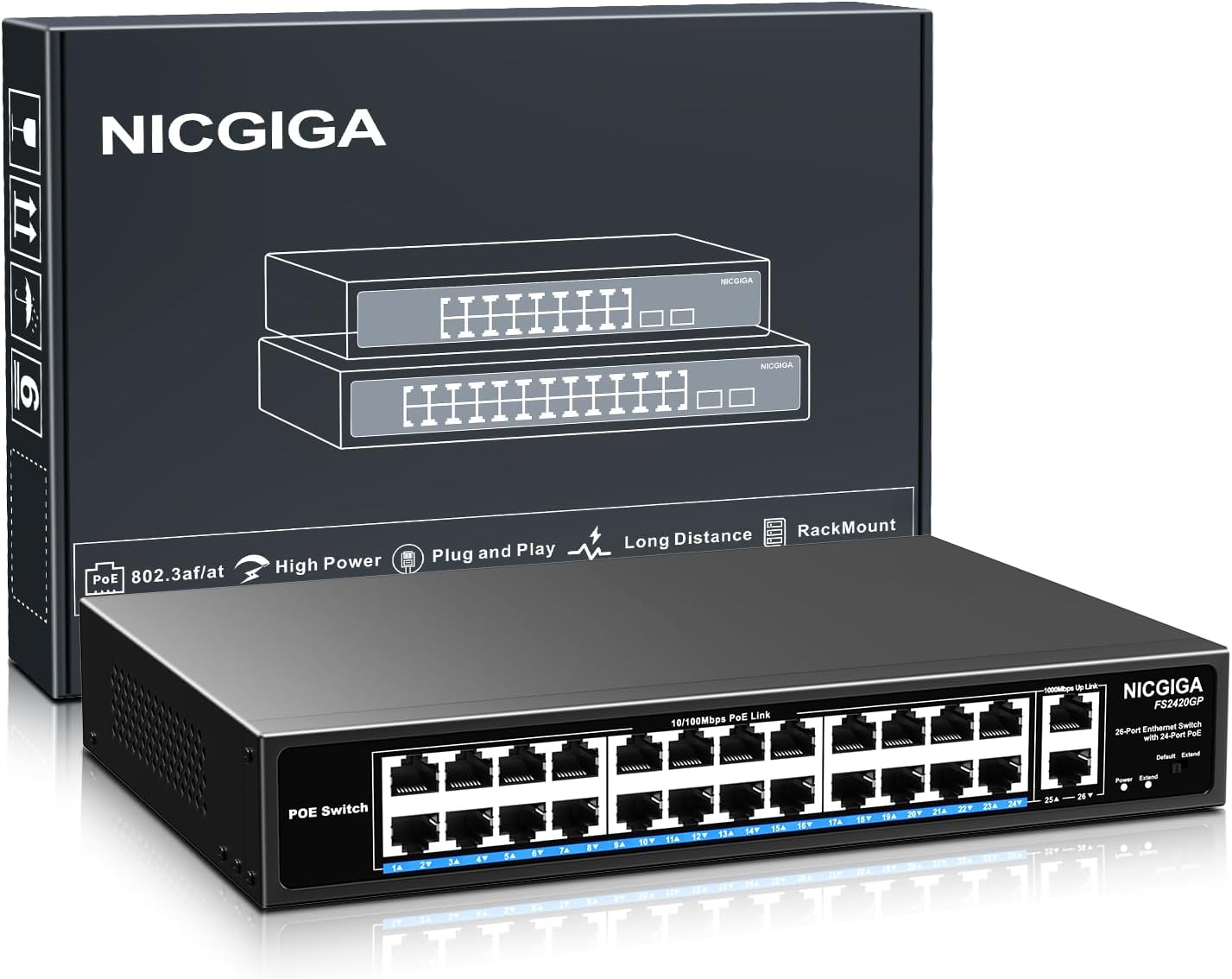

24 Port PoE Switch Unmanaged 24 Port PoE+@400W - Rackmount Performance

In this review the NICGIGA 24 Port PoE Switch is evaluated for small offices and surveillance installations that need reliable power and long cable reach without complex configuration. The bottom line: this is a practical, plug-and-play PoE+ switch with a total 400W internal power budget and 24 powered ports, ideal for installers who want straightforward deployment and the ability to extend a single port to 250m when needed. It is unmanaged, so it is best where simple, dependable PoE delivery and VLAN isolation on edge ports are the priority.

Key Features

• 26 total ports: 24 PoE+ data/power ports plus 2 gigabit uplink ports let you connect multiple cameras and access points while keeping uplinks at full gigabit speed.
• 400W power budget: Provides up to 30W per PoE port under the built-in 400W budget so you can power multiple PoE+ devices simultaneously.
• 250m extend mode: One port can run at 10Mbps to reach devices up to 250m away, useful for long-run cameras or distant sensors without extra extenders.
• VLAN isolation on ports 1-24: Reduces local broadcast traffic and improves edge security by isolating ports from each other while still allowing uplink access.
• Plug-and-play unmanaged design: No configuration required, with auto MDI/MDIX and non-blocking forwarding so setup is fast for technicians and small IT teams.
• Rugged metal chassis with 4KV protection: Rack-mountable with included 19 in rack ears and lightning protection to help protect connected equipment.

Who It's For

The NICGIGA 24 Port PoE Switch is aimed at small to medium business network installers, security camera integrators, and wireless installers who need a high-capacity PoE+ source without managing VLANs or advanced features. Its large 400W budget and 24 powered ports make it well suited for multi-camera sites or buildings with many access points.

It is not for users who require full managed features like SNMP, per-port PoE scheduling, or support for nonstandard passive 24V PoE; the switch only supports IEEE 802.3af/at 48V PoE standards. Those needing deep traffic control or layer 3 routing should consider a managed switch instead.

Pros & Cons

Pros

• High 400W internal power budget supports multiple PoE+ devices at up to 30W per port.
• Simple plug-and-play operation makes installation quick for non-technical staff.
• Extend mode and VLAN isolation provide flexible deployment options for long runs and improved edge security.
• Sturdy metal housing with included 19 in rack ears and 4KV lightning protection for field reliability.

Cons

• Unmanaged design limits advanced configuration and monitoring options for complex networks.
• Does not support nonstandard 24V passive PoE devices, only IEEE 802.3af/at 48V.

Specifications

Brand	NICGIGA
Port count	26 total (24 PoE+ ports + 2 gigabit uplinks)
Max power budget	400W internal
PoE standard	IEEE 802.3af/at (48V)
Max per PoE port	Up to 30W
Extend range	250m at 10Mbps on single extend port
Mounting	19 in rack mount ears included, metal housing

Our Verdict

The NICGIGA 24 Port PoE Switch is a practical choice for installations that need abundant PoE+ power and easy deployment without management overhead. Its 400W budget, VLAN isolation on edge ports, and 250m extend option give real-world flexibility for cameras and access points. For sites that require simple, reliable power delivery and rackmount durability, it represents solid value; choose a managed alternative only if you need advanced network controls.

Frequently Asked Questions

Can it power both PoE and non-PoE devices?
Yes. The switch detects powered devices and supplies PoE only to compatible devices; non-PoE devices receive data only.

Does it include rack mount ears?
Yes. A set of 19 in rack mount ears is included for rack installation.

Does it support 24V passive PoE?
No. It supports standard 48V IEEE 802.3af/at PoE only and does not support nonstandard 24V passive PoE.
