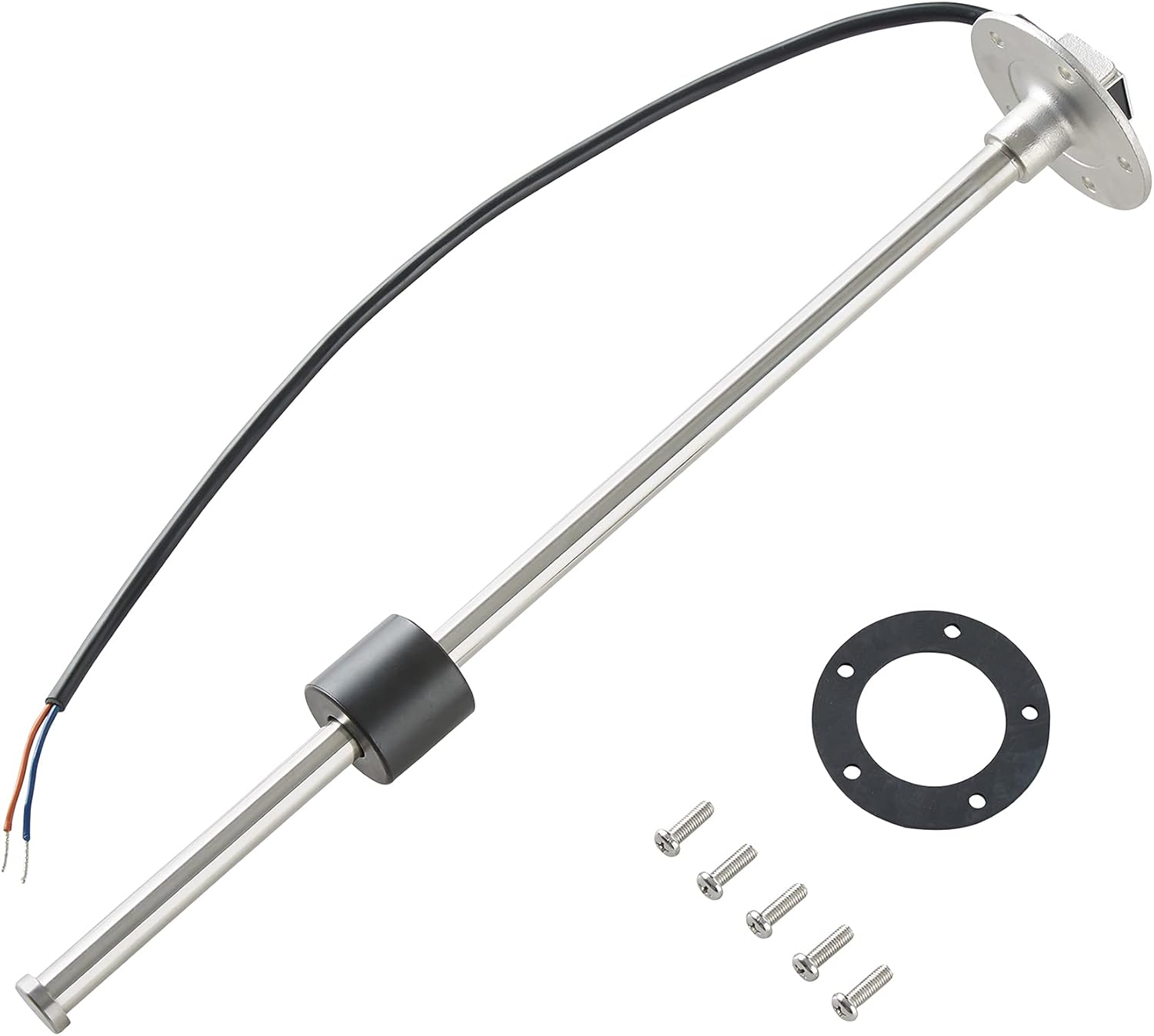

240-33 ohms 10.5in Marine Fuel Sending Unit - Durable Doughnut Float

In this review of the 240-33 ohms 10.5in Marine Fuel Sending Unit the bottom line is simple: this is a practical, durable replacement sender for boat or vehicle tanks where a reliable fuel or water level reading is needed. The reviewer found it best suited to owners who want a direct swap for a swingarm or wema style sender and value long-term durability from a doughnut float and reed switch design. Installation is straightforward and the unit restores gauge function quickly, which is the main reason most people will buy it.

Key Features

• Doughnut float design: uses a reed switch design with no delicate moving arms, which increases durability and reduces the chance of failure in marine environments.
• Direct replacement fit: SAE 5 hole mounting pattern and a substantial flange mean it bolts in as a drop-in replacement for many swingarm and wema senders.
• American standard output: provides 240 ohms at empty and 33 ohms at full so it works with standard gauges without modification.
• Robust materials: body in 316 stainless steel and NBR float deliver corrosion resistance appropriate for fuel and saltwater exposure.
• Complete kit: comes with gasket, mounting screws and illustrated instructions to make the typical install take about 15 minutes.

Who It's For

This sender is aimed at boat owners, automotive or truck owners, and custom installers who need a durable replacement for a failed swingarm or wema sender and who use gauges expecting the 240-33 ohm standard. It is especially useful for marine applications because of the 316 stainless body and IP65 protection level.

It is not ideal for someone whose tank depth requires a nonstandard probe length without modification; the installer must choose a sender length about 1in shorter than a plastic tank depth or 0.5in shorter for metal tanks to avoid the float hitting the bottom. Also, buyers who require metric-only documentation or custom electrical outputs should confirm details with the seller first.

Pros & Cons

Pros

• Solid long-term reliability from the doughnut float and reed switch design.
• Direct-fit SAE 5 hole pattern and included hardware make installation fast and straightforward.
• 316 stainless steel construction and IP65 rating resist corrosion in marine environments.
• Works with standard gauges thanks to the 240-33 ohm output curve.

Cons

• Some customers report mixed alignment of mounting screw holes, so minor fitting adjustments may be needed.
• Gauge readability can vary with certain dashboards and may require verification after installation.

Specifications

Output signal	240 ohms (empty) - 33 ohms (full)
Probe length	10.5in (267mm)
Mounting pattern	SAE 5 hole
Body material	SUS 316 stainless steel
Float material	NBR
Protection rank	IP65
Included in box	Gasket, mounting screws, illustrated instructions

Our Verdict

The 240-33 ohms 10.5in Marine Fuel Sending Unit is a sensible replacement for anyone needing a more durable alternative to a swingarm sender. It delivers reliable readings, a direct-fit flange, and corrosion-resistant construction at a reasonable value, making it a good choice for marine and vehicle owners who want a quick, low-risk repair to restore gauge function.

Frequently Asked Questions

Will this unit work with my standard fuel gauge?
The sender uses the American standard 240-33 ohm output so it will work with gauges designed for that resistance curve.

How hard is installation?
Installation is straightforward; the unit ships with gasket, screws and illustrated instructions and typically takes about 15 minutes for a direct replacement.

Can the sender be used in saltwater?
Yes, the body is 316 stainless steel and the assembly has IP65 protection, which makes it suitable for marine environments when installed correctly.
