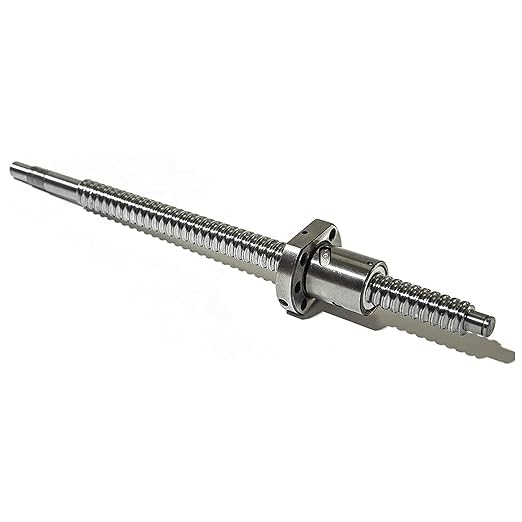

25mm Ballscrew SFU2510 RM2510 280mm 10mm Pitch - Precision CNC Part

In this review the 25mm Ballscrew SFU2510 RM2510 is examined as a focused replacement part for hobby and light industrial CNC machines that need a compact, high-precision linear drive. The reviewer found the single biggest reason to buy is its combination of a 25mm diameter and 10mm lead in a 280mm overall length, which delivers higher stiffness and accurate positioning without the stick-slip common to sliding leadscrews. The review highlights machining compatibility with BK/BF20 supports and the low-noise, low-friction behavior that reduces drive energy and heat.

Key Features

• 25mm diameter: Provides higher static and dynamic stiffness for improved positional accuracy under cutting loads.
• 10mm pitch (lead): Enables faster linear travel per rotation, making it suited for higher-speed moves and micro-feeding when required.
• 11.02 in / 280mm total length: Compact length works well in constrained machine beds and retrofit applications where space is limited.
• Standard end machining for BK/BF20: Fits common bearing blocks without custom adapters, simplifying installation into many CNC setups.
• Precision C7 grade and metal nut: Rolled thread on GCr15 steel with a metal deflector nut gives long service life, low friction, and reduced heat buildup.
• No stick-slip effect: Ball motion design means smoother start/stop behavior and smaller starting torque for finer control.

Who It's For

This ballscrew is aimed at hobbyists, small machine shops, and integrators who need a direct-replacement linear drive with solid rigidity and a 10mm lead for higher traverse rates. It is particularly useful when a short, precision screw with standard BK/BF20 end machining is required for retrofits or custom builds.

Those who should look elsewhere include users needing longer lengths out of the box (custom lengths are available from the factory but not included here) or applications requiring ultra-high-precision ground screws beyond the C7 rolled thread option unless C5 is requested from the seller.

Pros & Cons

Pros

• High stiffness and accuracy from the 25mm diameter for stable positioning under load.
• Low friction and noise reduce heat and required driving power during long runs.
• Standard end machining for BK/BF20 eases installation into common support blocks.
• Factory offers customization and additional grades on request for flexibility.

Cons

• Supplied as a rolled C7 grade part; customers needing ground C5 level must request it separately.
• Length is fixed at 280mm for this SKU, so longer screws require a custom order or alternative part.

Specifications

Our Verdict

The SFU2510 RM2510 ballscrew represents good value for users seeking a compact, stiff, and low-friction linear drive with standard BK/BF20 compatibility. It is a strong choice for hobby CNC builds and light industrial machines where a 25mm diameter and 10mm lead balance speed and accuracy, while factory customization keeps options open for different grades or lengths.

Frequently Asked Questions

Is the end machining compatible with common bearing blocks?
Yes, this unit is delivered with standard end machining for BK/BF20 supports ready for installation.

What precision grade is supplied?
The standard offering is rolled thread C7 grade; C5 grade is available if requested from the seller.

Can longer lengths be supplied?
The factory can provide custom lengths beyond the 280mm SKU - contact the seller for options and drawing files.
