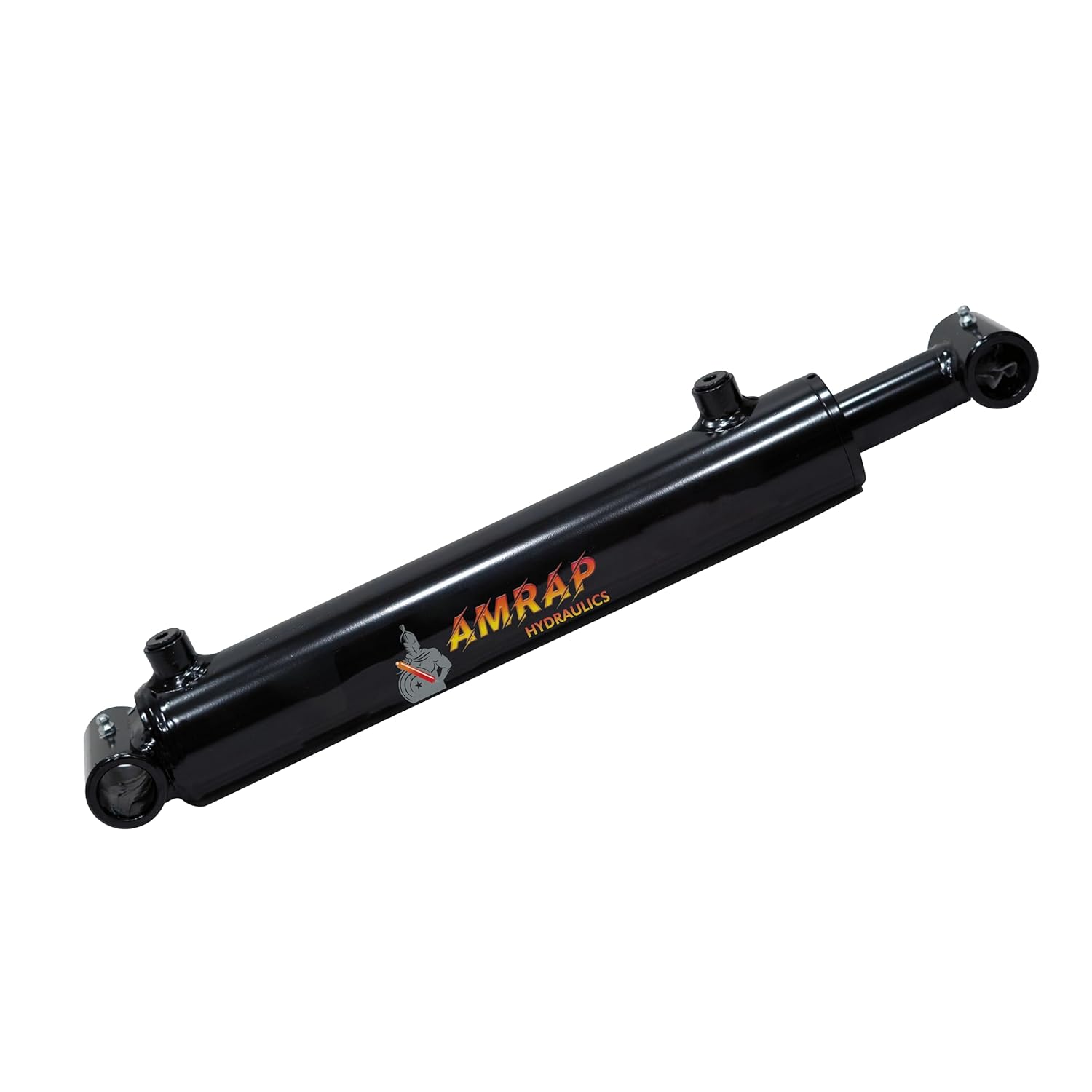

2x24 Hydraulic Cylinder - Double Acting Welded Cross Tube Cylinder

In this review the AMRAP Hydraulics 2x24 Hydraulic Cylinder is assessed for durability and fit as a replacement cross-tube cylinder for front-end loaders and mobile equipment. The bottom line: this welded double acting cylinder is built for field use, with a 2" bore, 24" stroke and 3500 PSI rating that make it a reliable replacement option for tractors and loader arms where a compact, heavy-duty cylinder is required. Its strongest selling point is rugged, all-welded construction and tested seals that reduce leakage and simplify maintenance in harsh outdoor conditions.

Key Features

• Welded all-steel design: The heavy-duty steel construction and welded end mounts provide high strength and impact resistance for demanding jobsite use.
• Double acting operation: SAE 6 ports (O-ring boss) and double acting function allow controlled push and pull movement for loader and lift applications.
• Pressure rating: Rated to 3500 PSI and pressure-tested at 150% before shipping, giving confidence in service limits and leak-free delivery.
• Compact seals: Premium compact seal components help prevent leakage and contamination, reducing downtime and maintenance needs.
• Universal fit intent: Cross-tube mounting and common pin hole sizes make this cylinder compatible with a wide range of front-end loaders as an affordable replacement.
• Column load capacity: The cylinder is rated for a column load of 8,370 lbs, suitable for many agricultural and material handling tasks.

Who It's For

This cylinder is aimed at owners of tractors, loaders, and mobile equipment who need a durable, serviceable replacement part that matches common OEM dimensions. It is particularly useful for those who require a 2" bore x 24" stroke cross-tube cylinder with 1" pin holes and SAE 6 ports for straightforward hydraulic hookup.

It is not targeted at users needing custom rod coatings, non-standard ports, or hydraulic cylinders for precision industrial automation. If your application requires exotic materials, extreme pressure beyond 3500 PSI, or exact OEM serial matching, consider a factory-specific cylinder instead.

Pros & Cons

Pros

• Solid build quality from an all-welded design delivers long-term durability in outdoor environments.
• Designed for easy compatibility with common loader mounts and known to fit models like Kubota LA302 according to users.
• Leak-resistant seals and pressure testing at 150% reduce the risk of early failure and oil loss.
• Good value compared with OEM replacements while including a 2-year manufacturer warranty.

Cons

• Limited to a 3500 PSI rating, so not suitable for systems that require higher pressure limits.
• Welded cross-tube style may not match every proprietary mount or exact OEM geometry without minor adaptation.

Specifications

Bore	2 in (OD 2.38 in)
Stroke	24 in
Rod diameter	1.25 in
Retracted/Extended length	Retracted 32 in / Extended 56 in
Pin holes	1 in
Ports	SAE 6 (O-ring boss)
Rated pressure	3500 PSI

Our Verdict

The AMRAP 2x24 welded cross-tube hydraulic cylinder is a pragmatic, well-built replacement for loaders and tractors that need a sturdy, serviceable 2" bore cylinder. It offers reliable performance, pressure-tested construction and broad compatibility at a reasonable price, making it a sensible buy for agricultural and material-handling users who value durability and low maintenance backed by a 2-year warranty.

Frequently Asked Questions

Will this cylinder fit common loader models?
Yes, the cross-tube design, 1" pin holes and standard dimensions make it compatible with many front-end loaders; customers report good fit on Kubota LA302 style loaders.

What pressure can this cylinder handle?
The cylinder is rated to 3500 PSI and is pressure-tested to 150% of working pressure before shipment.

Does it come with a warranty?
Yes, AMRAP Hydraulics provides a 2-year manufacturer warranty on this product.
