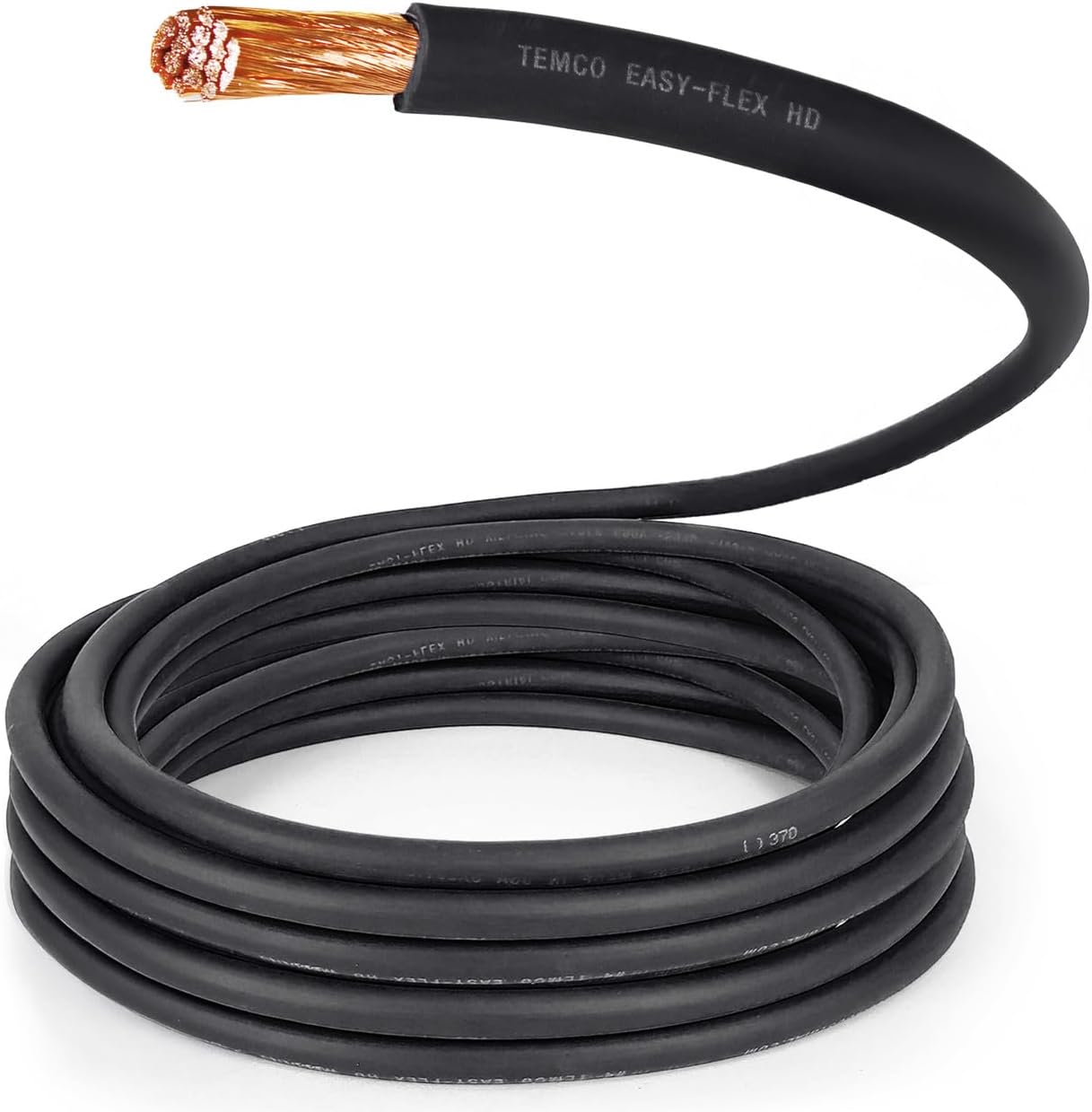

3/0 Gauge AWG 200 ft Welding Cable - Flexible Pure Copper

In this review of the 3/0 gauge 200 ft welding cable, the bottom line is simple: this is a heavy duty, highly flexible pure copper cable built for demanding DC power tasks where durability and conductivity matter. It is aimed at DIYers and professionals who need a long run of battery or welding cable that resists oil, heat and abrasion while delivering strong current. The single biggest reason to buy is the combination of annealed oxygen free copper conductor and a rugged EPDM jacket, which together make this cable both conductive and easy to route in tight spaces.

Key Features

• 380 Max Amps: Delivers up to 380 amps for runs up to 50 ft, providing reliable current for welding and heavy DC loads.
• OFC Conductor: Uses annealed 30 gauge oxygen free copper for improved conductivity and corrosion resistance that benefits battery and audio systems.
• Flexible EPDM Jacket: The TEMCo Easy-Flex rubber jacket stays pliable across a wide temperature range so it is simple to route in vehicles, panels, and tight engine bays.
• Wide Temperature Rating: Rated from -58F to +221F, suitable for cold storage, outdoor solar runs, and hot engine compartments without degrading quickly.
• Durability: The cable resists cuts, tears, abrasion, water, oil and grease, which helps it last in workshop, automotive and marine environments.
• 600 V Rated: Insulation rated up to 600 volts for safety and compatibility with many DC system needs like RVs, solar arrays, and battery banks.

Who It's For

This cable is ideal for installers and home fabricators who need a long, heavy gauge conductor for welding leads, battery banks, inverter feeds, or solar DC runs. Car, truck and RV owners who wire starters, winches, or secondary battery systems will appreciate the flexibility and heat resistance when routing through tight bays.

It is less suitable for those who require very thin, light signal wiring or who need a single short jumper for modest amperage; users with short, low-current needs can choose a smaller gauge to save cost and weight. Also, this product is aimed at DC power and welding applications rather than AC household wiring.

Pros & Cons

Pros

• High purity copper conductor and dense stranding keep the cable conductive while remaining easy to bend and position.
• Rugged EPDM jacket and wide temperature tolerance make it durable in harsh environments like engine bays and outdoor installations.
• Versatile use cases from welding to solar, car audio and battery bank connections make it a multi-purpose heavy duty cable.

Cons

• The cable is fairly thick (about 0.621 in OD), which can make termination and routing through small grommets more difficult.
• At full capacity runs beyond 50 ft will require attention to voltage drop and possibly a larger setup for sustained high current.

Specifications

Gauge	3/0 AWG
Length	200 ft
Max Current	380 amps (up to 50 ft)
Voltage Rating	Up to 600 volts
Conductor	Annealed 30 gauge OFC, 1547/30 stranding
Nominal OD	0.621 in (15.77 mm)
Temperature Range	-58F to +221F (-50C to +105C)

Our Verdict

This 3/0 gauge, 200 ft pure copper welding cable is a practical, value-oriented choice for anyone needing a long run of heavy DC cable that stays flexible and resists harsh conditions. It performs well for welding leads, solar systems, battery banks and vehicle installs, offering strong conductivity and a durable EPDM jacket that justify the purchase for both hobbyists and professionals.

Frequently Asked Questions

Can this cable be used for battery to inverter connections?
Yes, it is rated up to 600 V and designed for battery and inverter DC connections, but check run length and voltage drop for your specific inverter current needs.

Is the jacket resistant to oil and engine heat?
Yes, the EPDM jacket is resistant to oil, grease and high temperatures within the specified -58F to +221F range, making it suitable for engine bays.

How flexible is the cable for tight routing?
The TEMCo Easy-Flex construction and fine 1547/30 stranding make it notably flexible compared with hard-pressed solid conductors, easing installation in confined spaces.
