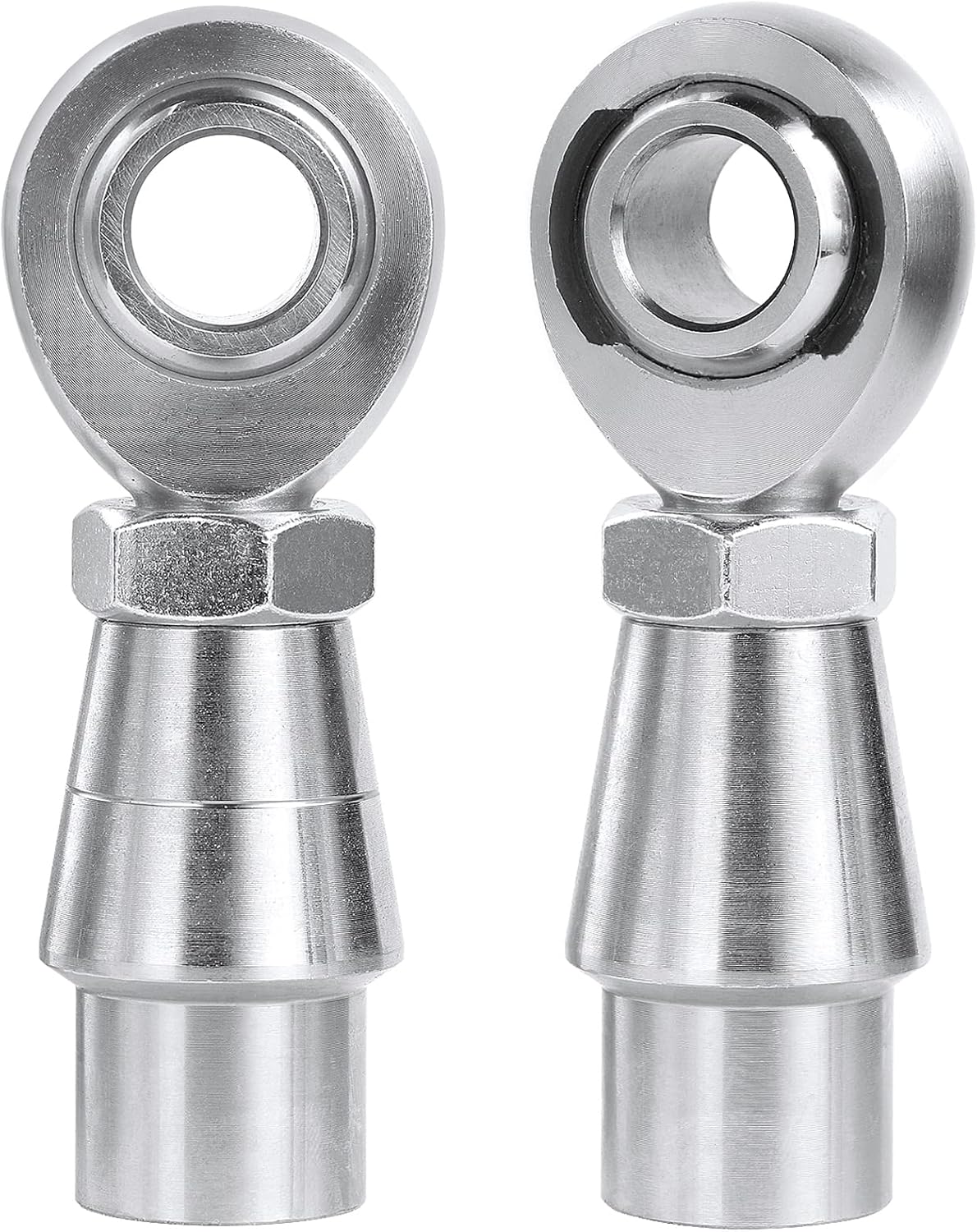

3/4 in Heim Joint Rod End Kit - Heavy Duty Chromoly Rod Ends

Our review of the 3/4 in Heim Joint Rod End Kit finds it best suited for builders and hobbyists who need a durable, high-load connection for steering, suspension and traction bars. The biggest reason to buy is simple: these chromoly, heat-treated heim joints combine a high static load capacity with weldable adapters and both left and right hand threads, making them a practical, heavy duty choice for race cars, sand rails and rock crawlers.

Key Features

• 3/4 in Rod End Size: The 3/4 in shaft with 16 tpi offers a robust connection that is described as the strongest bore option for this style of heim.
• Chromoly Construction: Heat treated and hard chrome plated surfaces increase wear resistance and extend service life in demanding suspension and steering applications.
• High Load Capacity: A quoted load capacity of 28,081 lbs gives confidence for heavy duty track and off-road use where components see high forces.
• Left and Right Hand Threads: Including both thread directions makes the kit ready for anti-rotation assemblies and easy pairing on tie rods or traction bars.
• Tube Adapters and Jam Nuts: Packaged adapters and jam nuts simplify installation into 1 1/4 in OD tube with.120 in wall for a neat, weldable fit-up.
• Weldable Design: The heim joints and adapters can be MiG or TIG welded to custom hardware, enabling one-off fabrication and repairs.

Who It's For

This kit is aimed at fabricators, off-road enthusiasts and racers who need a compact, high-strength rod end solution for steering links, a-arms, traction bars and rock crawler linkages. The combination of chromoly, hard chrome plating and weldable adapters suits custom builds and repairs where durability and load capacity matter.

Those who should look elsewhere are casual DIYers seeking an inexpensive, decorative upgrade for street-only vehicles or anyone who needs maintenance-free, sealed spherical bearings for low-load applications; this kit emphasizes strength and weldability over sealed, maintenance-free convenience.

Pros & Cons

Pros

• Strong construction and hard chrome plating deliver long service life under heavy use.
• Both left and right hand threads plus tube adapters make it versatile for custom linkages and anti-rotation setups.
• High quoted load capacity provides reassurance for race and off-road applications.
• Weldability with MiG and TIG gives fabricators flexibility when mating to tube or custom hardware.

Cons

• Functionality feedback is mixed from some users, so careful fit and setup are required for noise or binding-free operation.
• Not a sealed, maintenance-free joint; periodic inspection and lubrication may be needed in harsh environments.

Specifications

Our Verdict

The 3/4 in Heim Joint Rod End Kit is a practical, heavy duty choice for fabricators and off-road builders who need weldable, high-load rod ends that fit 1 1/4 in tubing. Its strong chromoly construction and included adapters deliver good value for custom steering and suspension work, though buyers should expect routine inspection and proper setup to avoid binding.

Frequently Asked Questions

Will these heim joints weld to tube adapters?
Yes, the parts are designed to be MiG and TIG welded to mating hardware and the supplied adapters fit 1 1/4 in OD tube.

Do they come with left and right threads?
The kit includes both left and right hand threaded heim joints for anti-rotation and installer flexibility.

Are these maintenance-free?
They are durable and plated but not sealed; periodic inspection and lubrication are recommended in harsh off-road conditions.
