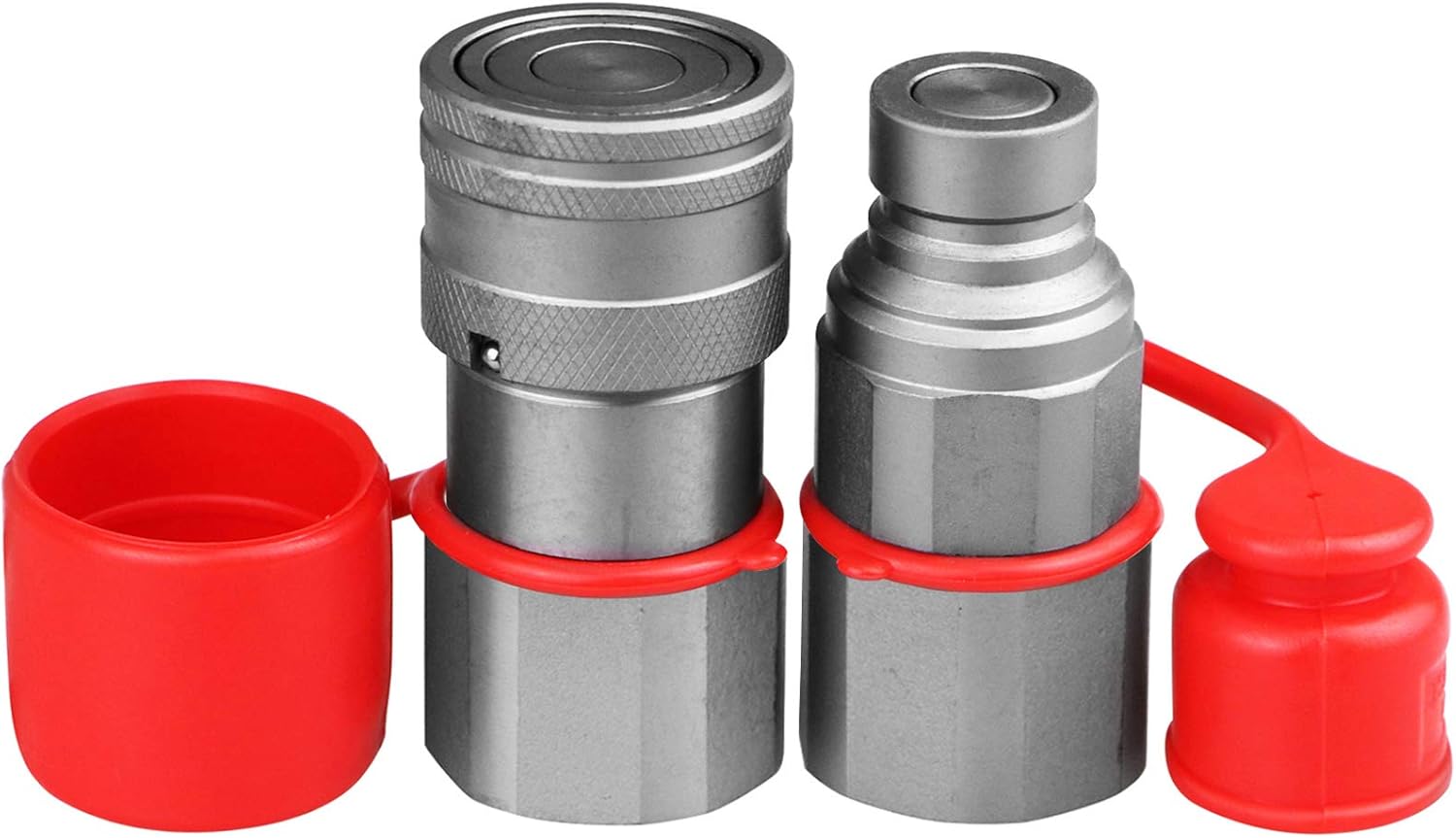

3/4ft NPT Flat Face Hydraulic Quick Connect Couplers - High Flow

In this review the 3/4' NPT flat face hydraulic quick connect couplers are judged as a practical, work-ready replacement for skid steer and attachment plumbing. The bottom line: these couplers suit users who need a high flow, non-spill connection that follows the ISO 16028 flat face standard and works with many skid steers including Bobcat and Kubota. They stand out for a solid max flow and a one-hand push-to-connect operation that simplifies hookup on the job, while offering corrosion resistance for longer outdoor use.

Key Features

• Flat face design: The flush face valve minimizes fluid loss and reduces air inclusion during disconnects, which is useful when changing attachments in the field.
• Interchangeable standard: The 1/2' body with 3/4' NPT thread is compatible with ISO 16028 couplers and many common series so it mates with numerous skid steer attachments without adapters.
• High flow capacity: Rated to 5076 PSI with a maximum flow of 23.78 GPM, the couplers support heavy hydraulic tools and loader attachments without becoming a bottleneck.
• Durable construction: Hardened steel with zinc nickel plating gives improved corrosion resistance and a longer service life in agricultural and construction environments.
• One-hand operation: The push-to-connect mechanism and locking sleeve let operators couple and secure lines quickly with minimal tools or effort.

Who It's For

The couplers are best suited to farmers, landscapers, and construction operators who use skid steer attachments, hydraulic tools, or implements and need a reliable quick disconnect that minimizes spillage. They make sense for anyone replacing worn flat face couplings on Bobcat, Case, New Holland or Kubota equipment where ISO 16028 interchangeability matters.

Those who should look elsewhere include users who require stainless steel fittings for corrosive chemical service or extremely high cycle life beyond typical construction use. Also, if a custom thread other than 3/4' NPT is required, seek a model with the matching thread rather than adapting these.

Pros & Cons

Pros

• Good compatibility with ISO 16028 standard couplings, easing attachment swaps.
• High flow rating and 5076 PSI working pressure suitable for demanding hydraulic attachments.
• Flush face, non-spill valves reduce fluid loss and keep systems cleaner during disconnects.
• Zinc nickel plating and hardened steel construction improve corrosion resistance versus plain steel.

Cons

• Build quality feedback is mixed; some users report O-ring issues, so check seals during installation.
• Not stainless steel, so may not meet specialized chemical or marine corrosion requirements.

Specifications

Coupler type	Flat face quick connect
Body and thread	1/2' body + 3/4' NPT thread
Pressure rating	5076 PSI
Maximum flow	23.78 GPM
Material and finish	Hardened steel with zinc nickel plating
Standard compatibility	ISO 16028 / multiple series interchange
Operation	One-hand push-to-connect with locking sleeve

Our Verdict

The 3/4' NPT flat face quick connect couplers are a cost-effective, practical choice for operators who need ISO 16028 compatibility, high flow capacity, and reduced spillage during attachment changes. For routine agricultural and construction use they offer good value, though installers should verify O-rings and seals at first fit to avoid minor leakage issues reported by some users.

Frequently Asked Questions

Will these fit my skid steer attachments?
They are designed to be interchangeable with ISO 16028 flat face couplers and common series used on many skid steers including Bobcat and Kubota, so they will fit most compatible attachments.

What is the maximum operating pressure?
The couplers are rated to 5076 PSI, suitable for heavy hydraulic tools and loader attachments under normal conditions.

Are replacement dust caps and seals available?
Dust caps are included in the set; O-rings and replacement seals are standard parts but installers should confirm sizes before ordering to match field replacements.
