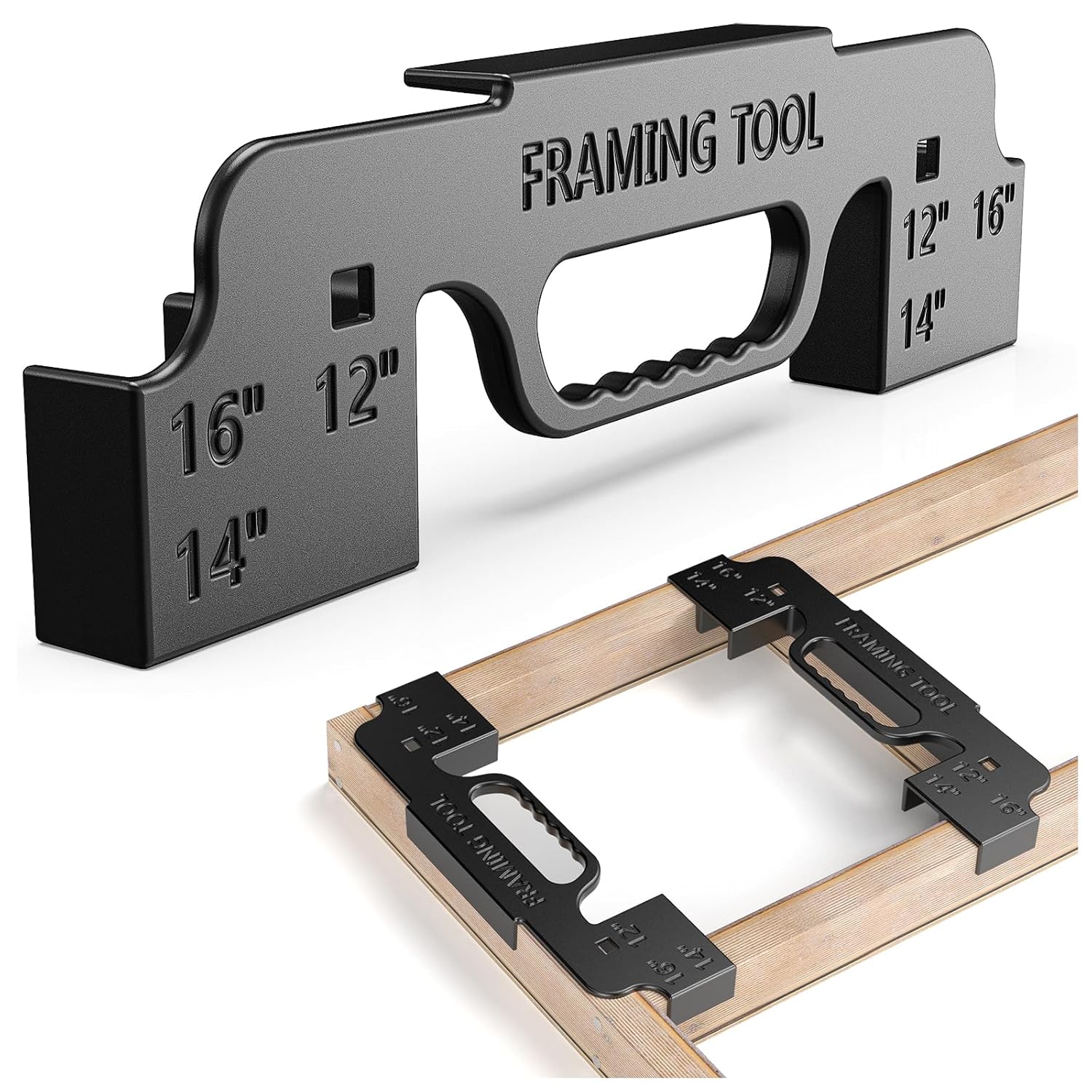

3 in 1 Metal Framing Tools 16 in on Center Framing Layout Tool

In this review the 3 in 1 Metal Framing Tools 16 in on center framing layout tool is evaluated as a practical layout jig for carpenters and DIYers who need reliable spacing without constant measuring. The single biggest reason to buy is its time-saving integrated 12/14/16 in spacing that lets users set multiple stud centers quickly; the cast aluminum construction keeps the tool light enough to carry while remaining rigid for accurate placement. This review focuses on real use in wall, roof and floor framing where speed and repeatable accuracy matter.

Key Features

• Integrated 3-in-1 spacing: Provides 12, 14 and 16 in centers in a single tool so you can switch spacing without multiple jigs and cut layout time significantly.
• Cast aluminum construction: The sturdy aluminum body resists rust, stays dimensionally accurate and keeps weight low for carrying around the jobsite.
• Engraved size markings: Clearly engraved numbers on the surface make it easy to confirm the selected spacing at a glance and reduce layout errors.
• Butt joint locating holes: Built-in holes help align butt joints safely so hands can stay clear of the nailing zone and speed up repetitive tasks.
• Simple mounting and use: The tool mounts to the top plate, accepts studs and holds spacing while you fasten, which streamlines multi-stud installs.

Who It's For

This tool is best for carpenters, framers and experienced DIYers who regularly build walls, roofs or floors and want to reduce measuring time. The integrated 12/14/16 in options are useful on projects that require mixed spacing or when switching between drywall and other sheathing materials.

It is less suitable for someone who only does very occasional one-off projects and prefers an inexpensive disposable jig, or for tasks that require spacing outside the 12-16 in range. Users needing laser-accurate layout for finish carpentry should pair this jig with their usual verification methods.

Pros & Cons

Pros

• Durable cast aluminum construction gives a long service life while staying lightweight on the job.
• Three spacing options in one tool reduce the need to carry multiple jigs and speed repetitive layout work.
• Engraved markings and locating holes make alignment faster and safer during nailing operations.

Cons

• Limited to 12, 14 and 16 in centers, so it does not cover uncommon spacing sizes without alternate tooling.

Specifications

Product type	Framing layout tool
Spacing options	12 in / 14 in / 16 in
Material	Cast aluminum
Typical applications	Walls, roofs, floors, ladders
Markings	Engraved size numbers
Benefit	Time and labor saving

Our Verdict

The 3 in 1 Metal Framing Tools 16 in on center framing layout tool is a practical, value-oriented jig for pros and serious DIYers who want faster, repeatable stud layout without bulky or multiple fixtures. Its cast aluminum build and engraved markings make it durable and easy to use, and the built-in 12/14/16 in options will speed routine framing tasks, making it a good long-term addition to a framing toolkit.

Frequently Asked Questions

Can this tool be used for roof rafters?
Yes; the tool is suitable for roof framing where standard rafter spacing matches the 12/14/16 in centers provided.

Will it rust if left on the jobsite?
No; cast aluminum construction resists rust and is easy to clean after use.

Is the tool easy to carry between jobs?
Yes; the lightweight aluminum makes it simple to transport on ladders or around a site while remaining sturdy in use.
