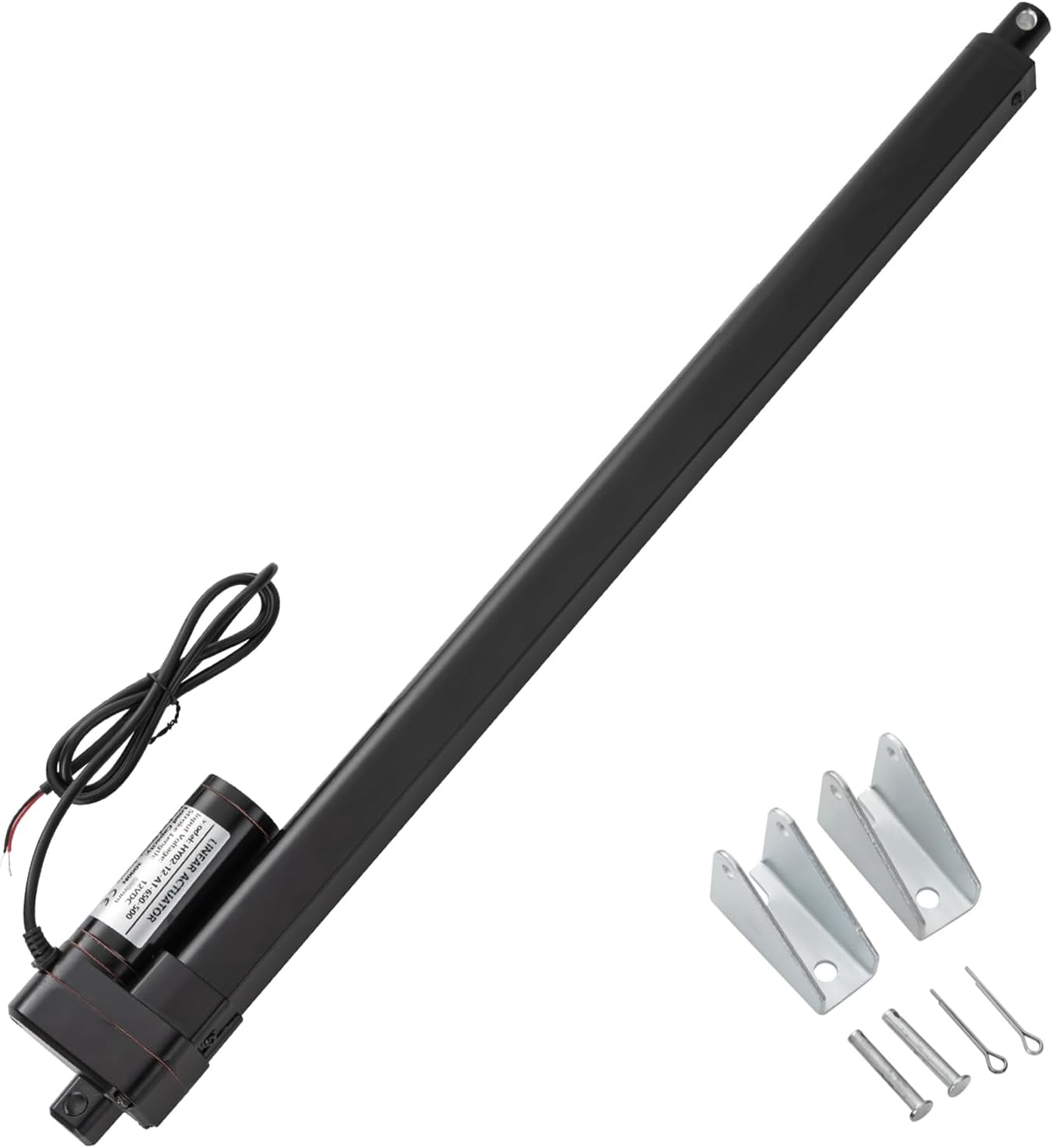

30 in Long Stroke 660lbs Linear Actuator Kit - Heavy Duty 12V

In this review of the 30 in Long Stroke 660lbs Linear Actuator Kit the bottom line is clear: it is a heavy duty, weatherproof electric actuator suited for industrial lift tasks and outdoor installations where torque and durability matter most. Reviewers praise the robust aluminum construction and IP65 protection that allow this 12V actuator to handle harsh environments, while a built-in limit switch and self-locking motor provide reliable, position-holding operation. The biggest reason to consider it is the combination of a long 30 in stroke and a 660 lbs (3000N) rated push/pull capacity for projects that need extended travel and stable force.

Key Features

• Long stroke: The 30 in stroke gives 66 in extended length, useful for applications that require large travel without complex linkages.
• Durable build: An aluminum body and IP65 protection class make the actuator resistant to dust and water spray for outdoor use.
• Built-in limit switch: The internal limit switch and self-locking motor stop movement at end points and hold load without continuous power.
• Power and torque: Rated for up to 660 lbs (3000N) push/pull with a 12V DC supply and a maximum current draw near 5A for heavy loads.
• Quiet operation: The unit runs under 50 dB in normal conditions, keeping motor noise low in living or workspaces.
• Wide temperature range: Rated for operation from -20 C to +60 C, broadening use in varied climates.

Who It's For

The actuator is aimed at DIYers, fabricators and installers who need a long-travel linear motion device for outdoor or industrial projects such as solar trackers, utility vehicle dump beds, lift frames, or electric furniture where ruggedness and a long stroke are priorities. Its IP65 protection and aluminum construction suit installations exposed to weather.

It is less suitable for applications requiring high cycle speeds or where the maximum claimed capacity is critical without prior testing; several customers reported lower-than-expected lift capacity and mixed results on functionality, so engineers who need guaranteed performance at the 660 lbs rating should validate with a test rig or choose a unit with a higher verified capacity.

Pros & Cons

Pros

• Solid aluminum construction with IP65 protection for outdoor durability.
• Long 30 in stroke producing 66 in extended length for large travel applications.
• Built-in limit switches and self-locking motor for position holding and safety.
• Relatively quiet operation below 50 dB for installations near living spaces.

Cons

• Some users report mixed functionality and inconsistent delivery of the claimed 660 lbs capacity, so heavy-load applications should be verified in practice.
• No high-speed performance; the no-load speed is 0.2 in/sec which may be slow for rapid actuation needs.

Specifications

Our Verdict

The 30 in Long Stroke 660 lbs linear actuator kit is a practical choice when long travel, weather resistance and a self-locking motor are required; it represents good value for outdoor and industrial lift roles. Buyers should test its load capability for critical heavy-duty uses and accept a relatively slow travel speed, but for many solar, bed, sofa and lift applications this actuator delivers reliable, low-noise operation and robust construction.

Frequently Asked Questions

Can this actuator be used outdoors?
Yes, the actuator has an IP65 protection rating and an aluminum body, making it suitable for outdoor installations exposed to dust and water spray.

What is the travel speed?
The no-load speed is about 0.2 in/sec (5 mm/s), so it is designed for steady, not rapid, actuation.

Is the 660 lbs rating guaranteed?
The specification lists 660 lbs (3000 N), but several users reported lower practical lift capacity, so verify with a test under your exact setup before relying on the maximum rating.
