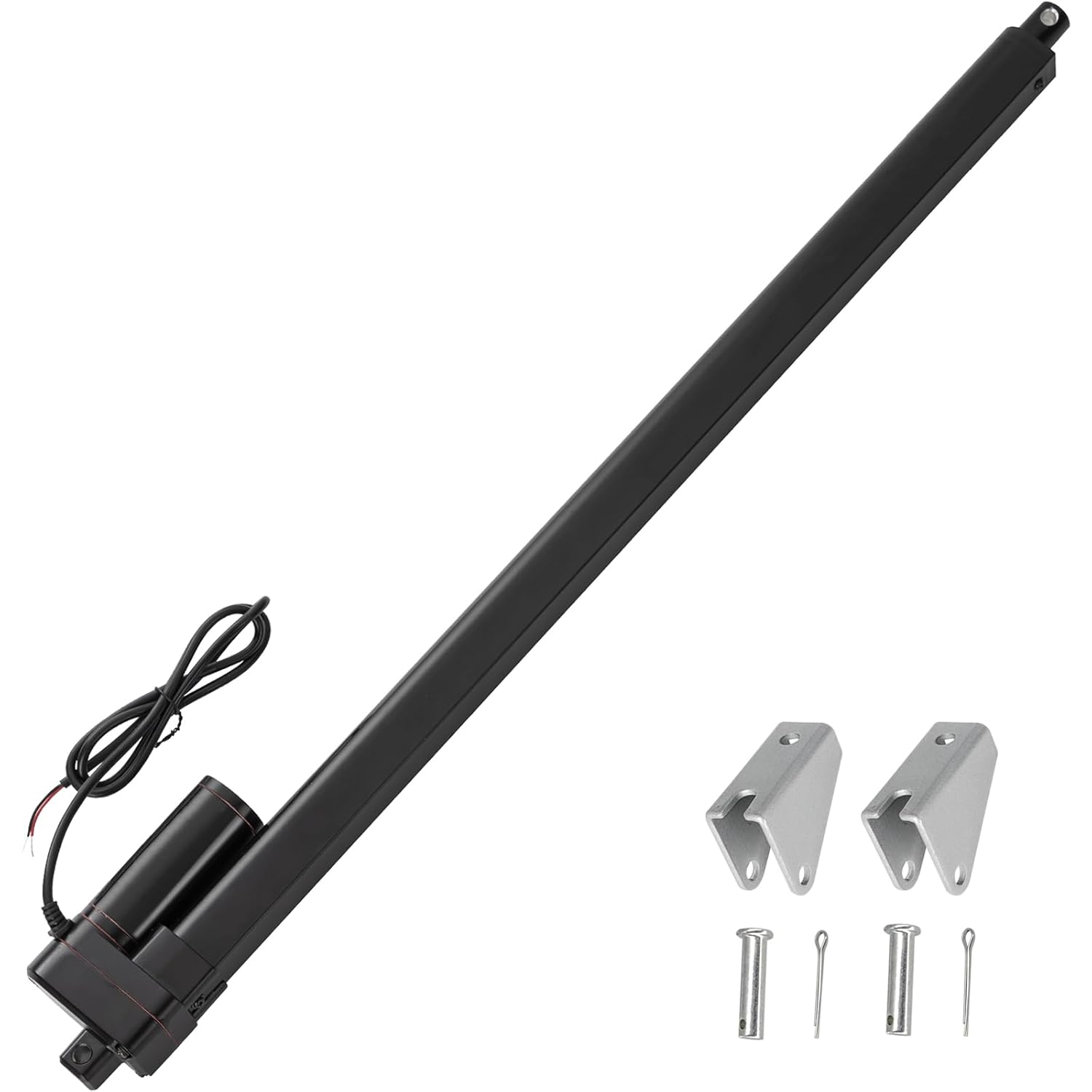

30 Inch Stroke Linear Actuator 12V Heavy Duty 440lbs - Waterproof

In this review of the 30 inch stroke linear actuator, the bottom line is simple: this is a robust 12V electric actuator built for heavy lifting and outdoor use. It is best for hobbyists, light industrial projects and anyone who needs reliable linear motion up to 440lbs of push force; the single biggest reason to buy is the combination of a long 30' stroke and an IP65 waterproof rating that keeps it working in exposed environments. The actuator's built-in limit switches and self-locking motor make it straightforward to integrate into lifts, solar trackers and adjustable furniture.

Key Features

• Stroke length: The 30' (750mm) stroke gives long travel for applications such as sun trackers and adjustable frames where reach matters.
• High push force: Rated to 440lbs (2000N) push capacity, it handles heavy loads and can move structures customers reported lifting easily.
• Weather protection: IP65 protection allows outdoor use without immediate concern for dust or spray, extending deployment options.
• Self-locking and limit switches: Built-in limit switches and self-locking motor let the actuator halt automatically at end positions and hold without continuous power.
• Quiet operation: Plastic gear train and aluminum housing keep noise below 50dB and provide a stable, corrosion-resistant assembly.
• Plug-and-play package: Ships with two mounting brackets so the actuator can be mounted and tested quickly on new builds.

Who It's For

This actuator suits DIY fabricators, solar tracker builders, and small workshop or light industrial uses where a long stroke and significant push capacity are required. It works well for adjustable furniture such as lifts, beds or sofas where a quiet, self-locking motor and automatic stops are useful.

Those who need very high speed, ultra-precise closed-loop positioning, or integrated controllers should look elsewhere; this model is focused on reliable linear force and protection rather than advanced motion control features.

Pros & Cons

Pros

• Strong push capacity up to 440lbs that customers praise for real-world lifting tasks.
• IP65 waterproof rating and aluminum construction for outdoor durability.
• Self-locking motor and built-in limit switches simplify installation and safe operation.
• Relatively quiet operation due to plastic gears and stable four-corner base design.

Cons

• Moderate speed (0.31"/sec) may be slow for applications that need rapid actuation.
• Maximum current draw of 5A requires an appropriate 12V power source and wiring consideration.

Specifications

Voltage	DC 12V
Stroke length	30' (750mm)
Retracted / Extended	36' (900mm) / 66' (1650mm)
No-load speed	0.31"/sec (8mm/s)
Maximum push force	440lbs (2000N)
Maximum current	5A
Protection class	IP65

Our Verdict

The 30 inch stroke 12V linear actuator is a sensible, value-oriented choice for users who need long travel and substantial push force in outdoor or workshop projects. Its waterproof housing, self-locking motor and included brackets reduce setup time, and the quiet, sturdy construction makes it a reliable workhorse for lifts, trackers and adjustable furniture where speed is not the highest priority.

Frequently Asked Questions

Can this actuator be used outdoors?
Yes. The actuator is rated IP65, meaning it is protected against dust and low-pressure water spray and is suitable for many outdoor installations.

What power does it require?
It runs on DC 12V and may draw up to 5A under maximum load, so use a power supply and wiring sized for that current.

Does it hold position when power is removed?
Yes. The actuator uses a self-locking motor and built-in limit switches to hold position and stop automatically at end points.
