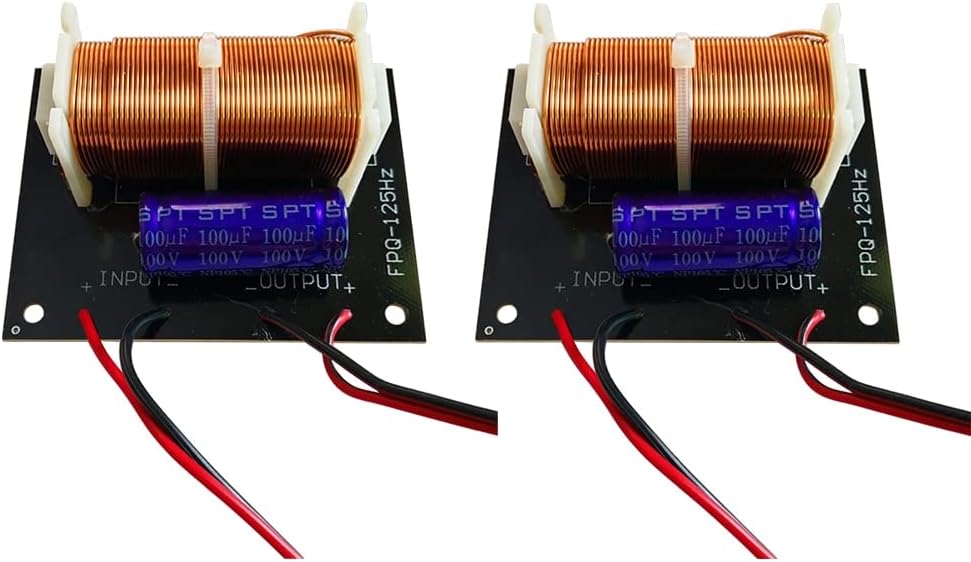

300W Subwoofer Crossover Filter 125Hz - Deep Bass Divider

In this review of the 300W Subwoofer Crossover Filter 125Hz, the verdict is simple: this is a practical crossover board for DIYers and installers who want cleaner low-end performance from a single subwoofer. It is aimed at people fitting 5-12 in subwoofers who need a robust passive divider that handles higher power and emphasizes deep bass. The single biggest reason to buy is the combination of a high-inductance coil and a large current capacitor that together deliver stronger, more focused low-frequency output around the 125Hz crossover point.

Key Features

• 61mm high temperature wire: the large inductance coil improves low-frequency control and helps deliver tighter, deeper bass from compatible subwoofers.
• 18mm large current capacitor: the audio-grade horizontal spindle electrode capacitor is sized to pass strong low-frequency currents without obvious distortion.
• 125Hz crossover point: the fixed frequency divider makes it easy to integrate a subwoofer into systems where the woofer should be crossed over at 125Hz.
• 300W maximum power handling: the board can handle substantial power when paired with adequate amplification and properly rated drivers.
• Compact footprint: the L88mm x W70mm x H33mm board fits into many enclosure builds or mounting locations without taking excessive space.
• Sold as a pair: two crossover boards are included so users can outfit dual subwoofers or have a spare for future builds.

Who It's For

The 300W crossover is best for hobbyists, car audio tuners, and small installers using 5-12 in subwoofers who want a simple passive solution to tighten low-end response. It suits users who prefer a fixed 125Hz slope and need hardware rated to handle higher current, benefiting from the heavy gauge winding and large capacitor.

It is not ideal for those requiring adjustable crossover frequency, active DSP control, or who rely on very low-powered amplifiers; the product notes caution about pairing it with low power amps. If you need a variable crossover or integrated phase/delay control, an active solution would be a better choice.

Pros & Cons

Pros

• Robust low-frequency performance thanks to the 61mm high temperature wire and high inductance design.
• Audio-grade 18mm large current capacitor reduces strain at high bass levels and helps maintain clarity.
• Clear 125Hz crossover and 12dB/oct slope make integration with midwoofers straightforward.
• Pair included provides value for dual-subwoofer setups or backups.

Cons

• Fixed crossover frequency and slope limit flexibility compared with adjustable or DSP crossovers.
• Warning about low power amplifiers means this works best with adequately powered systems.

Specifications

Impedance	4-8 ohm
Maximum power	300W
Frequency point	125Hz
Cross slope	12dB / oct
Board size	L88mm x W70mm x H33mm
Net weight	192g per piece
Pack contents	2pcs x Crossover Filter Board

Our Verdict

The 300W Subwoofer Crossover Filter is a straightforward, well-built passive divider that delivers stronger low-frequency control for 5-12 in subwoofers. It offers good value for installers and DIYers who need a fixed 125Hz crossover with robust components, though those who need tuning flexibility or are using low-power amps should consider alternatives. Overall, it is a solid choice for improving bass integration in suitably powered systems.

Frequently Asked Questions

Can this crossover be used with any 5-12 in subwoofer?
Yes, it is designed for 5-12 in subwoofers with 4-8 ohm impedance, but ensure your amplifier can supply adequate power for best results.

Is the crossover slope adjustable?
No, the board uses a fixed 125Hz crossover with a 12dB/oct slope and does not offer adjustable frequency or slope settings.

How many pieces are included?
The package includes 2 crossover filter boards, allowing for dual-sub setups or a spare.
