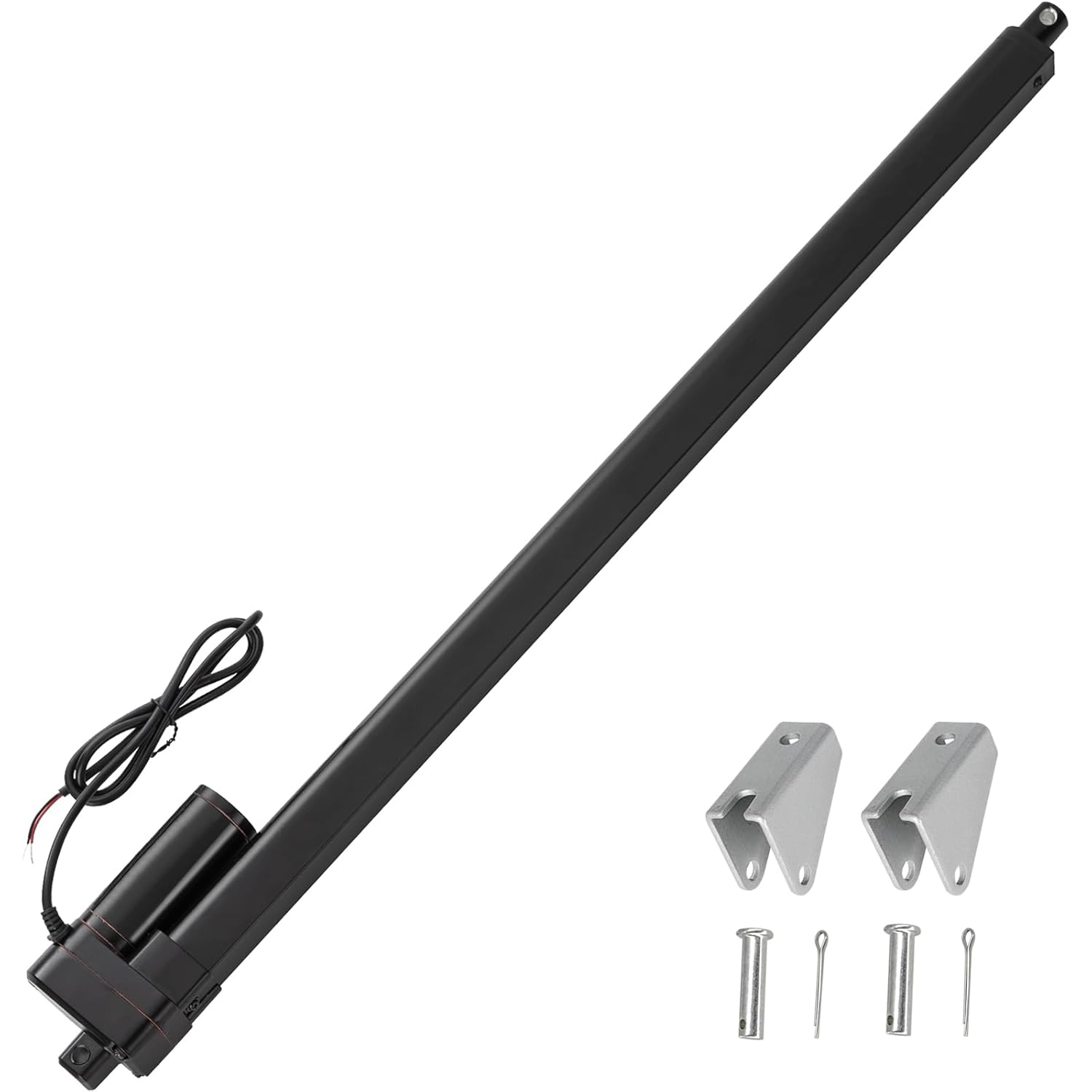

32 Inch Stroke Linear Actuator 12V Heavy Duty 440lbs - Waterproof

Our review of the 32 in Stroke Linear Actuator makes clear who will benefit most: users needing a long-stroke, heavy-duty 12V actuator with reliable holding power for outdoor or workshop projects. The single biggest reason to buy is its combination of a long 32 in stroke and a 440 lb (2000 N) push capacity plus IP65 protection, which lets it handle sizable loads and outdoor exposure without complex sealing. It performs as a workhorse rather than a precision speed device, and the built-in limit switches and self-locking motor deliver consistent stopping and holding under load.

Key Features

• 32 in stroke: Provides 800 mm of travel for long-reach applications such as sun trackers, hatches, or adjustable platforms.
• 440 lb push capacity: Delivers up to 2000 N of force so it can move heavy components and support robust lifting tasks.
• IP65 waterproofing: Seals against dust and jets of water so the actuator can be used outdoors or in damp environments.
• Built-in limit switches and self-locking: Automatically stops at end positions and holds load without continuous power, improving safety and reliability.
• Quiet operation: Plastic gearing and aluminum alloy body keep noise under 50 dB for less disruptive installation in homes or workshops.
• Included mounting brackets: Ships with two brackets for straightforward installation and four-corner fixation for stability.

Who It's For

This actuator is best for DIYers, fabricators, and small industrial users who need a long travel, high-force linear motion solution that tolerates outdoor conditions. It suits electric beds, solar trackers, adjustable platforms, or booths where holding force and a long stroke matter more than fast cycle times.

It is not ideal for applications demanding fast actuation or millimeter-level positional control; users needing high-speed operation or integrated position feedback should look for actuators with higher no-load speeds or encoder options. Also, projects that require push and pull parity beyond the specified values should consider more symmetrical units.

Pros & Cons

Pros

• Strong lift capacity with 440 lb push rating provides reliable force for heavy moving parts.
• Long 32 in stroke gives extended travel without extra linkages or telescoping assemblies.
• IP65 protection and sturdy aluminum construction make it suitable for outdoor installations.
• Quiet, self-locking motor and built-in limit switches simplify installation and improve safety.

Cons

• Relatively slow speed at 0.31 in/sec, so cycles take time compared with faster actuators.
• Pulling capacity is lower than pushing capacity, so designs must account for asymmetric force.

Specifications

Voltage	DC 12V
Stroke length	32 in (800 mm)
Retracted / Extended	38 in (950 mm) / 70 in (1750 mm)
No-load speed	0.31 in/sec (8 mm/s)
Maximum push load	440 lb (2000 N)
Maximum current draw	5 A
Protection class	IP65

Our Verdict

The 32 in Stroke Linear Actuator is a practical choice for users who need long travel and high push capacity in a compact, weather-resistant package. It offers good value where holding power, durability, and outdoor compatibility matter, but prospective buyers should accept its modest speed and asymmetric push/pull limits when planning installations.

Frequently Asked Questions

Is this actuator suitable for outdoor use?
Yes. The IP65 rating and aluminum alloy body make it suitable for outdoor and damp environments when installed correctly.

Can it stop at intermediate positions?
Yes. Built-in limit switches and the self-locking motor allow it to stop and hold at intermediate positions safely.

What speed can I expect under no load?
The no-load speed is about 0.31 in/sec (8 mm/s); expect slower movement under heavy loads.
