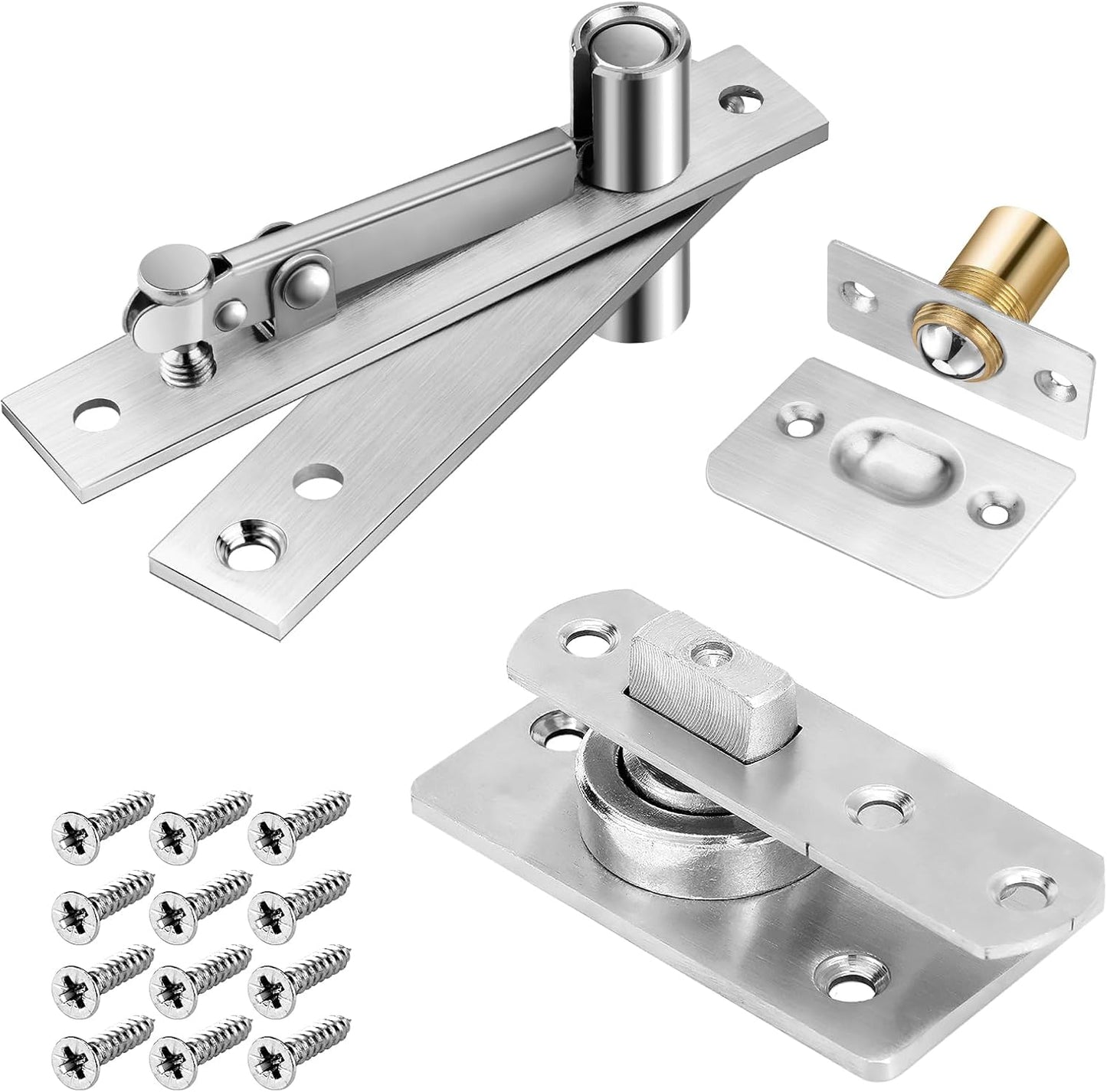

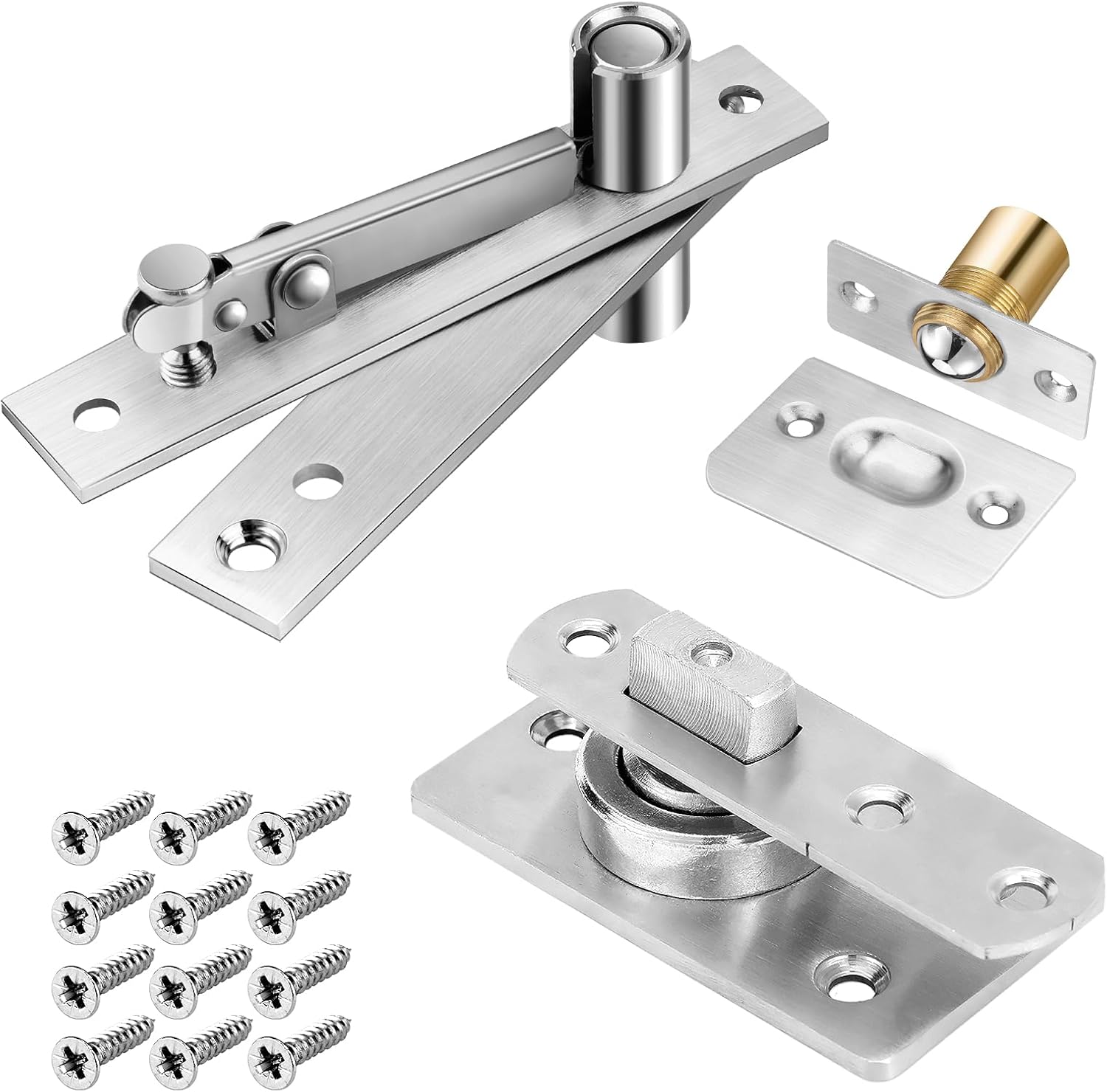

330 LBS Pivot Hinge Set with Door Catch for Large & Heavy Wood Doors

In this review of the 330 LBS Pivot Hinge Set with Door Catch, the bottom line is simple: this kit is built for heavy wood doors and bookcase doors that need a discreet, reliable pivot solution. The hinge's standout feature is the built-in ball bearing design, which carried a fully loaded bookcase door through repeated cycles with minimal noise and no binding. Installers who want a top-mounted pivot that reduces sagging will appreciate the flat base convenience that removes the need for a bottom slot, though attention to clearance at the top hinge is necessary.

Key Features

• Load capacity: Supports up to 330 lbs so large, heavy wood doors remain stable and operable under substantial weight.
• Built-in ball bearings: Provide smooth, quiet operation that reduces friction and prevents squeaks even when the door is fully loaded.
• Flat base design: Eliminates the need for a bottom slot and simplifies alignment and installation on flat floors or shelves.
• Top-mounted stability: Mounting at the top distributes weight evenly to minimize sag and maintain consistent door swing over time.
• Installation resources: Comes with diagrams and a step-by-step video tutorial to guide placement and ensure accurate fitment.
• Quality control and service: Each hinge is checked before shipping and the brand offers responsive customer support within 24 hours.

Who It's For

This pivot hinge set is best for woodworkers, cabinetmakers, and homeowners fitting heavy bookcase doors, pantry doors, or hidden passageway doors where a concealed, heavy-duty pivot is needed. The high load rating and ball bearing action suit applications where doors carry shelves of books or dense materials.

It is less suited to very small, lightweight doors where a standard butt hinge is cheaper and simpler, or installations with extremely tight top clearance where the top hinge may need extra space; measure the hinge clearance carefully before purchase.

Pros & Cons

Pros

• Excellent load capacity lets fully loaded bookcase doors open smoothly without strain.
• Quiet, low-friction operation from built-in ball bearings reduces noise over long-term use.
• Flat base design speeds installation by removing the need for a bottom slot and complex routing.
• Detailed instructions and video support help most installers achieve a correct fit.

Cons

• Build quality feedback is mixed; some users report uneven fabrication so inspect parts on arrival.
• Top hinge clearance can require extra space and careful measurement in confined installations.

Specifications

Brand	HBL
Load-bearing capacity	Up to 330 lbs
Design feature	Built-in ball bearings for smooth operation
Base style	Flat base - no bottom slot required
Typical applications	Bookcase doors, pantry doors, hidden passageways
Installation aid	Diagrams, measurements and step-by-step video
Customer service	Quality control before shipping; 24 hour response

Our Verdict

The 330 LBS pivot hinge set is a practical, value-oriented choice for anyone fitting large, heavy wood doors who needs a concealed pivot with reliable load handling and quiet performance. It delivers clear benefits for bookcase and pantry doors thanks to its ball bearing design and flat base convenience; just inspect received parts for fabrication issues and plan for top-hinge clearance during installation.

Frequently Asked Questions

Can this hinge really support a fully loaded bookcase?
Yes, the hinge is rated up to 330 lbs and the built-in ball bearings maintain smooth operation under heavy loads.

Do I need a bottom slot in the floor?
No, the upgraded flat-base design removes the need for a bottom slot so you can screw the hinge to a flat surface.

Are installation guides included?
The product includes diagrams, measurements and a step-by-step video tutorial to guide placement and mounting.
