34 Inch Long Stroke Linear Actuator 24V Heavy Duty - 660lbs Lift

Our review of this 34 in long stroke linear actuator finds it best for projects that need a long travel, solid load capacity and simple electric control. The unit stands out because it delivers a full 34 in stroke with a 660 lb (3000 N) rated thrust on a 24V DC platform, making it a practical choice for industrial lifts, solar trackers and heavy furniture adjustments where long reach and single-axis motion matter most.

Key Features

• 24V DC power: Provides a common, serviceable voltage for mobile and fixed installations that keeps wiring and motor options simple.
• 34 in stroke: Offers long linear travel up to 34 in (850 mm) which reduces the need for secondary linkages in many lift and tilt applications.
• 660 lb maximum load: Handles heavy loads up to 660 lbs (3000 N), suitable for lifting beds, sofas, small platforms and solar panels.
• IP65 waterproof rating: Seals the actuator against dust and low-pressure water jets so it can be used outdoors or in damp industrial settings.
• Built-in limit switches and self-locking: Stops automatically at travel ends and holds position without continuous motor power for safer and simpler control.
• Stable and quiet operation: Plastic gear train reduces noise to below 50 dB and offers corrosion resistance for longer quiet service.

Who It's For

This actuator is aimed at hobbyists and professionals who need a long-stroke, high-thrust linear actuator on a 24V system - for example installers of solar trackers, fabricators of electric beds or sofas, and builders of small industrial lifting mechanisms. Its IP65 rating and quiet plastic gears make it suitable for outdoor use and indoor environments where noise should be minimized.

Customers who need continuous duty operation or faster actuation should look elsewhere: the unit is specified with a 10% duty cycle and a no-load speed of about 0.2 in/sec (5 mm/s), so it is not intended for high-frequency or high-speed cycling applications.

Pros & Cons

Pros

• Long 34 in stroke provides large single-axis travel without extra hardware.
• High 660 lb (3000 N) load capacity suitable for many heavy-lift tasks.
• IP65 waterproofing and quiet plastic gears make it versatile for indoors or outdoors.

Cons

• 10% duty cycle limits continuous operation and frequent repetitive cycles.
• Top speed is modest at about 0.2 in/sec, so it is slow for fast-moving mechanisms.

Specifications

Our Verdict

The 34 in long stroke 24V linear actuator is a solid choice when long travel and high thrust are primary requirements; its 660 lb capacity, IP65 protection and built-in limit switches deliver reliable, low-noise operation for occasional duty installations like beds, sofas, small lifts and solar trackers. It represents good value when slower speed and a 10% duty cycle match the intended use.

Frequently Asked Questions

Can this actuator be used outdoors?
Yes. The actuator has an IP65 rating, which protects against dust and low-pressure water jets but avoid full immersion.

What is the operating speed?
No-load speed is approximately 0.2 in/sec (5 mm/s); expect slower speed under heavy load.

Does it include mounting hardware?

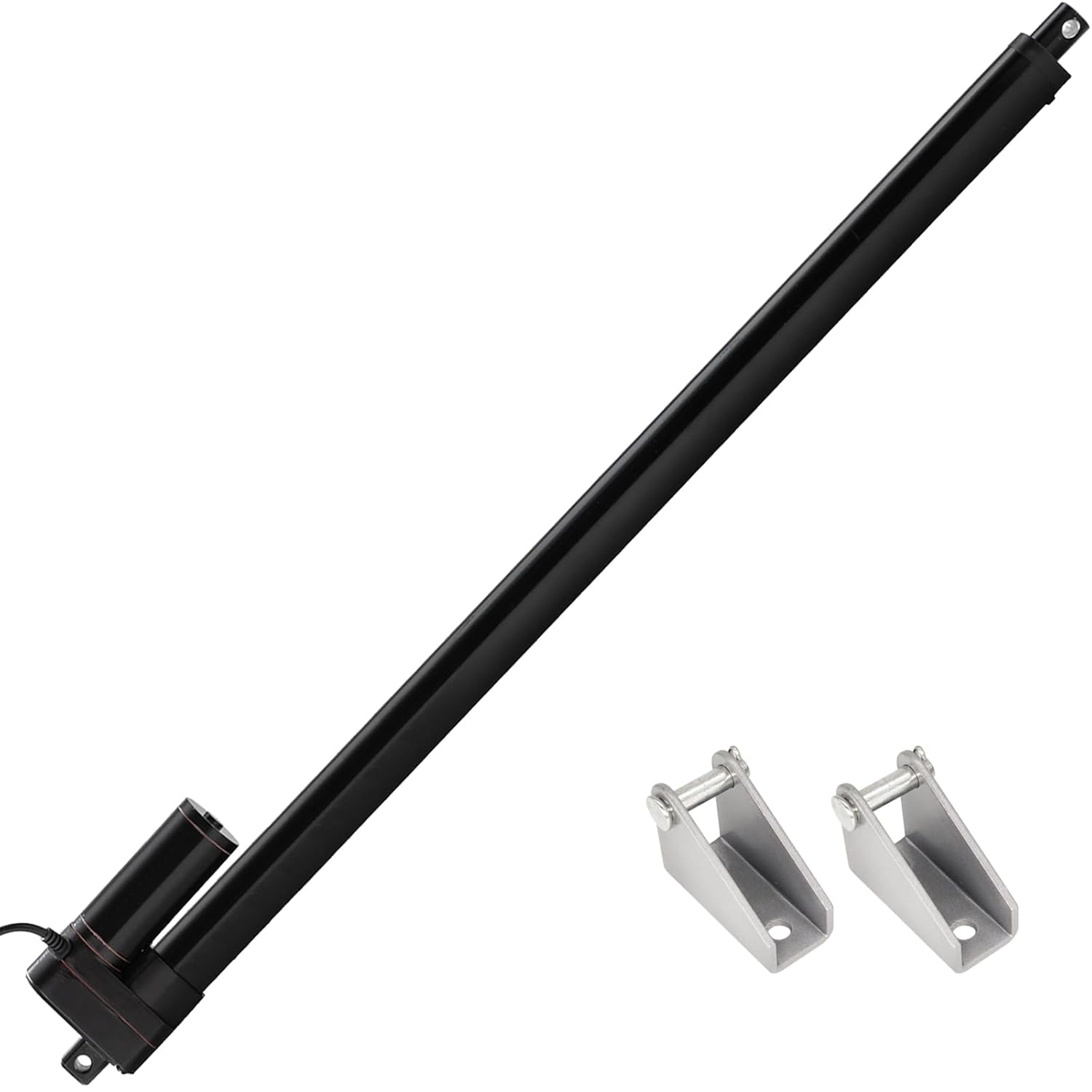

The package includes the actuator and two mounting brackets so it is ready for basic installation.
