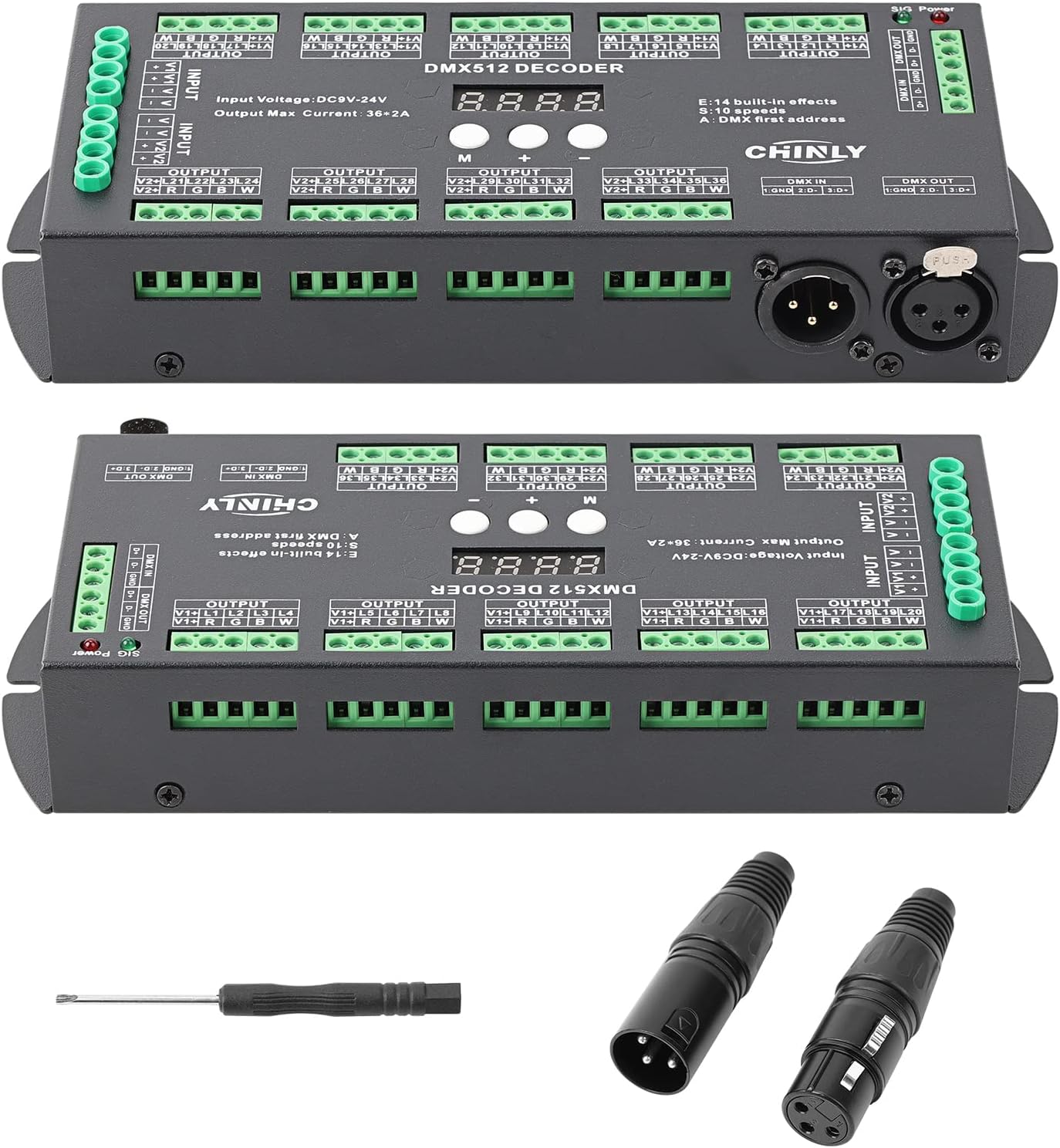

36 Channel DMX Decoder 72A RGBW LED Controller - 36CH DMX512 Decoder

Our review of the 36 Channel DMX Decoder examines whether this 36CH DMX512 constant decoder is a practical choice for lighting technicians and hobbyists who need dense channel control. The bottom line: it is best for users who need many individual DMX channels in a compact box and expect reliable 0-100% dimming across single color, RGB or RGBW LED strips. The decoder's support for the international DMX512 protocol, a digital display for address setting, and a strong 2A per channel output make it a clear pick when channel count and fine gray-scale control matter.

Key Features

• 36 output channels: Provides individual control for up to 36 channels, useful for complex lighting rigs or multi-zone LED strips.
• 2A per channel output: Each channel can drive up to 2A, offering a maximum combined current of 72A for high-power setups.
• Wide DC input: Accepts DC9V to DC24V so it works with common 12V and 24V LED installations without an external converter.
• 256 gray levels: 8-bit dimming yields smooth 0-100% fades and fine brightness control for color mixing and visual effects.
• Digital display and button addressing: An on-board digital display makes it straightforward to set DMX start addresses by button, avoiding guesswork during setup.
• Test patterns and rate control: Built-in 14 test patterns and 10 speed levels help verify channel output and troubleshoot installations before full programming.

Who It's For

This decoder is aimed at lighting professionals, stage technicians, and advanced DIYers who need dense DMX channel control in a single device and who run LED strips or fixtures at 12V or 24V. The large channel count is ideal for architectural accents, multi-zone strip installations, and fixtures that require per-channel control rather than grouped RGB outputs.

It is less suitable for users who only need a few channels, a plug-and-play RGB controller without DMX, or those unfamiliar with DMX addressing and wiring. For simple single-zone RGBW projects, a smaller decoder with fewer channels will be easier to configure.

Pros & Cons

Pros

• High channel density lets one device handle complex, multi-zone layouts.
• Solid power headroom with 2A per channel and up to 1728W at 24V for heavy loads.
• Clear digital display and button addressing speed up installation and reduce setup errors.

Cons

• Some users report mixed functionality in real-world installations, so expect to test thoroughly before final deployment.
• 36 DMX addresses per occupied device can require careful planning of DMX addressing on large networks.

Specifications

Model type	36 Channel DMX512 Constant Decoder
Input voltage	DC9V ~ DC24V
Output channels	36 channels, Constant PWM
Current per channel	2A max
Maximum load	864W (12V) / 1728W (24V)
Gray levels	256 (8-bit)
DMX input	DMX512/1990 via standard XLR-3

Our Verdict

The 36CH DMX decoder is a practical workhorse for anyone who needs many individually addressable DMX channels and solid per-channel power. It offers sensible voltage flexibility, a clear digital display for addressing, and extensive test modes that make commissioning easier. For multi-zone LED or stage lighting projects it represents good value when you want granular control without adding multiple smaller decoders.

Frequently Asked Questions

How is the DMX address set?
The start address is set using the on-board buttons and shown on the digital display for accurate DMX addressing.

What voltage do I need to run this decoder?
It accepts DC9V to DC24V and works with both 12V and 24V LED systems; choose appropriate power supplies sized for the total current draw.

Can it drive RGBW strips directly?
Yes, the 36 outputs can be used to drive single color, RGB, or RGBW LED strips, with each occupied device using 36 DMX addresses.
